8281I03.00A803

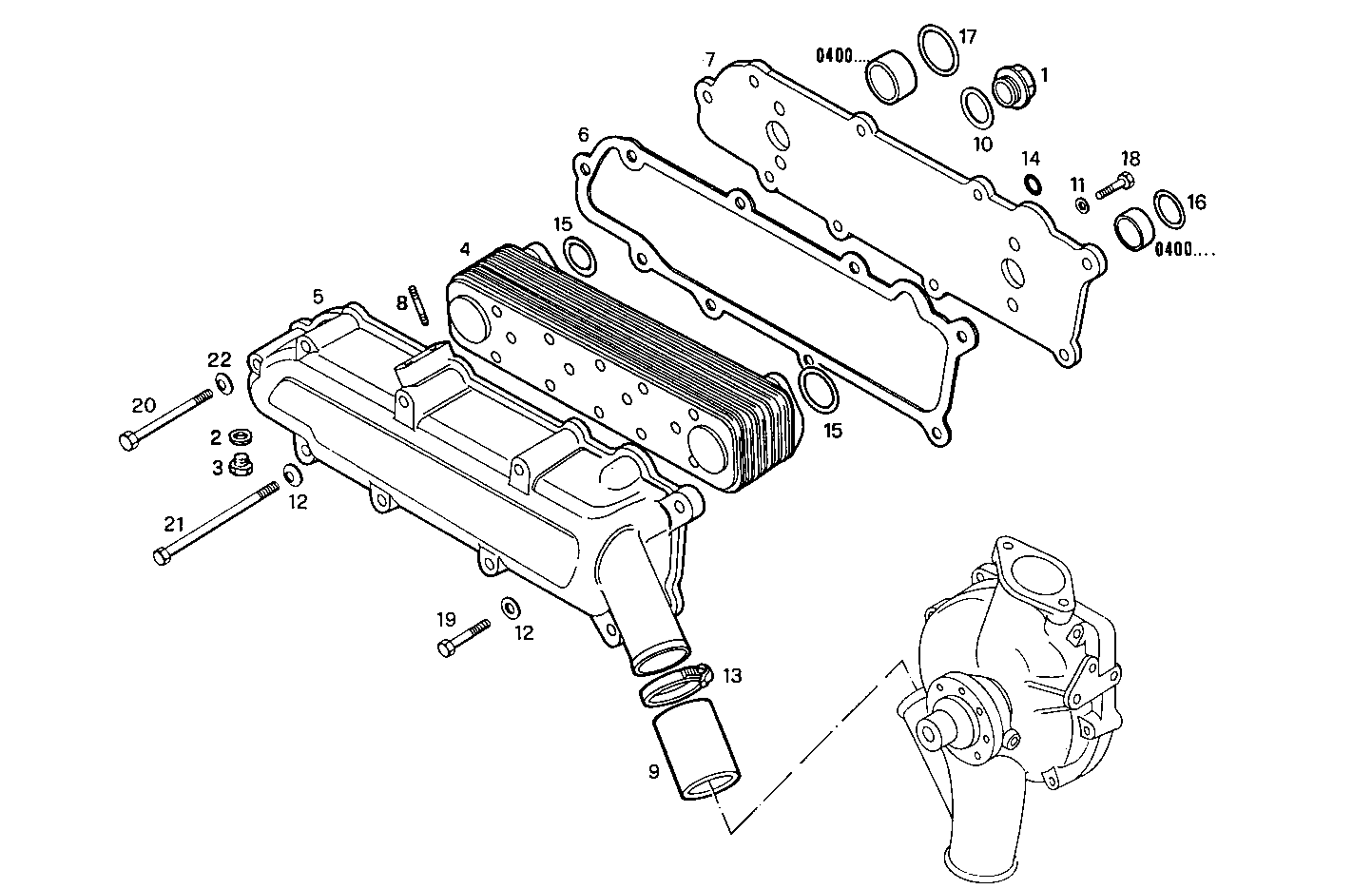

3100.020 OIL - WATER HEAT EXCHANGER

Iveco/FPT OIL - WATER HEAT EXCHANGER

Item Part number Description
1 4651357 THREADED PLUG
2 4712006 SEAL GASKET Ø10X15 MM
3 4753563 PLUG M10X1,5
4 98415302 OIL COOLER
5 4807522 HEAT EXANGER BODY
6 4863521 FLAT ENGINE GASKET
7 4692910 SPACER
8 13543121 STUD M8X16 MM
9 98421380 WATER HOSE
10 10265460 SEAL GASKET Ø42X49 MM SP=1,5 MM
11 11198071 SPRING WASHER Ø8X15 SP=1,4 MM
12 12646721 WASHER Ø8X20 MM
13 17764891 CLIP Ø40/60 MM
14 17281681 O-RING Ø13,9 MM SP=2,6 MM
15 14459081 O-RING Ø2,62X44,12 MM
16 17282781 O-RING Ø31,42 MM SP=2,62 MM
17 17283981 O-RING Ø50,4 MM SP=2,6 MM
18 16043221 HEXAGON BOLT M8X16 MM
19 16625734 HEXAGON BOLT M8X35
20 16044821 HEXAGON BOLT M8X80 MM
21 16046121 HEXAGON BOLT M8X1,25X100
22 11198171 SPRING WASHER Ø8,4 MM
