8281I03.00A803

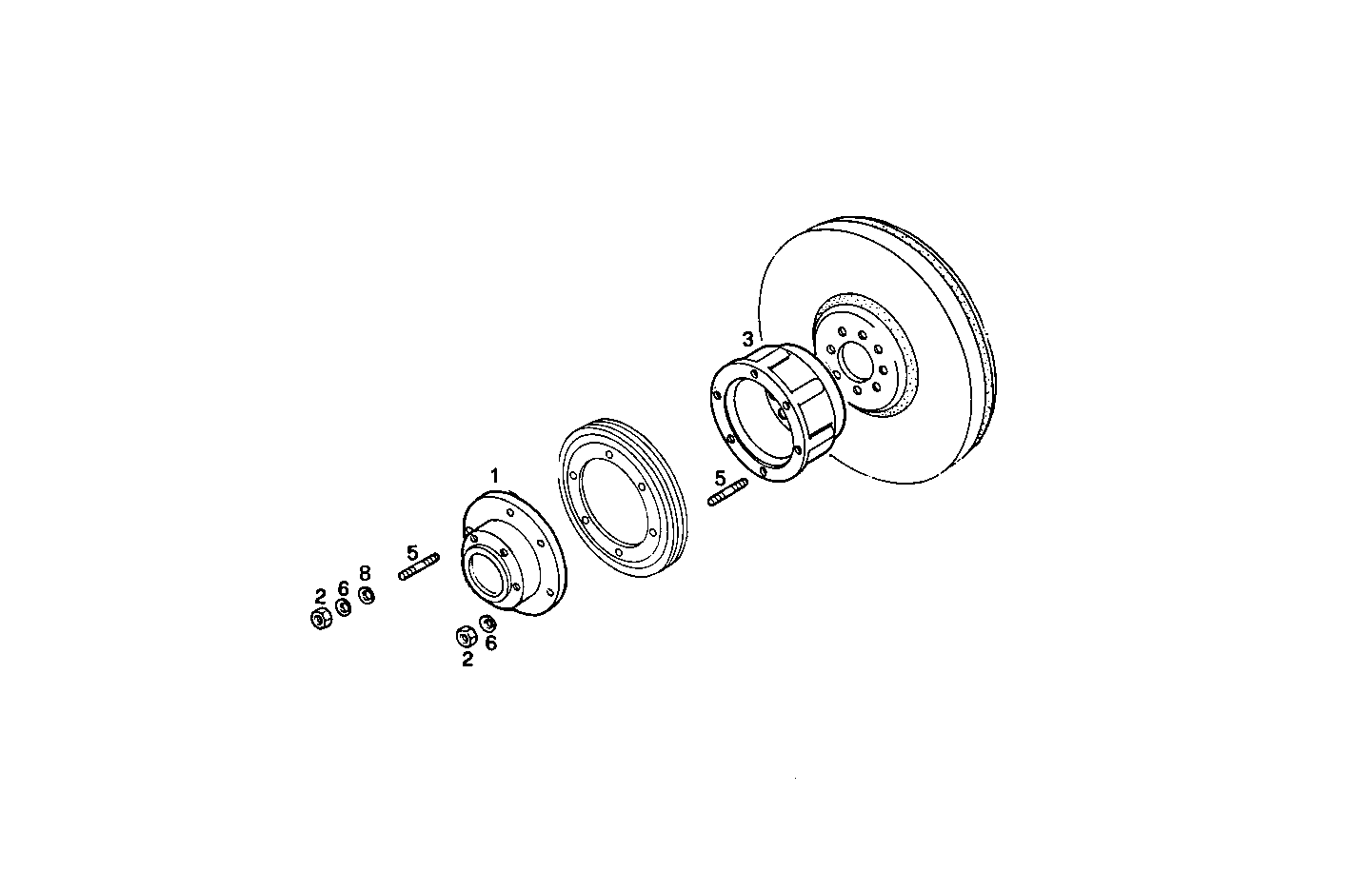

3230.003 FAN
| Item | Part number | Description |
|---|---|---|
| 1 | 4692449 | HUB |
| 2 | 17037931 | HEXAGON NUT M8X1,25 |
| 3 | 4678362 | SPACING BAR |
| 5 | 13543521 | STUD M8X16X25 MM |
| 6 | 11198171 | SPRING WASHER Ø8,4 MM |
| 8 | 12647001 | WASHER Ø8X25 MM |
