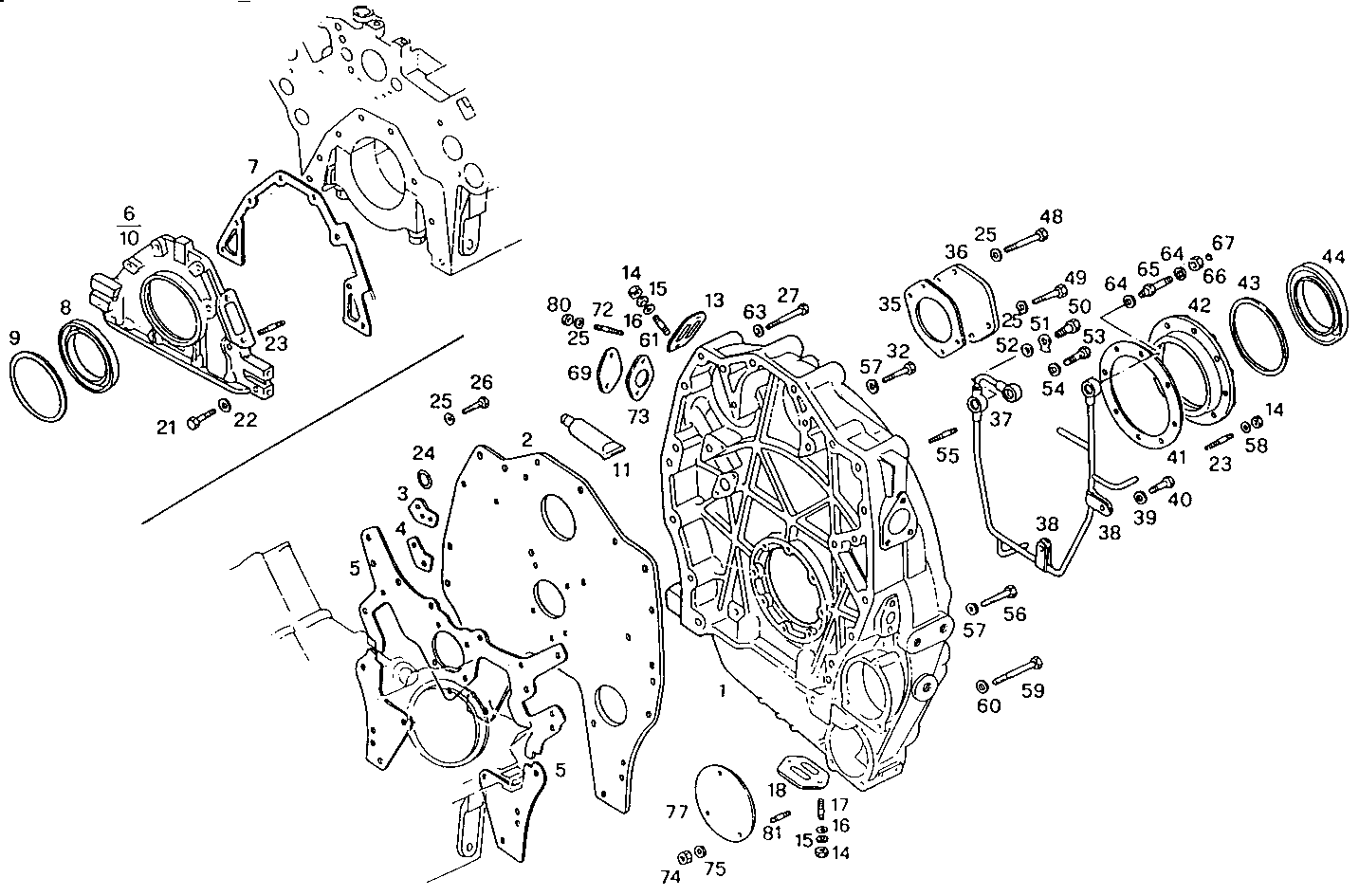

| Item |
Part number |
Description |
|
1 |
4736951 |
FRONT C.CASE COVER ASSY [from ...] |
|
2 |
4831136 |
PLATE |
|
3 |
4831139 |
PLATE LEFT |
|
4 |
4831138 |
PLATE RIGHT |
|
5 |
4804903 |
FLAT ENGINE GASKET |
|
6 |
99440755 |
FRONT C.CASE COVER ASSY [from 235184] |
|
7 |
4863506 |
FLAT ENGINE GASKET |
|
8 |
98499175 |
SHAFT SEAL |
|
9 |
4714245 |
RING [up to 235183] |
|
10 |
4702590 |
FRONT C.CASE COVER ASSY [up to 235183] |
|
11 |
1905685 |
ADHESIVE/STICKER LOCTITE |
|
13 |
4695921 |
COVER |
|
14 |
17037931 |
HEXAGON NUT M8X1,25 |
|
15 |
11198071 |
SPRING WASHER Ø8X15 SP=1,4 MM |
|
16 |
10519601 |
WASHER Ø8X17 MM |
|
17 |
13516521 |
STUD M8X12 MM |
|
18 |
4706083 |
COVER |
|
21 |
16605824 |
HEXAGON BOLT M8X35 MM |
|
22 |
12646701 |
WASHER Ø8X20 MM |
|
23 |
15343121 |
STUD |
|
24 |
14457181 |
O-RING Ø13,94 MM SP=2,62 MM |
|
25 |
11198371 |
SPRING WASHER Ø10X20 MM |
|
26 |
15970730 |
HEXAGON BOLT M10X25 MM |
|
27 |
15972521 |
HEXAGON BOLT M10X135 MM |
|
32 |
15541630 |
HEXAGON BOLT M12X100 MM |
|
35 |
4863492 |
GASKET |
|
36 |
4729849 |
COVER |
|
37 |
4687527 |
OIL LINE |
|
38 |
852410 |
FASTENING BRACKET |
|
39 |
13550301 |
WASHER Ø8,15 MM |
|
40 |
16042921 |
SCREW M8X10 |
|
41 |
4863494 |
FLAT ENGINE GASKET |
|
42 |
4729209 |
SUPPORT |
|
43 |
4714086 |
RING [up to 328262] |
|
44 |
98499176 |
SHAFT SEAL |
|
48 |
15970021 |
HEXAGON BOLT M10X1,25X155 MM |
|
49 |
15972321 |
HEXAGON BOLT M10X125 MM |
|
50 |
4503811 |
SCREW CONNECTOR M10X1,25 |
|
51 |
852409 |
LOCKING PLATE Ø10,5 MM |
|
52 |
10260160 |
SEAL GASKET Ø10X14 MM SP=1 MM |
|
53 |
11903717 |
SCREW CONNECTOR M8 |
|
54 |
10260060 |
SEAL GASKET Ø8X12X1 MM |
|
55 |
13453721 |
STUD M10X25X30 |
|
56 |
15543021 |
HEXAGON BOLT M12X105 MM |
|
57 |
12646921 |
WASHER Ø12X28 MM |
|
58 |
11198171 |
SPRING WASHER Ø8,4 MM |
|
59 |
15978030 |
HEXAGON BOLT M14X105 MM |
|
60 |
4604279 |
SPRING WASHER Ø14X32 MM SP=4 MM |
|
61 |
13543021 |
STUD M8X16X14 |
|
63 |
11198771 |
WASHER Ø12X30X3,4 MM |
|
64 |
10298360 |
SEAL GASKET Ø10X16 MM SP=1 MM |
|
65 |
4677753 |
SCREW CONNECTOR |
|
66 |
16979731 |
NUT M10X1,25 |
|
67 |
14452680 |
O-RING |
|
69 |
4718861 |
FLANGE |
|
72 |
13517221 |
STUD M8X12X30 MM |
|
73 |
98415923 |
FLAT ENGINE GASKET |
|
74 |
17038821 |
HEXAGON NUT M14 |
|
75 |
11200171 |
SPRING WASHER Ø15 MM |
|
77 |
4721732 |
COVER |
|
80 |
16100871 |
NUT |
|
81 |
11797421 |
STUD M14X20X35 |
