8281M32.10

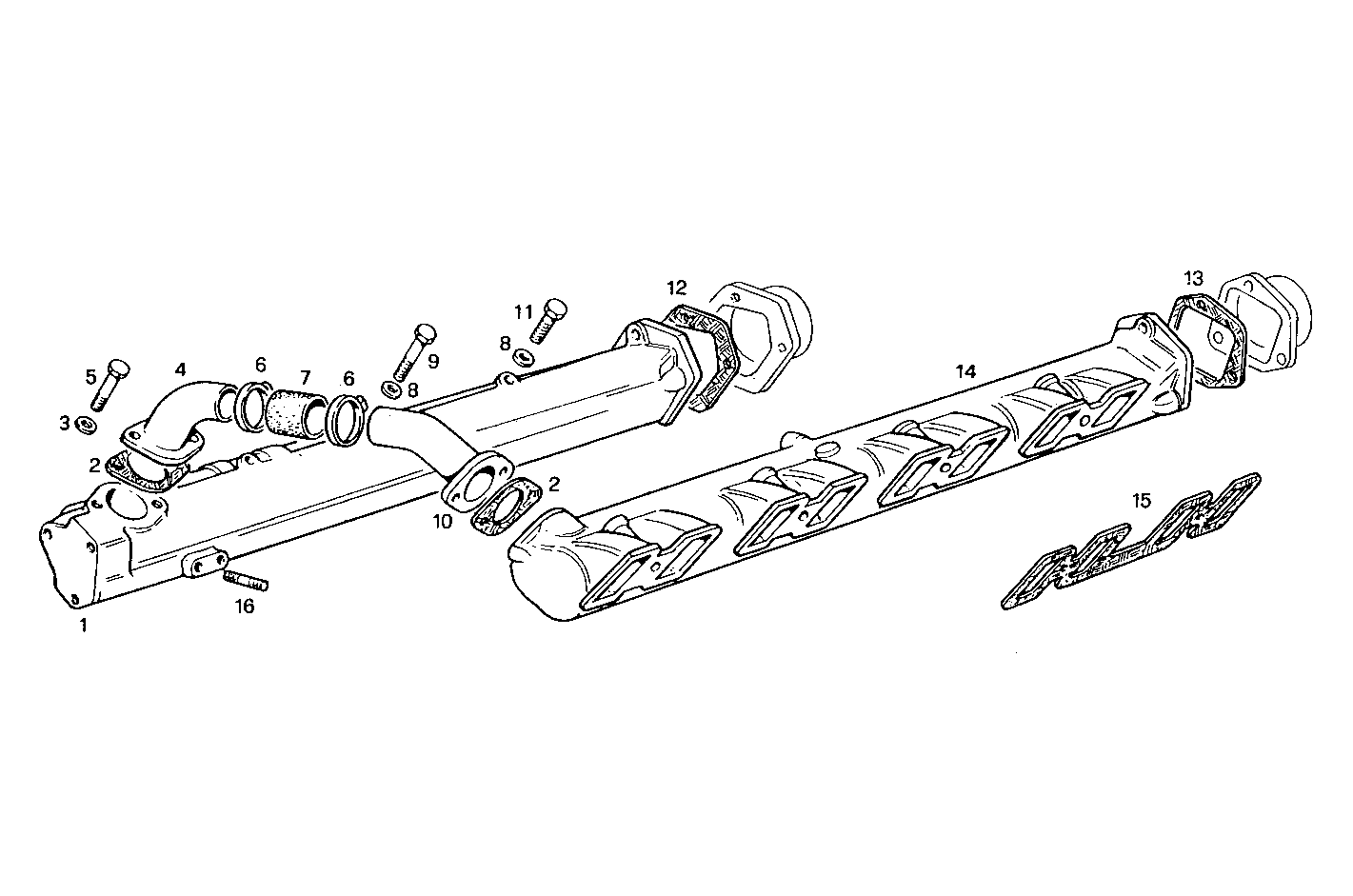

0710.027 INTAKE MANIFOLD
| Item | Part number | Description |
|---|---|---|
| 1 | 8007768 | INTAKE ELBOW RIGHT |
| 2 | 4863536 | FLAT ENGINE GASKET |
| 3 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 4 | 4682243 | INTAKE ELBOW |
| 5 | 16043621 | HEXAGON BOLT M8X25 MM |
| 6 | 4788415 | CLIP |
| 7 | 4777660 | RUBBER SLEEVE |
| 8 | 11198474 | SPRING WASHER Ø10X27 MM |
| 9 | 15972221 | SCREW M10X1,25X120 |
| 10 | 4682245 | INTAKE ELBOW |
| 11 | 15971821 | SCREW M10X1,25X100 |
| 12 | 1904893 | FLAT ENGINE GASKET |
| 13 | 1904876 | INTAKE ELBOW GASK. |
| 14 | 4762475 | INTAKE ELBOW LEFT |
| 15 | 1905531 | FLAT ENGINE GASKET |
| 16 | 13516811 | STUD M8X12X20 MM |
