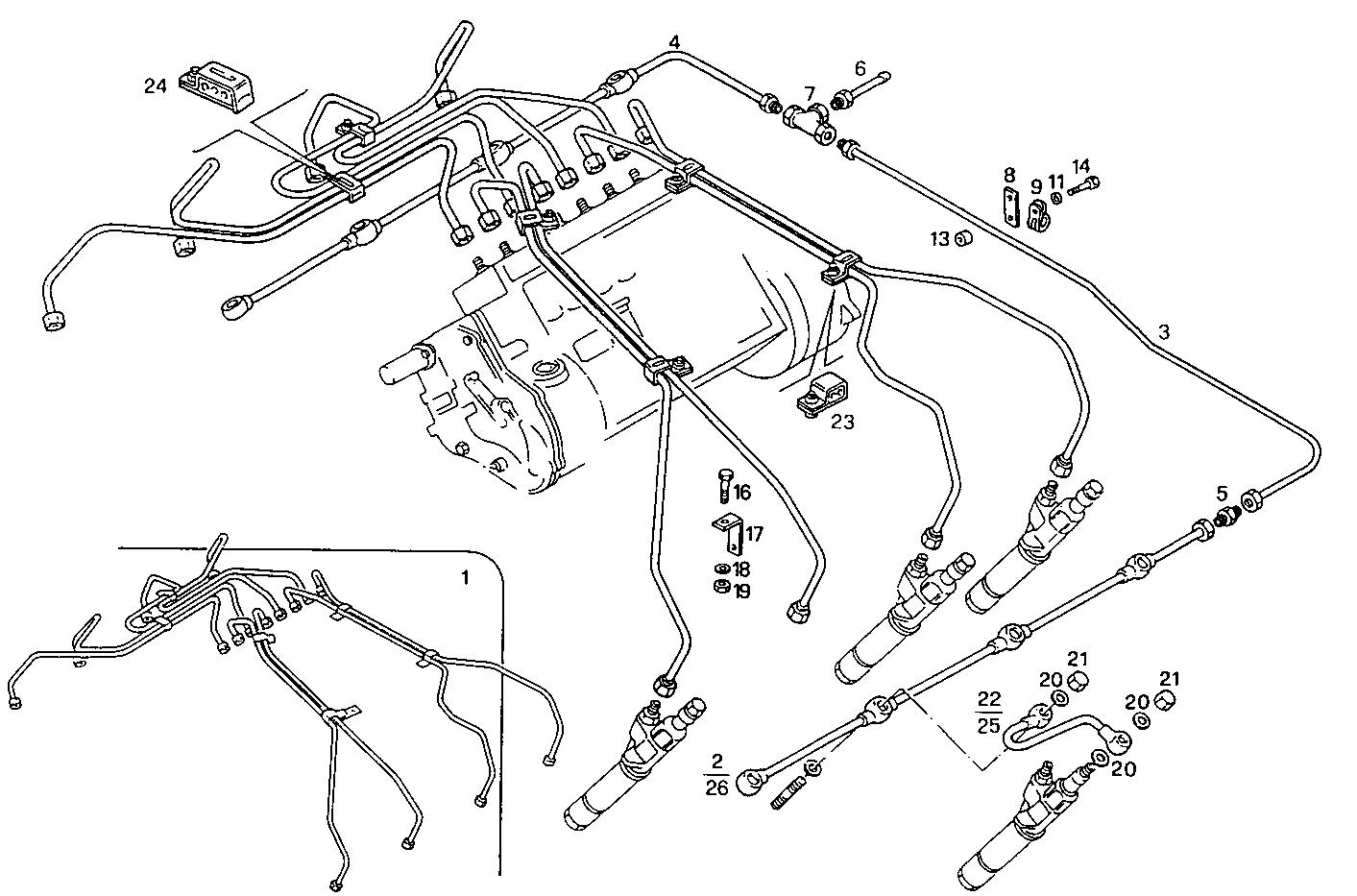

| Item |
Part number |
Description |
|
1 |
4807620 |
INJECTION LINE SET ASSY ARMCO |
|
2 |
4706176 |
FUEL LINE [up to ...] |
|
3 |
8005672 |
INJECTION LINE |
|
4 |
8005747 |
INJECTION LINE RIGHT |
|
5 |
4693018 |
THREADED UNION |
|
6 |
4706182 |
INJECTION LINE |
|
7 |
4677909 |
T-COUPLING |
|
8 |
4840311 |
RETAINER |
|
9 |
4656139 |
FASTENING BRACKET |
|
11 |
11193871 |
WASHER �8X16X1,4 MM |
|
13 |
13605811 |
SPACER SP=1,5 MM |
|
14 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
16 |
10902221 |
HEXAGON BOLT M6X16 MM |
|
17 |
8005504 |
RETAINER |
|
18 |
17088474 |
WASHER �6X12 MM |
|
19 |
15896211 |
HEXAGON NUT M6 |
|
20 |
98474303 |
WASHER �8X14 MM SP=2,3 MM |
|
21 |
11902017 |
LOCK PLUG M8 |
|
22 |
4706186 |
INJECTION LINE [up to ...] |
|
23 |
4806611 |
FASTENING BRACKET |
|
24 |
4806612 |
FASTENING BRACKET |
|
25 |
98488844 |
INJECTION LINE [from ...] |
|
26 |
98488847 |
INJECTION LINE LEFT [from ...] |
