8281M32.10

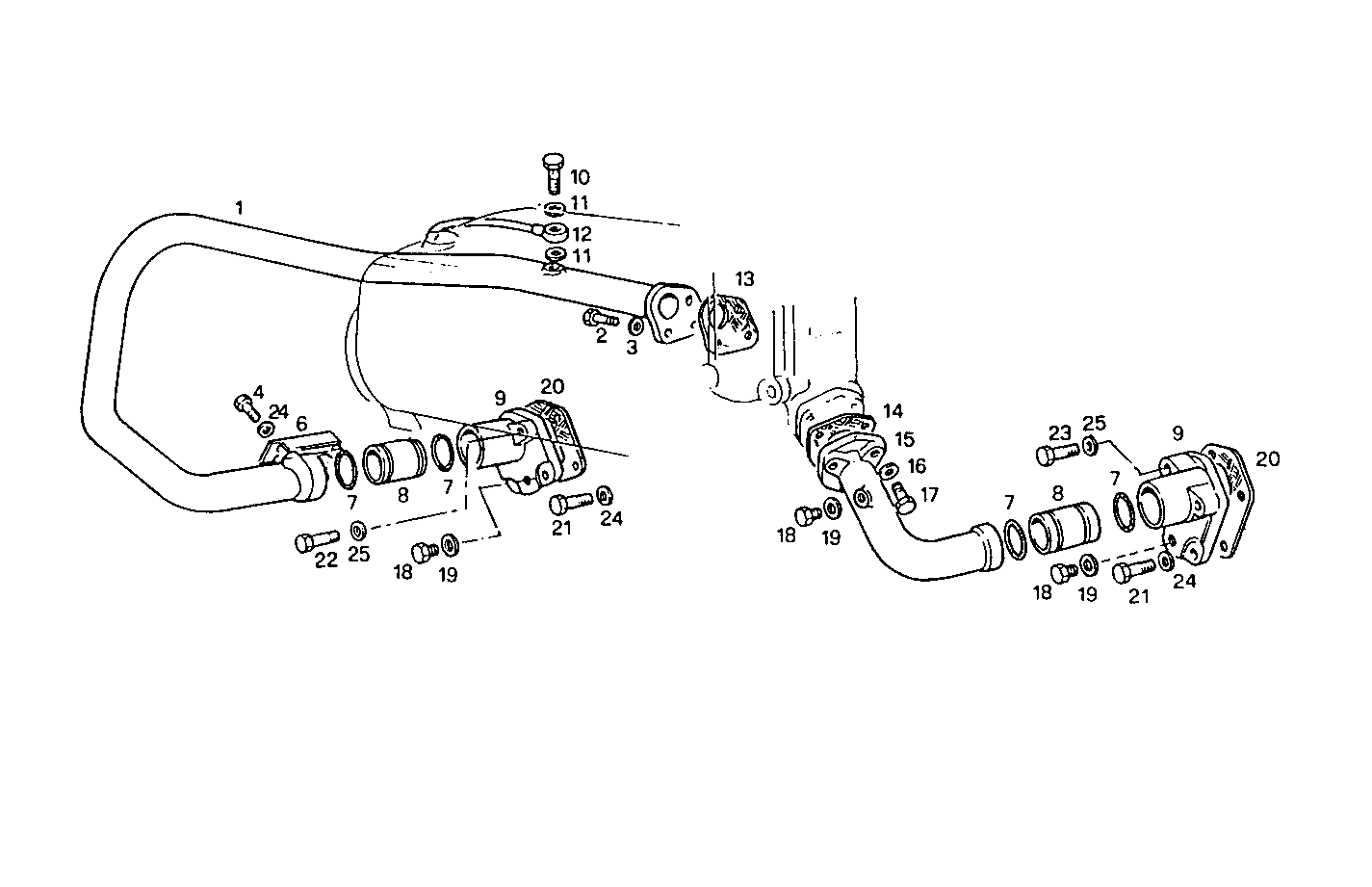

3210.165/03 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 8109500 WATER PIPE
2 15004021 HEXAGON BOLT M10X1,25X25 MM
3 17090174 SPRING WASHER Ø10X20 MM
4 16605424 SCREW M8X16 MM (8.8)
6 8110840 RETAINER
7 14464281 O-RING Ø44 MM SP=3,53 MM
8 8112495 CONNECTOR SLEEVE
9 8109497 COVER
10 4864082 BANJO BOLT M12X1,5X25 MM
11 4858607 WASHER Ø12X17 MM SP=1,5 MM
12 8014477 WATER PIPE
13 4716260 FLAT ENGINE GASKET
14 4816749 FLAT ENGINE GASKET
15 8109498 WATER PIPE
16 17088474 WASHER Ø6X12 MM
17 16604124 HEXAGON BOLT M6X40 MM
18 16992440 THREADED PLUG M16X1,5
19 4858609 WASHER Ø16X22 MM SP=1,5 MM
20 8105608 GASKET
21 16605524 HEXAGON BOLT M8X20 MM
22 16691324 CYLIND-HEAD SCREW M8X60 MM
23 16691224 CYLIND-HEAD SCREW M8X55 MM
24 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
25 17101534 SPRING WASHER Ø8 MM
