8281M32.10

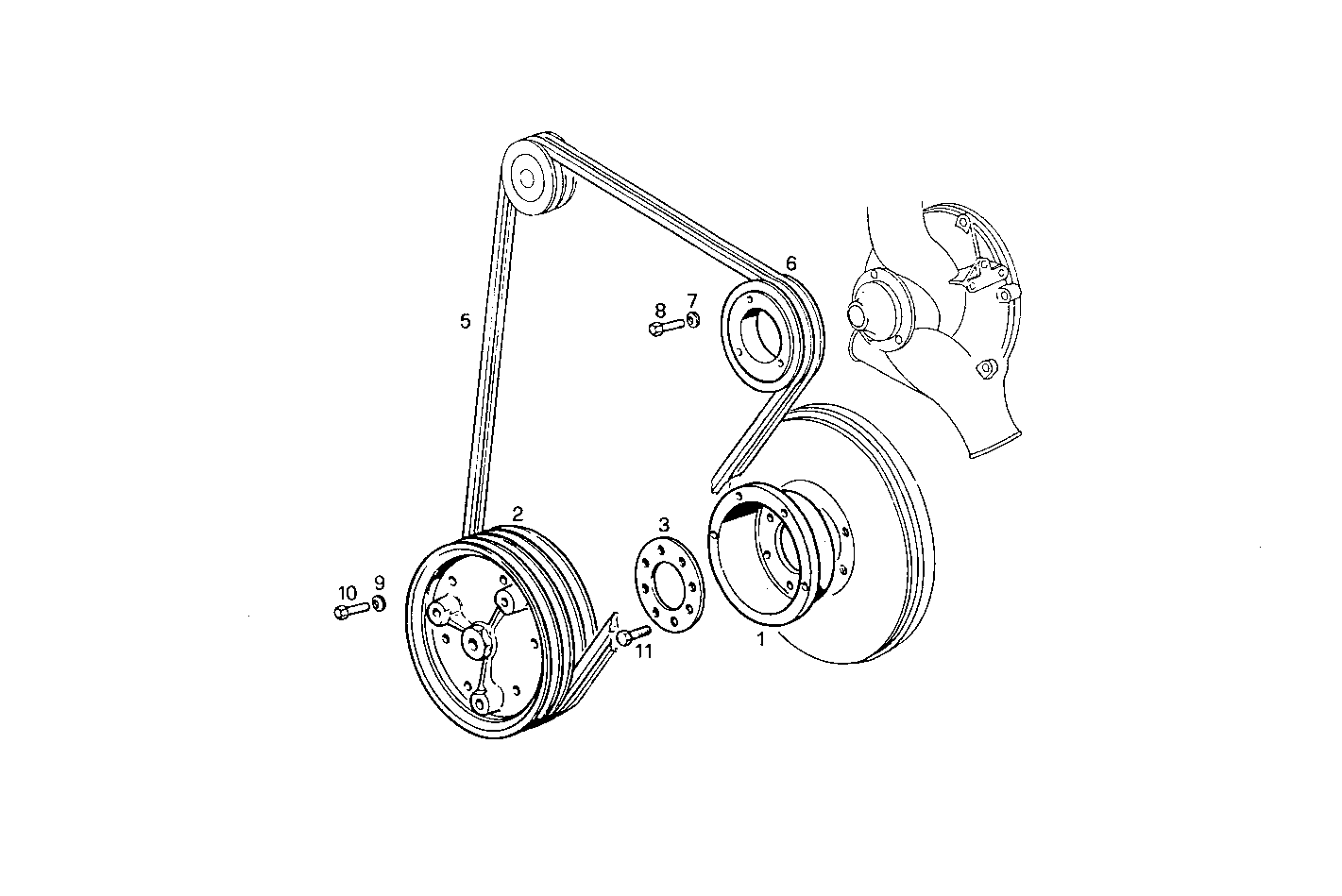

3240.097 PULLEYS AND BELTS
| Item | Part number | Description |
|---|---|---|
| 1 | 4701608 | SPACING BAR |
| 2 | 4701609 | PULLEY |
| 3 | 4678364 | STOP WASHER |
| 5 | 8007723 | V-BELT KIT |
| 6 | 8113943 | PULLEY |
| 7 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 8 | 16043424 | HEXAGON BOLT M8X20 MM |
| 9 | 11198671 | SPRING WASHER Ø13 MM |
| 10 | 15540721 | HEXAGON BOLT M12X45 MM |
| 11 | 14255130 | LOCKING SCREW M14X65 MM |
