8281M32.10

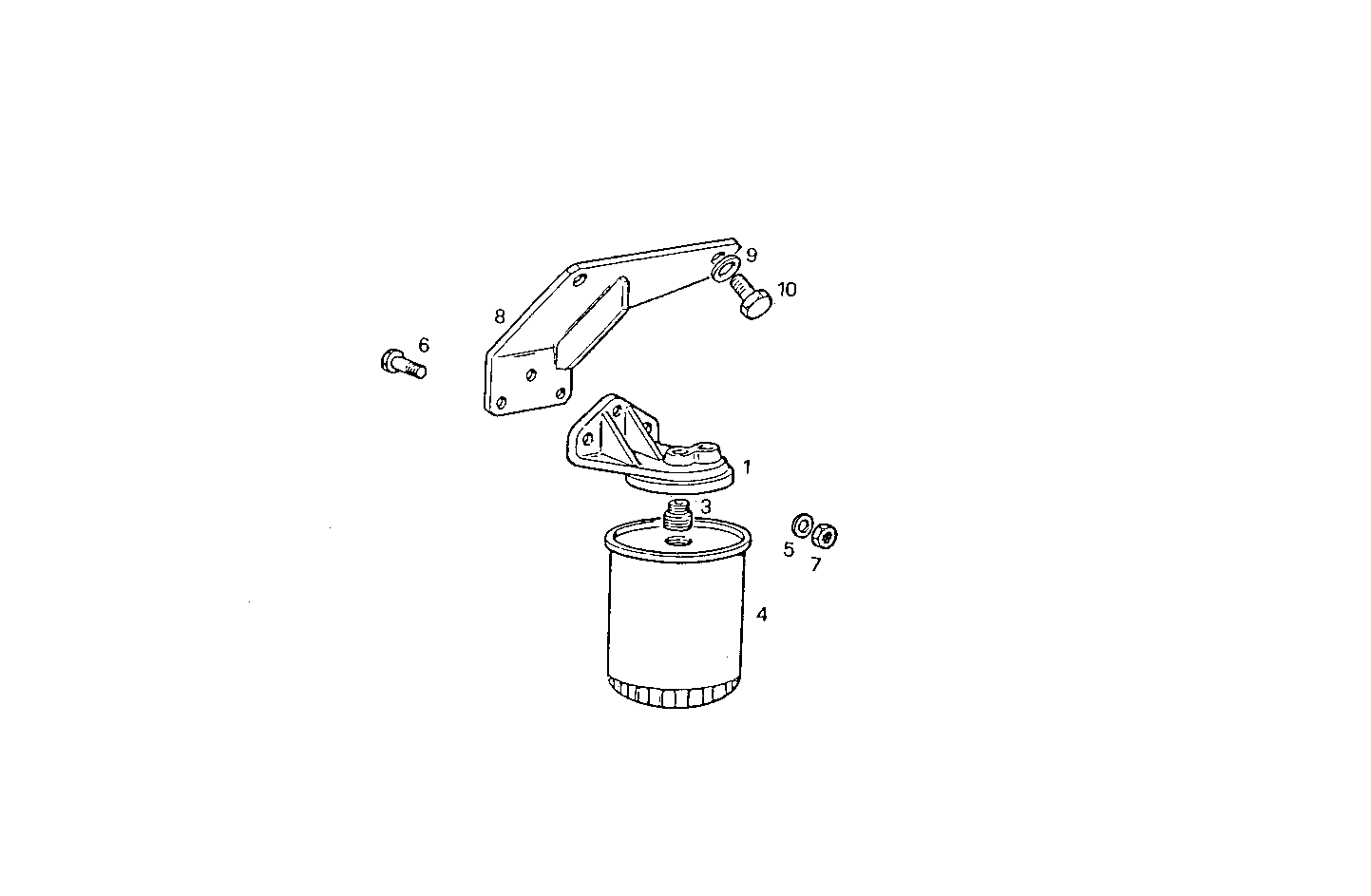

3280.002/01 WATER FILTER
| Item | Part number | Description |
|---|---|---|
| 1 | 4696152 | SUPPORT |
| 3 | 4681777 | THREADED UNION |
| 4 | 1901776 | WATER FILTER CARTRIDGE |
| 5 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 6 | 16043521 | SCREW M8X22 |
| 7 | 17037931 | HEXAGON NUT M8X1,25 |
| 8 | 4936558 | RETAINER |
| 9 | 11194279 | SPRING WASHER Ø17,4 MM |
| 10 | 15980321 | HEXAGON BOLT M16X1,5X25 MM |
