8281M32.10

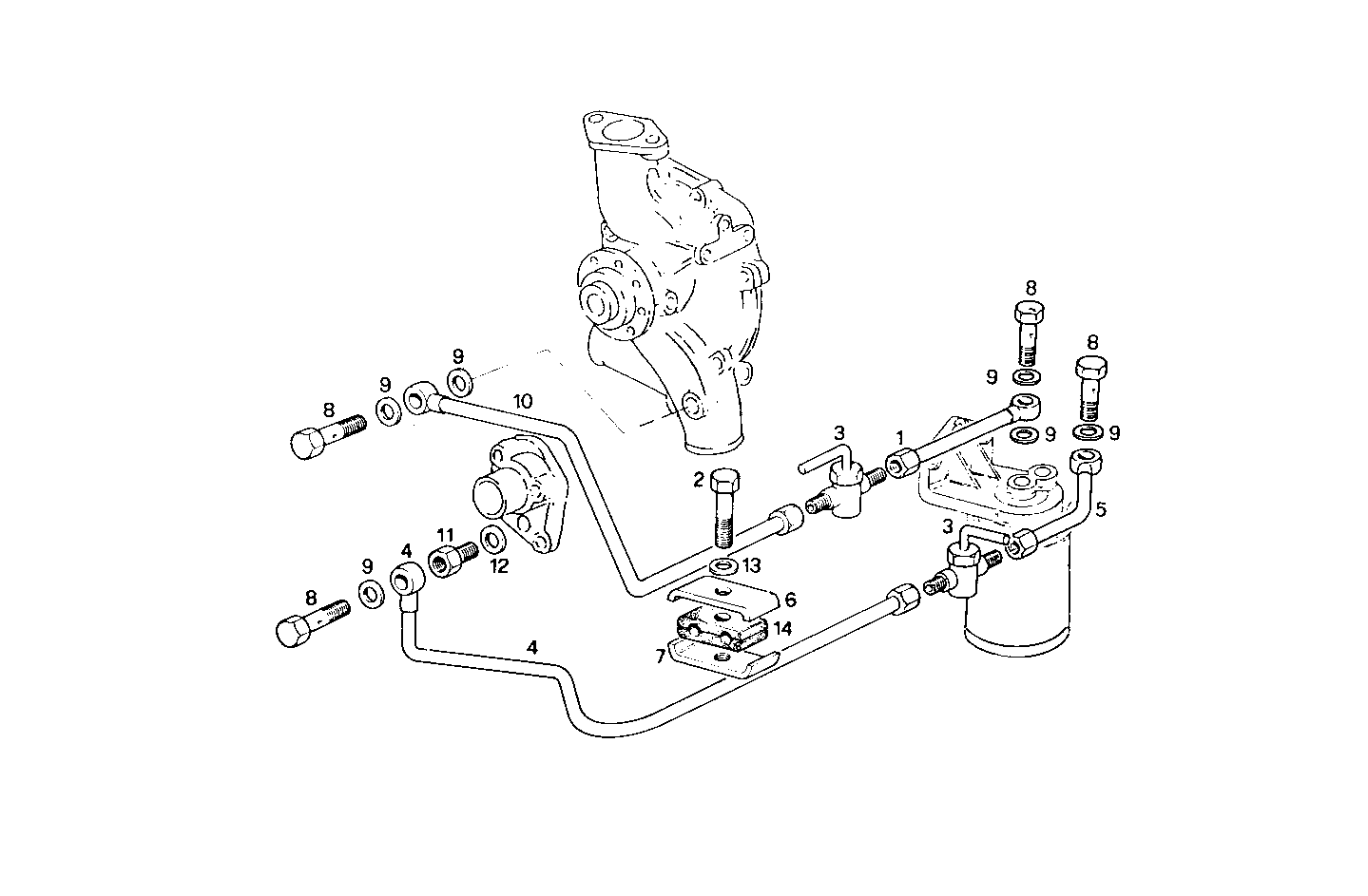

3280.002/02 WATER FILTER
| Item | Part number | Description |
|---|---|---|
| 1 | 8014486 | WATER PIPE [up to 12-97] |
| 2 | 10902621 | SCREW M6X25 MM |
| 3 | 4734025 | RETAINER COCK [up to 12-97] |
| 4 | 8014484 | WATER PIPE [up to 12-97] |
| 5 | 8014485 | WATER PIPE [up to 12-97] |
| 6 | 4644288 | CLIP |
| 7 | 4644289 | CLIP |
| 8 | 4864083 | SCREW CONNECTOR M14X1,5X30 MM |
| 9 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
| 10 | 8014487 | WATER PIPE [up to 12-97] |
| 11 | 4928330 | PIPE SOCKET M16X1,5/M14X1,5 |
| 12 | 16508260 | WASHER Ø16X20 MM |
| 13 | 11197779 | SPRING WASHER Ø6X12 MM |
| 14 | 4871771 | RUBBER LUG |
