8281M32.10

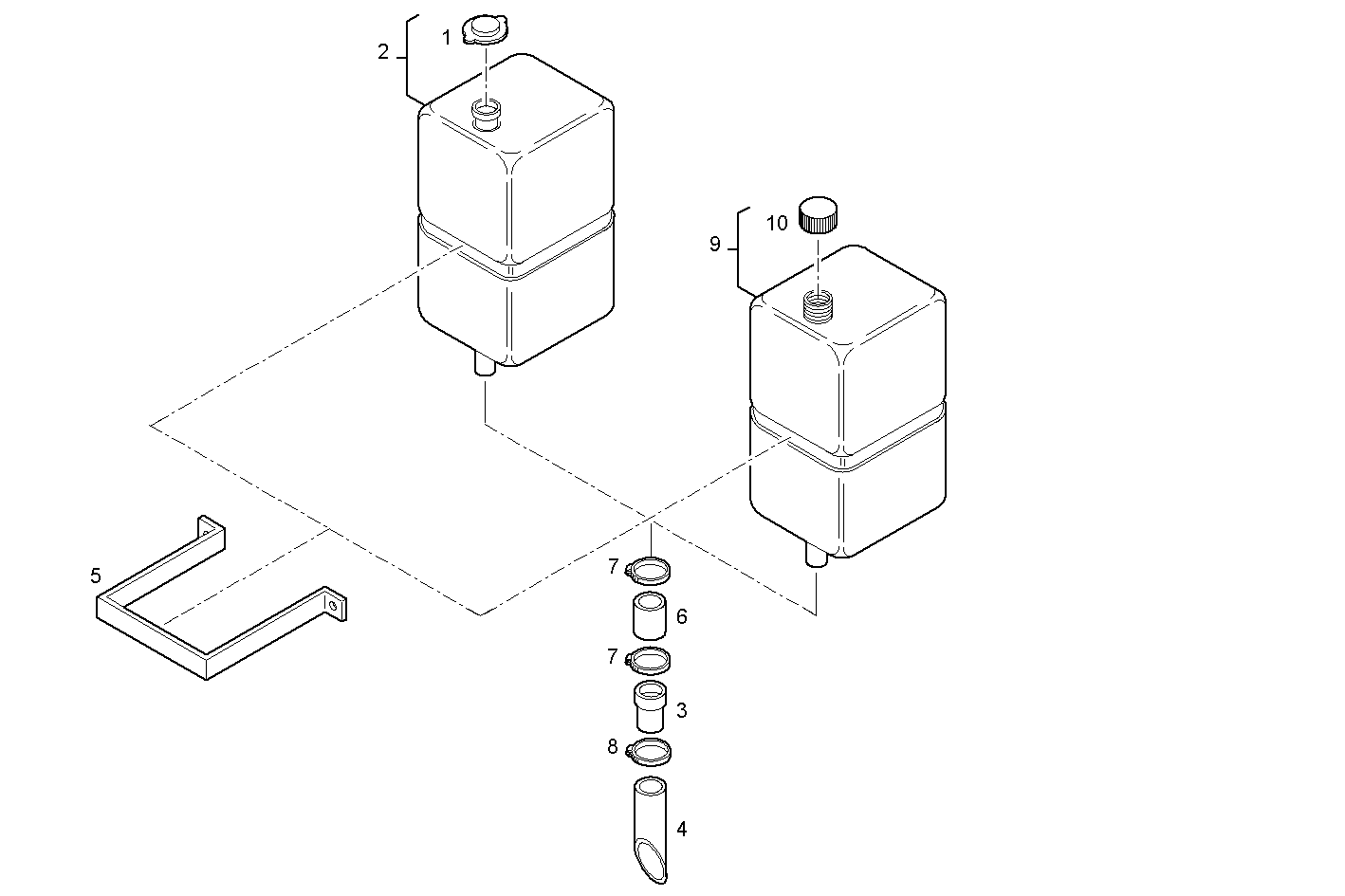

3290.000 EXPANSION TANK
| Item | Part number | Description |
|---|---|---|
| 1 | 4274033 | PLUG |
| 2 | 4652427 | WATER EXPANSION TANK ASSY |
| 3 | 4933230 | PIPE SOCKET |
| 4 | 4933239 | WATER HOSE |
| 5 | 4933297 | RETAINER |
| 6 | 12076887 | RUBBER SLEEVE |
| 7 | 17764593 | CLIP Ø20/32 MM |
| 8 | 17764393 | CLIP Ø12/20 MM |
| 9 | 8052875 | WATER EXPANSION TANK ASSY |
