8281M32.10

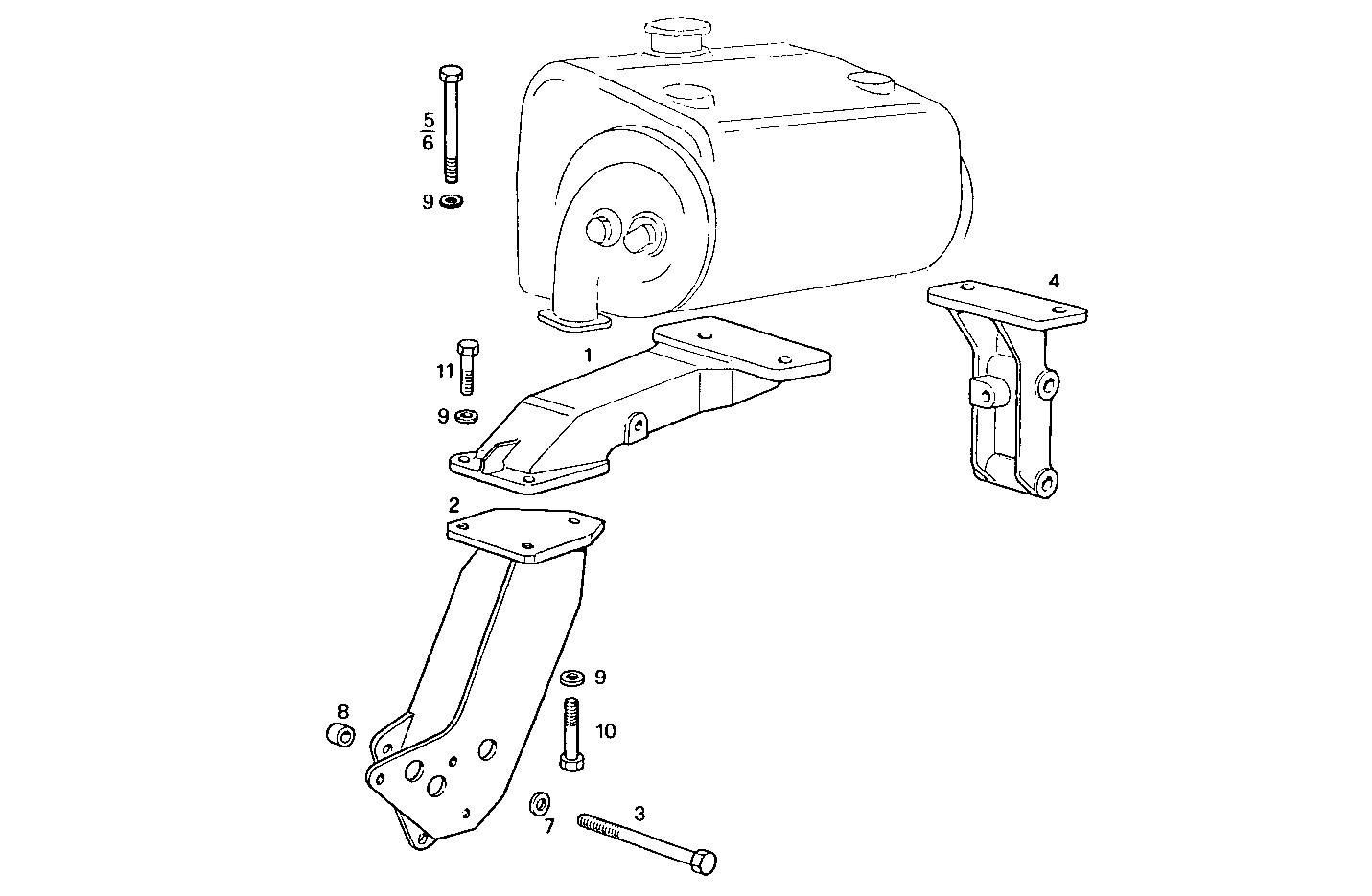

3370.019/01 FRESH WATER - SEA WATER HEAT EXCHANGER
| Item | Part number | Description |
|---|---|---|
| 1 | 8106669 | SUPPORT |
| 2 | 8114352 | SUPPORT |
| 3 | 16045521 | HEXAGON BOLT M8X115 MM |
| 4 | 8106668 | SUPPORT |
| 5 | 11234721 | HEXAGON BOLT M10X1,25X45 MM |
| 6 | 15973121 | HEXAGON BOLT M10X180 MM |
| 7 | 11198179 | WASHER Ø8X22X2,2 MM |
| 8 | 13605711 | SPACER Ø8,5x18 MM |
| 9 | 11190579 | SPRING WASHER Ø10X20 MM SP=2,3 |
| 10 | 11306921 | SCREW M10X1,25X30 |
| 11 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
