8281M32.10

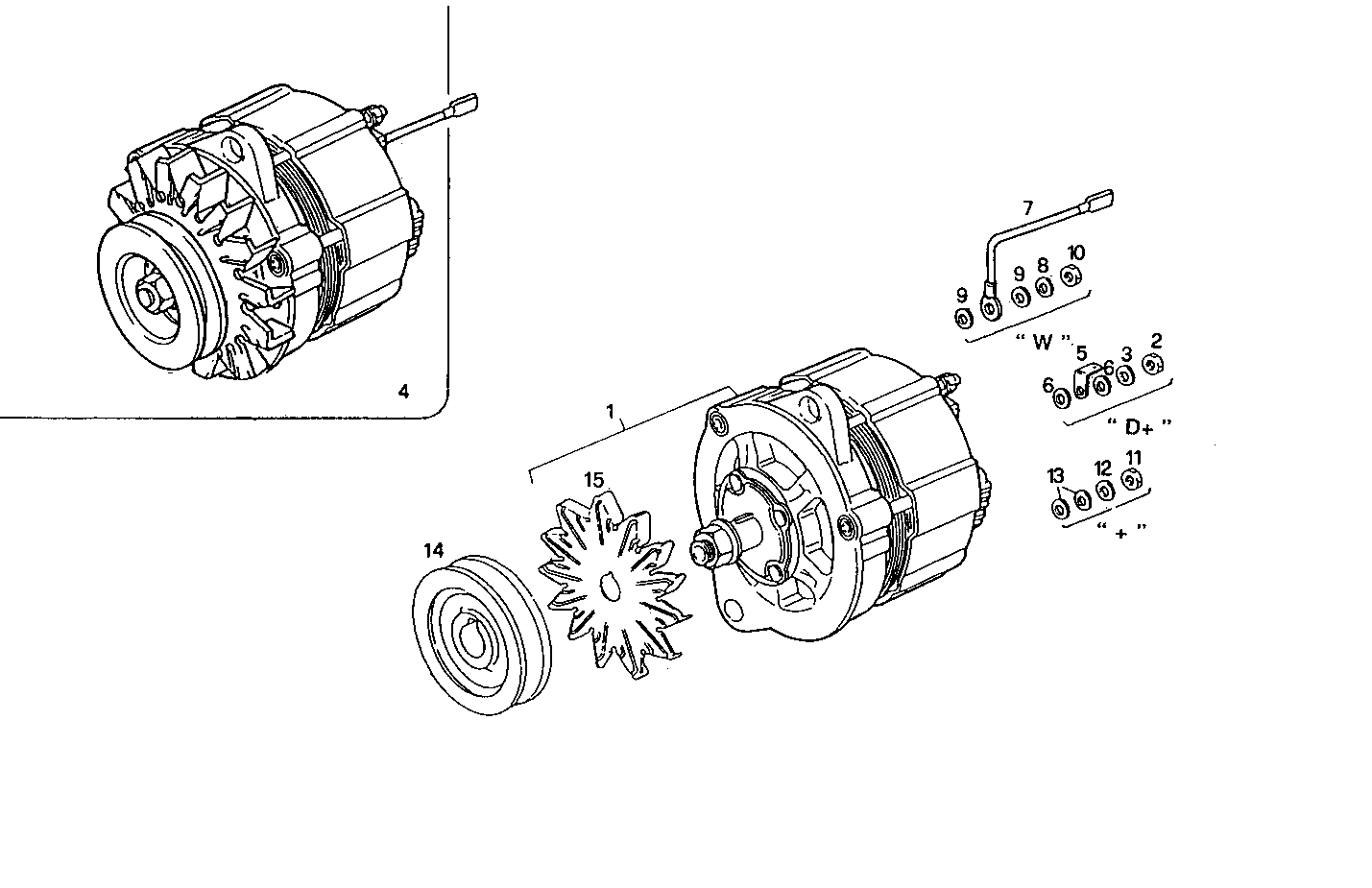

A14110002 SELF-REGULATED ALTERNATOR - 24V 55A - poles system
| Item | Part number | Description |
|---|---|---|
| 1 | 99461190 | ALTERNATOR ASSY BOSCH [from 05-99] |
| 2 | 17037621 | HEXAGON NUT M4 |
| 3 | 10615279 | WASHER Ø4 MM |
| 4 | 8027978 | ALTERNATOR ASSY |
| 5 | 12277944 | CONNECTION D+ |
| 6 | 17094204 | WASHER Ø4X8X0,8 MM |
| 7 | 8019531 | WIRE/CABLE W |
| 9 | 17094504 | WASHER Ø5,3X10 MM |
| 10 | 17037721 | NUT M5X0,8 |
| 11 | 17037931 | HEXAGON NUT M8X1,25 |
| 12 | 17494834 | WASHER Ø8 MM |
| 13 | 17094914 | WASHER 8x16 |
| 14 | 8104377 | PULLEY [from 11-99] |
| 15 | 4757196 | GENERATOR FAN BOSCH |
