8281M32.10

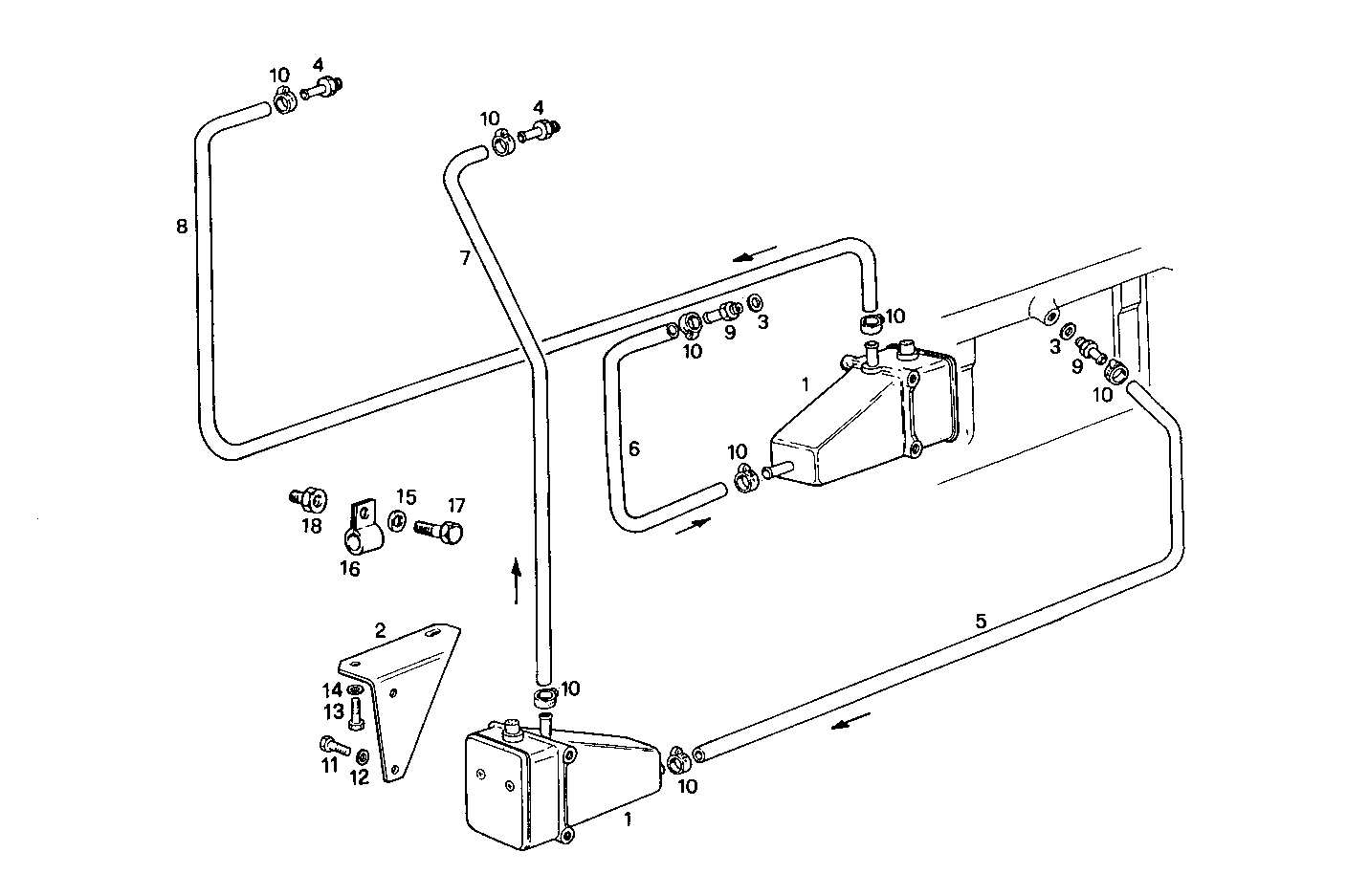

A20040020/01 WATER PREHEATER DEVICE - 220V
| Item | Part number | Description |
|---|---|---|
| 1 | 8008375 | HEATER 700W |
| 2 | 8007061 | SUPPORT |
| 3 | 10257460 | SEAL GASKET Ø20X26 MM SP=1,5 MM [up to ...] |
| 4 | 8112319 | PIPE SOCKET |
| 5 | 8111813 | RUBBER SLEEVE |
| 6 | 8005758 | WATER HOSE L=450 MM |
| 7 | 8007530 | HOSE |
| 8 | 8007529 | HOSE |
| 9 | 8112804 | PIPE SOCKET |
| 10 | 18088392 | CLIP Ø16/25 MM |
| 11 | 10902121 | HEXAGON BOLT M6X14 MM |
| 12 | 17088471 | SPRING WASHER Ø6X12 MM SP=1,2 MM |
| 13 | 11306921 | SCREW M10X1,25X30 |
| 14 | 10730501 | WASHER Ø10,2 MM |
| 15 | 17090174 | SPRING WASHER Ø10X20 MM |
| 16 | 4936279 | CLIP |
| 17 | 15970521 | HEXAGON BOLT M10X20 MM |
| 18 | 4927358 | PIPE SOCKET |
