8281M32.10

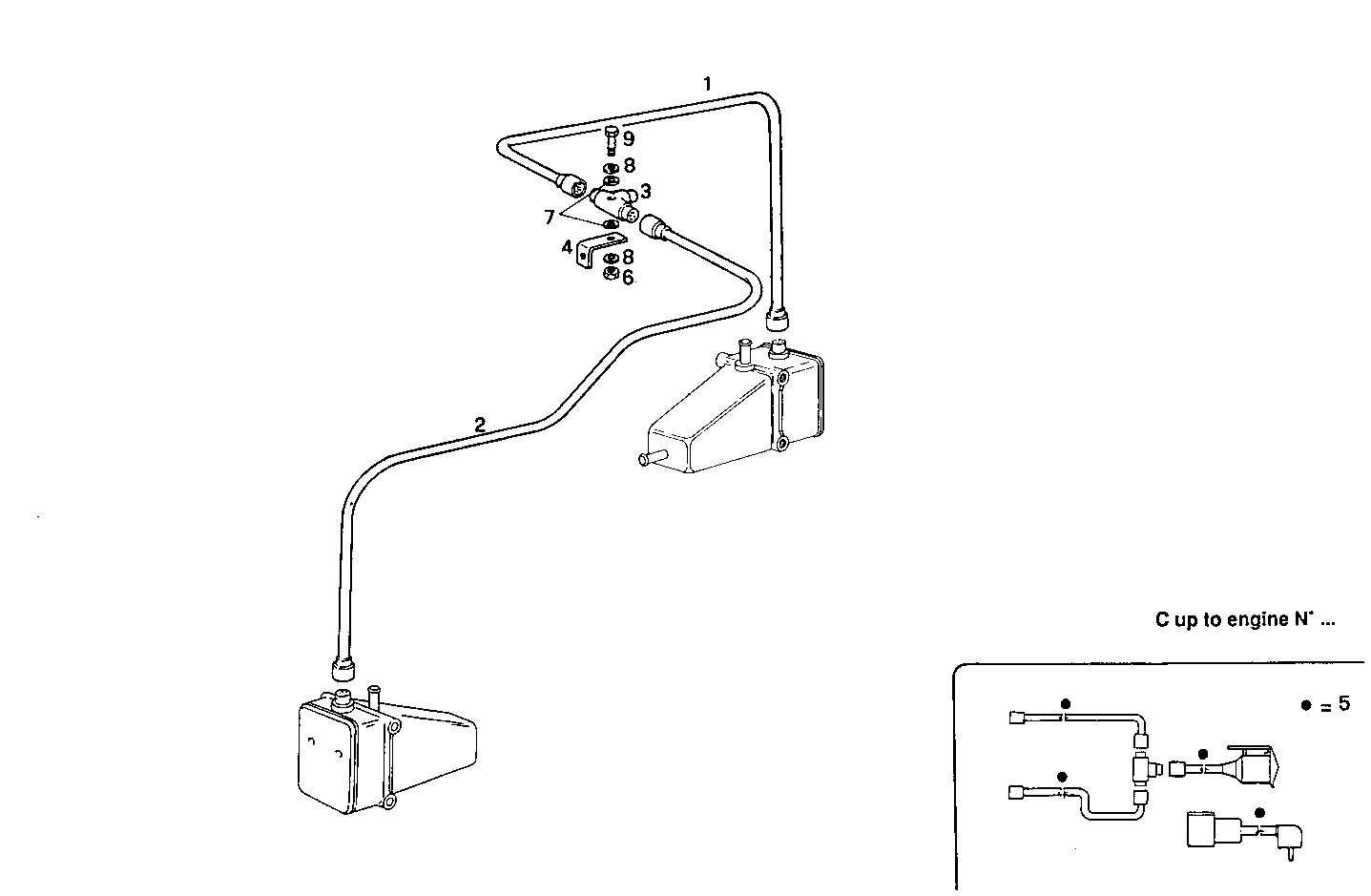

A20040020/02 WATER PREHEATER DEVICE - 220V
| Item | Part number | Description |
|---|---|---|
| 1 | 8112321 | WIRE/CABLE L=1000 MM |
| 2 | 8112322 | WIRE/CABLE L=2000 MM |
| 3 | 8111867 | CONNECTION |
| 4 | 8104447 | RETAINER |
| 5 | 8009376 | WIRE/CABLE ASSY |
| 6 | 12574111 | HEXAGON NUT M5 |
| 7 | 14497801 | WASHER Ø5X9,5 MM |
| 8 | 12601179 | WASHER |
| 9 | 10978521 | HEXAGON BOLT M5X35 MM |
