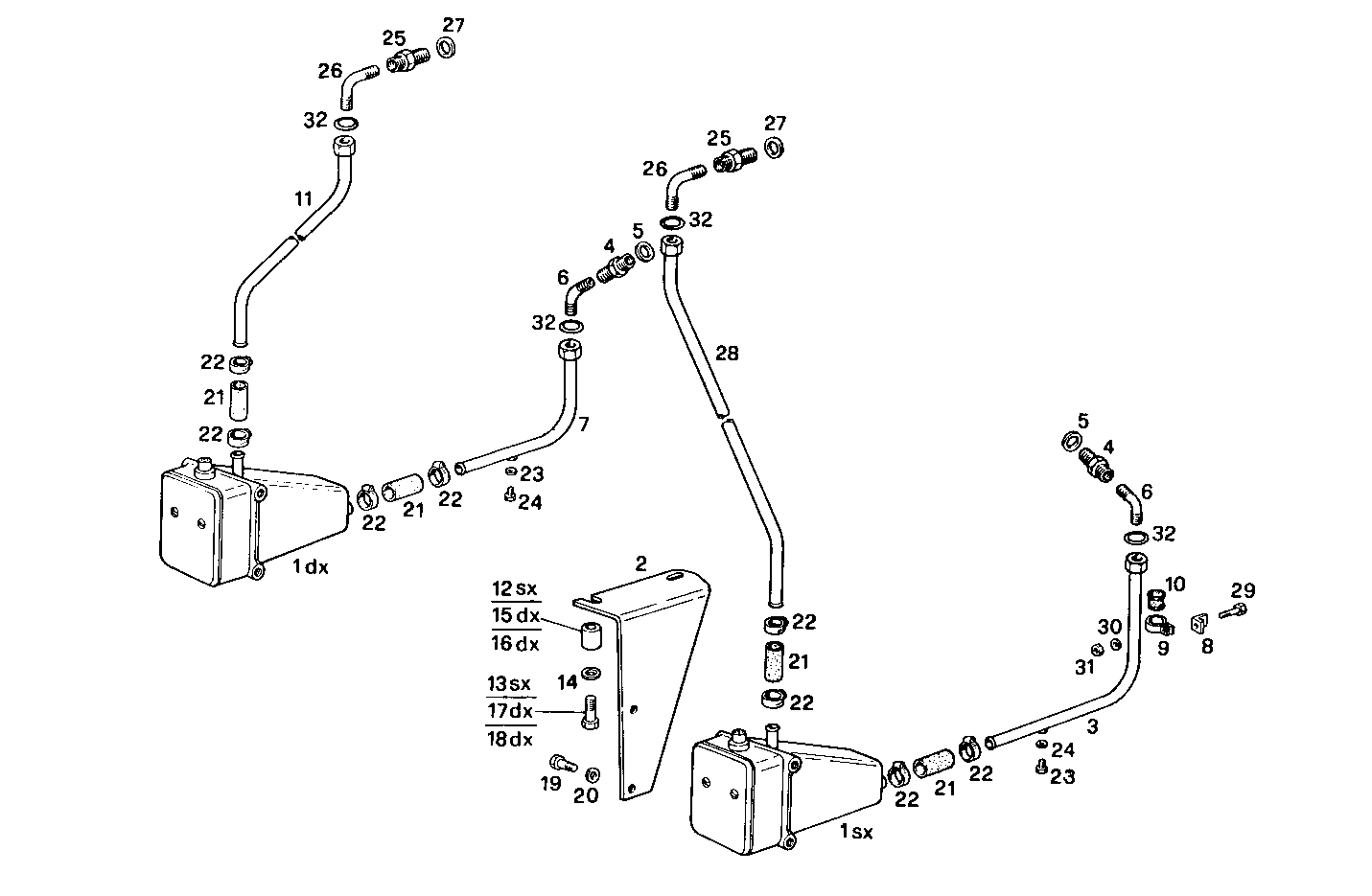

| Item |
Part number |
Description |
|
1 |
8008375 |
HEATER 700W |
|
2 |
8012668 |
SUPPORT |
|
3 |
8014795 |
WATER PIPE |
|
4 |
4741602 |
THREADED UNION LEFT |
|
5 |
98429280 |
SEAL GASKET Ø20X26 MM SP=1,5 MM |
|
6 |
16512111 |
PIPE SOCKET |
|
7 |
8014798 |
WATER PIPE |
|
8 |
4929652 |
RETAINER |
|
9 |
4763804 |
FASTENING BRACKET |
|
10 |
4757122 |
RUBBER PAD |
|
11 |
8014799 |
WATER PIPE |
|
12 |
759850 |
WASHER Ø10X21X2 MM |
|
13 |
15970921 |
HEXAGON BOLT M10X1,25X35 MM |
|
14 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
15 |
8109544 |
SPACING BAR [from 05-96] |
|
16 |
8108351 |
SPACING BAR |
|
17 |
11234721 |
HEXAGON BOLT M10X1,25X45 MM |
|
18 |
11307021 |
HEXAGON BOLT M10X40 MM |
|
19 |
10902121 |
HEXAGON BOLT M6X14 MM |
|
20 |
17088474 |
WASHER Ø6X12 MM |
|
21 |
8109346 |
RUBBER SLEEVE |
|
22 |
17764592 |
CLIP Ø20/32 MM |
|
23 |
10300911 |
PLUG M8 |
|
24 |
4858605 |
WASHER Ø8X12 MM |
|
25 |
4846400 |
PIPE SOCKET |
|
26 |
8011696 |
PIPE SOCKET M16X1,5/M22X1,5 |
|
27 |
4858609 |
WASHER Ø16X22 MM SP=1,5 MM |
|
28 |
8014796 |
WATER PIPE |
|
29 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
30 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
31 |
17037931 |
HEXAGON NUT M8X1,25 |
|
32 |
8024649 |
O-RING Ø12 MM |
