8281M32.10

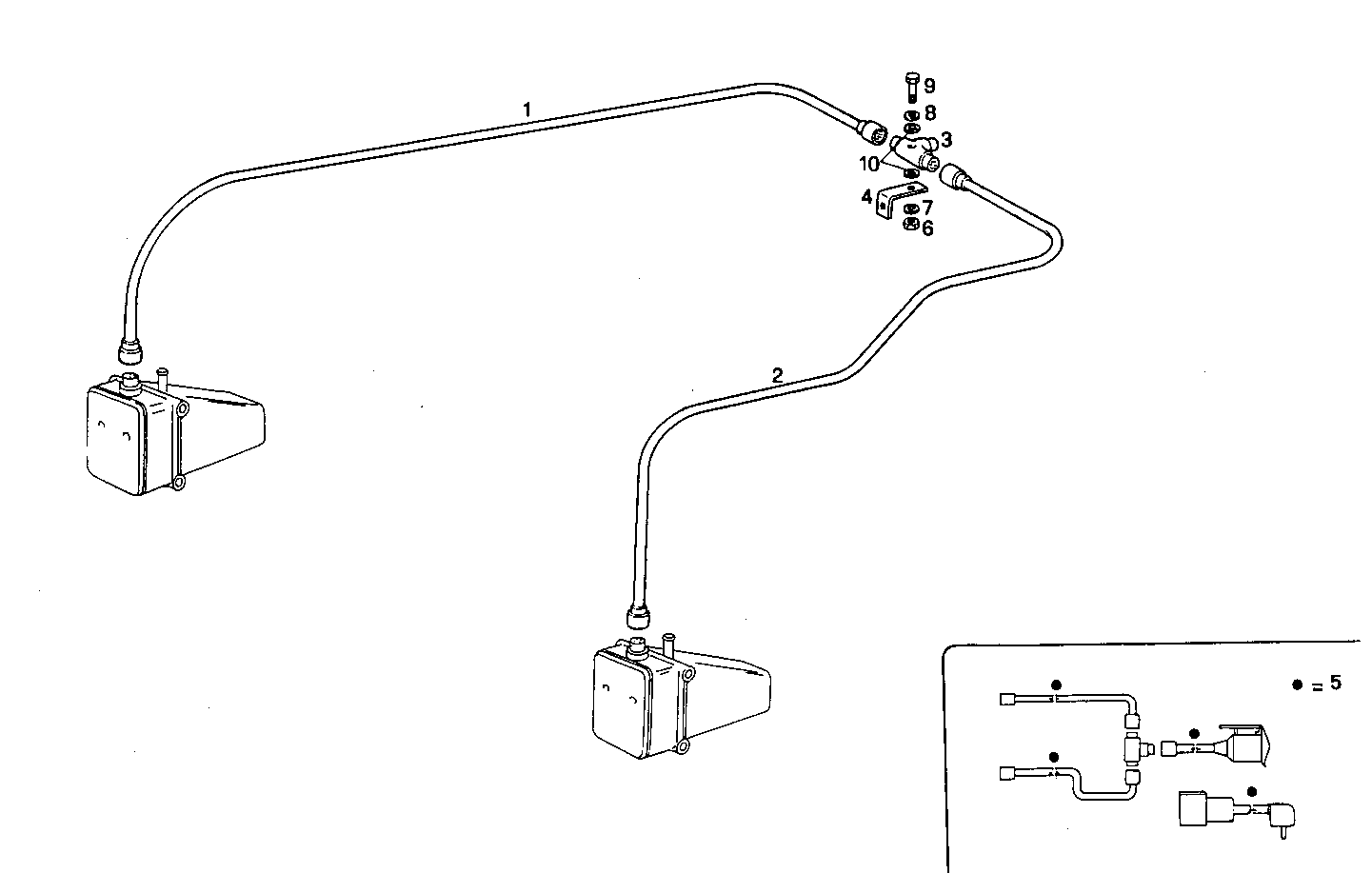

A20040037/02 WATER PREHEATER DEVICE - 220V [D 12-1992] [from12-1992]
| Item | Part number | Description |
|---|---|---|
| 1 | 8112321 | WIRE/CABLE L=1000 MM |
| 2 | 8112322 | WIRE/CABLE L=2000 MM |
| 3 | 8111867 | CONNECTION |
| 4 | 8104447 | RETAINER |
| 5 | 8009376 | WIRE/CABLE ASSY |
| 6 | 17152621 | NUT M5X0,8 |
| 7 | 17494634 | SPRING WASHER Ø5,1X9,2 MM |
| 8 | 17094714 | WASHER Ø6,4X12 MM |
| 9 | 10978521 | HEXAGON BOLT M5X35 MM |
| 10 | 17094504 | WASHER Ø5,3X10 MM |
