8281M32.10

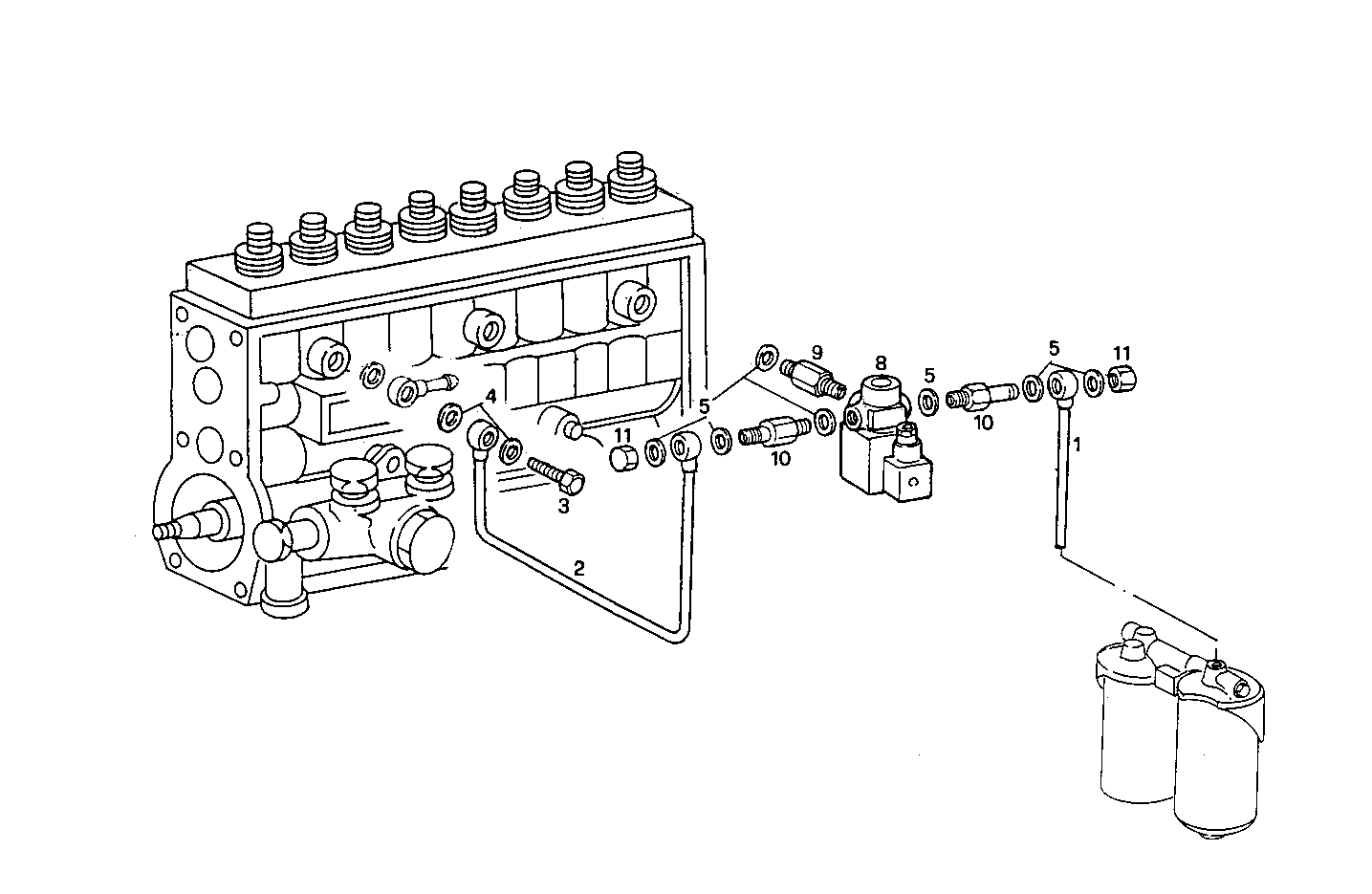

A28010038/03 ELECTRONIC GOVERNOR WOODWARD - 24V
| Item | Part number | Description |
|---|---|---|
| 1 | 8019850 | FUEL LINE |
| 2 | 8019849 | FUEL LINE |
| 3 | 61608319 | SCREW CONNECTOR |
| 4 | 98474308 | SEAL GASKET Ø14X22 MM |
| 5 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 8 | 8010441 | BUSH |
| 8 | 8108944 | ELECTROVALVE |
| 9 | 4929626 | PIPE SOCKET |
| 10 | 4929627 | PIPE SOCKET |
| 11 | 10182811 | PLUG |
