8281M32.10

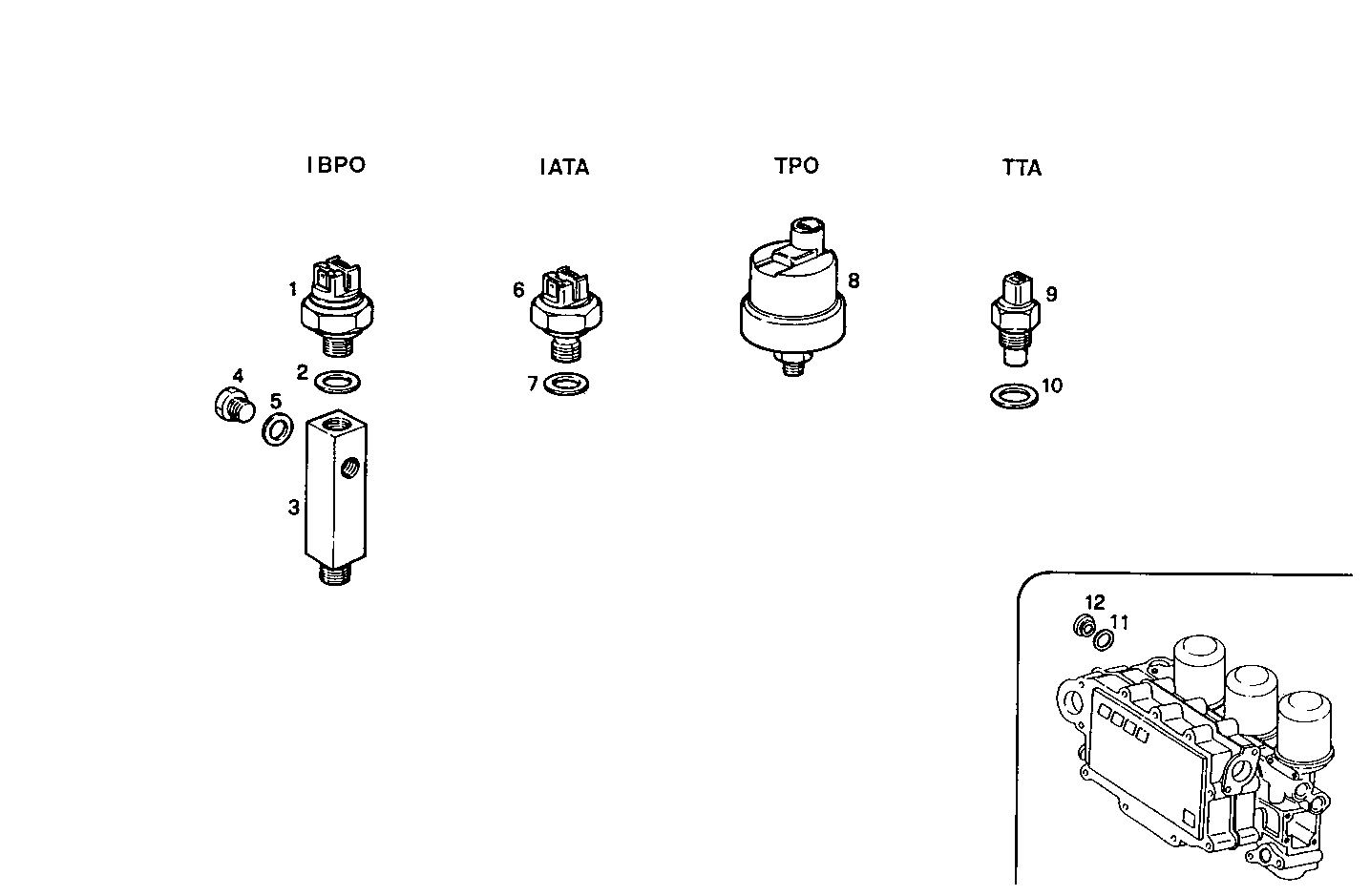

A38550042 SENDER UNITS FOR INSTRUMENTS - 12/24V - VEGLIA
| Item | Part number | Description |
|---|---|---|
| 1 | 8114030 | TRANSMITTER IBPO |
| 2 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 3 | 4929576 | PIPE SOCKET |
| 4 | 11903014 | PLUG |
| 5 | 4858606 | GASKET Ø10X14X1 MM |
| 6 | 8019334 | TRANSMITTER IATA |
| 7 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 8 | 8008031 | TRANSMITTER TPO |
| 9 | 8008030 | TRANSMITTER TTA |
| 10 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
| 11 | 10298460 | SEAL GASKET Ø12X18 MM SP=1,5 MM |
| 12 | 4701831 | PLUG |
