8281M32.10

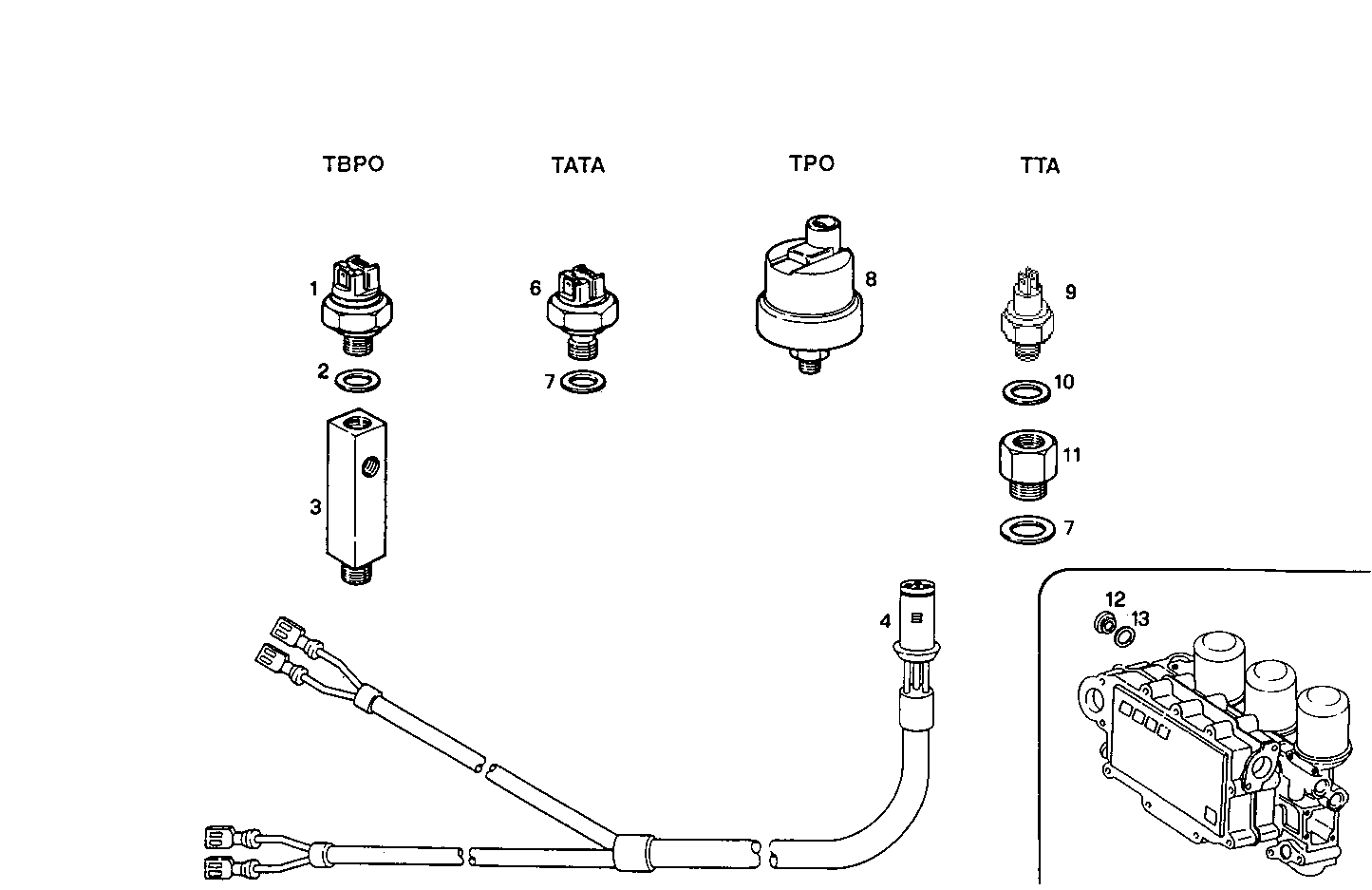

A38560025 SENDER UNITS FOR INSTRUMENTS - double 12/24V - VDO

Iveco/FPT SENDER UNITS FOR INSTRUMENTS

Item Part number Description
1 8114030 TRANSMITTER IBPO
2 4858607 WASHER Ø12X17 MM SP=1,5 MM
3 4929576 PIPE SOCKET
4 8101022 WIRE/CABLE
6 8019334 TRANSMITTER IATA
7 4858608 SEAL GASKET dia.14x19,5x1,5
8 8100417 TRANSMITTER TPO
9 8100418 TRANSMITTER TTA
10 4858609 WASHER Ø16X22 MM SP=1,5 MM
11 4928330 PIPE SOCKET M16X1,5/M14X1,5
12 4701831 PLUG
13 10298460 SEAL GASKET Ø12X18 MM SP=1,5 MM
