8281M32.10

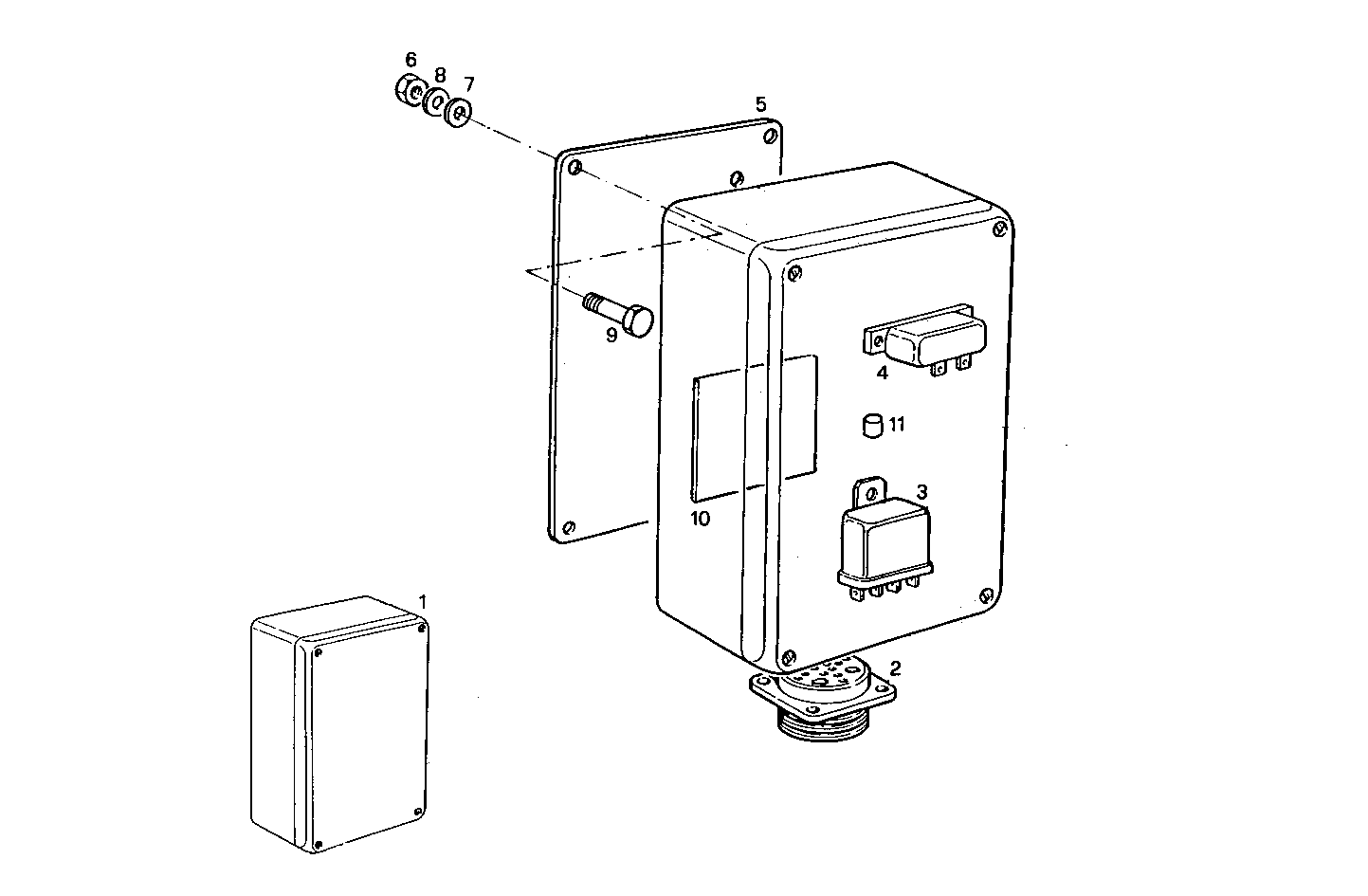

A38650006 OVERSPEED DEVICE 24V AT MAX RPM
| Item | Part number | Description |
|---|---|---|
| 1 | 8024287 | ENGINE STOP ASSY |
| 2 | 8113170 | CONNECTION ASSY |
| 3 | 8109519 | RELAY STOP [up to 05-95] |
| 4 | 8108575 | RELAY STARTER [up to 12-90] |
| 5 | 8028603 | PLATE |
| 6 | 17037821 | HEXAGON NUT M6X1 |
| 7 | 17094714 | WASHER Ø6,4X12 MM |
| 8 | 17494734 | WASHER Ø6X11,8X1,6 MM |
| 9 | 16603724 | HEXAGON BOLT M6X20 MM (8.8) |
| 10 | 8024338 | ELECTRONIC CARD |
| 11 | 8109479 | DIODE 1 AMP, |
