8281M32.30

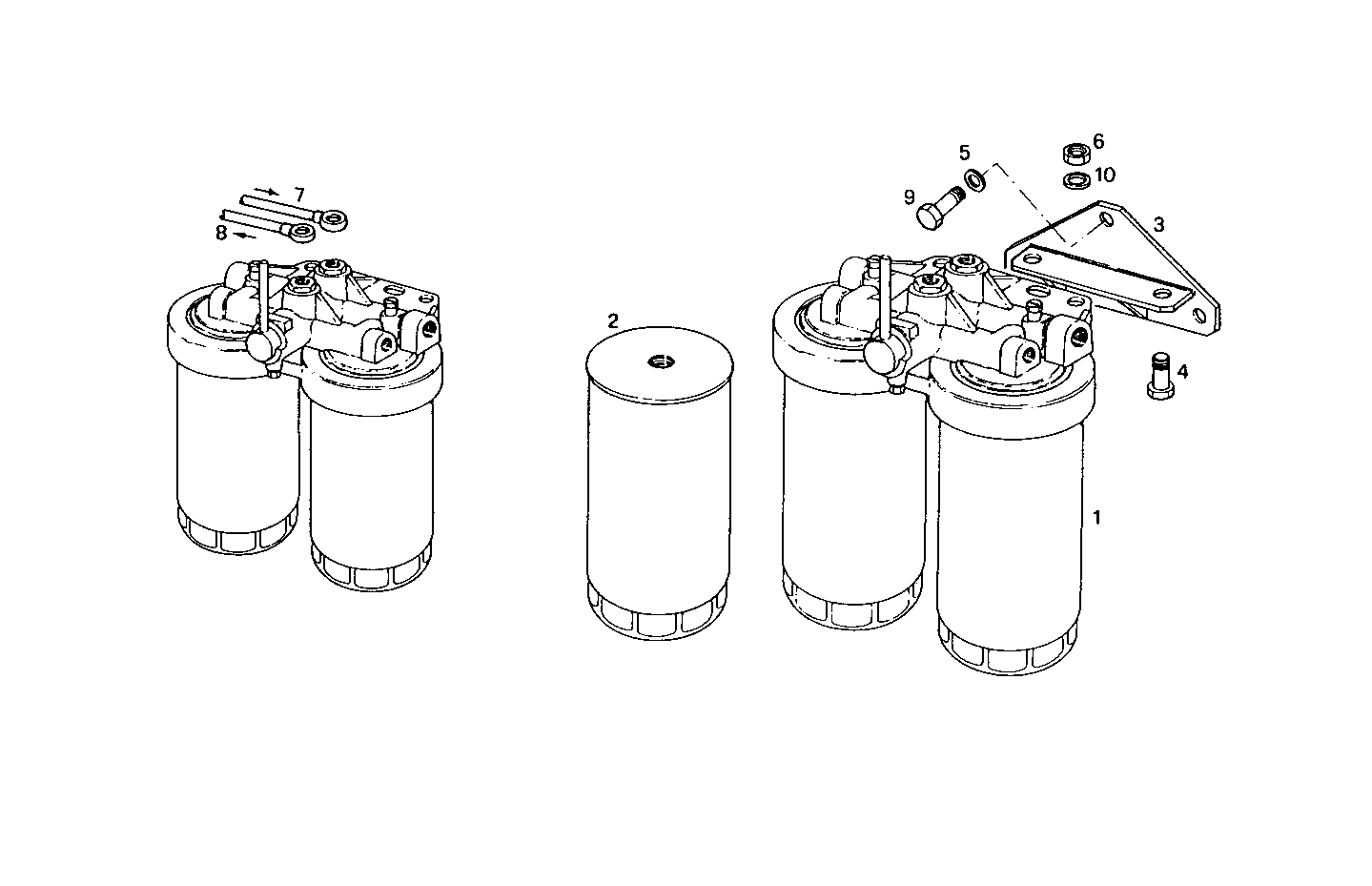

A15010013 DOUBLE FUEL FILTER - remov. with eng. running with WOODWARD
| Item | Part number | Description |
|---|---|---|
| 1 | 8108315 | FUEL FILTER ASSY |
| 2 | 8106473 | FUEL FILTER CARTRIDGE |
| 3 | 8108317 | SUPPORT |
| 4 | 15540721 | HEXAGON BOLT M12X45 MM |
| 5 | 11190579 | SPRING WASHER Ø10X20 MM SP=2,3 |
| 6 | 16101511 | HEXAGON NUT M12X1,25 |
| 7 | 8014480 | FUEL LINE |
| 8 | 8014482 | FUEL LINE |
| 9 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
| 10 | 11190779 | SPRING WASHER Ø12X24 SP=2,8 MM |
