8281Si10.00

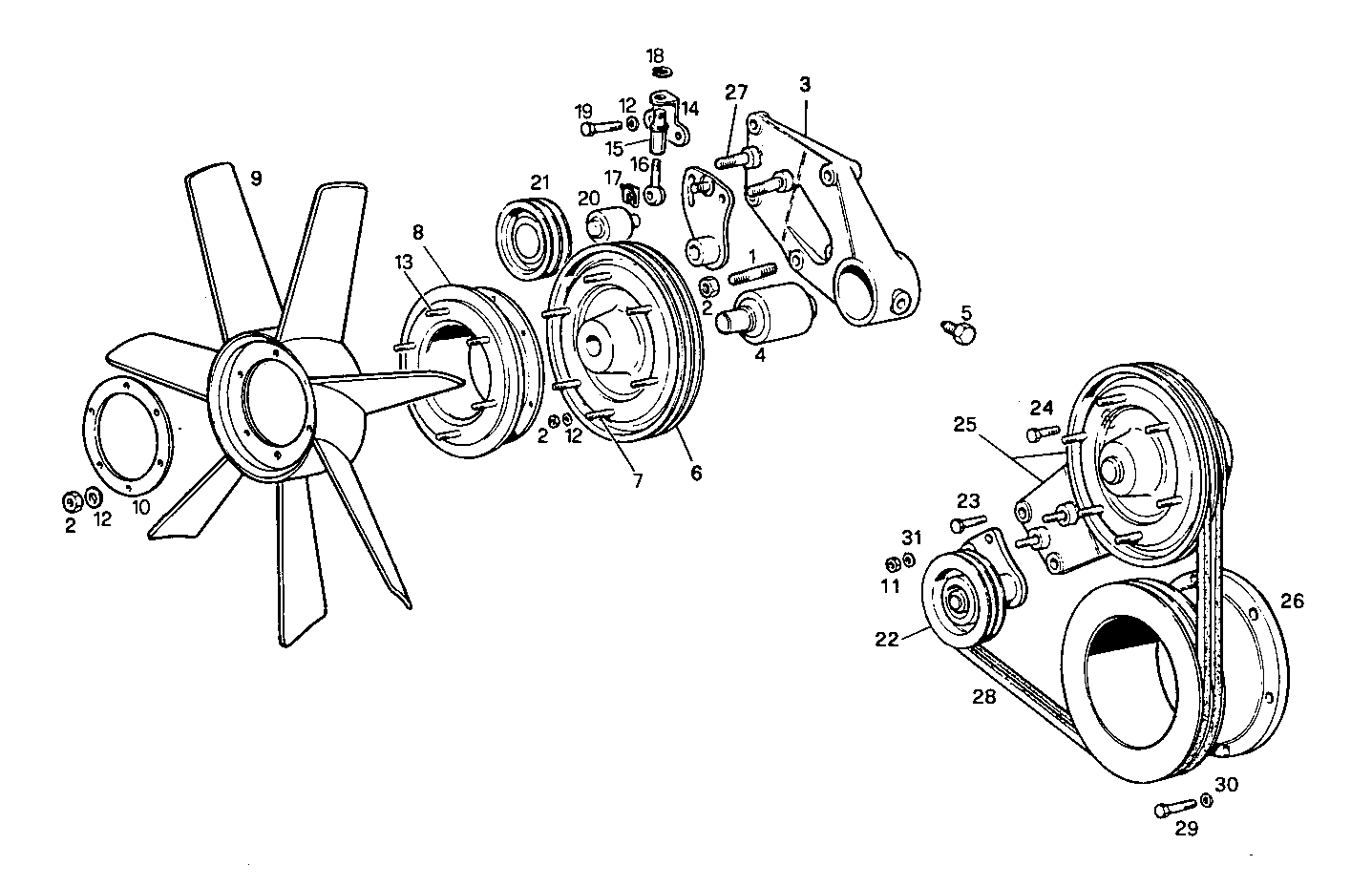

A08010020 PUSHER FAN - high position

Iveco/FPT PUSHER FAN

Item Part number Description
1 16748124 STUD
2 17037931 HEXAGON NUT M8X1,25
3 8106656 SUPPORT
4 4708256 ENGINE BEARINGS
5 4606033 SCREW
6 8110417 PULLEY
7 16729324 STUD M8X12X20 MM
8 4936690 HUB
9 8021733 FAN Ø700 MM
10 4933279 RING
11 17038731 NUT M10X1,25
12 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
13 13516621 STUD M8X16 MM
14 4718512 RETAINER
15 4699000 NUT
16 4699001 TIE ROD
17 4699549 CLIP
18 17081976 CIRCLIP
19 16605534 HEXAGON BOLT M8X20 MM (10.9)
20 4731484 ENGINE BEARINGS
21 4732585 WATER PUMP PULLEY
22 4936685 BELT TENSIONER ASSY
23 16045821 HEXAGON BOLT M8X130 MM
24 16046021 HEXAGON BOLT M8X140 MM
25 8106675 SUPPORT ASSY
26 8106657 PULLEY
27 13449730 STUD M10X15X30 MM
28 8106690 V-BELT KIT
29 16043621 HEXAGON BOLT M8X25 MM
30 17089774 SPRING WASHER Ø8,4X22 MM SP=2,4 MM
31 4513436 SUPPORT RING Ø10X21X2 MM
