8281Si10.00

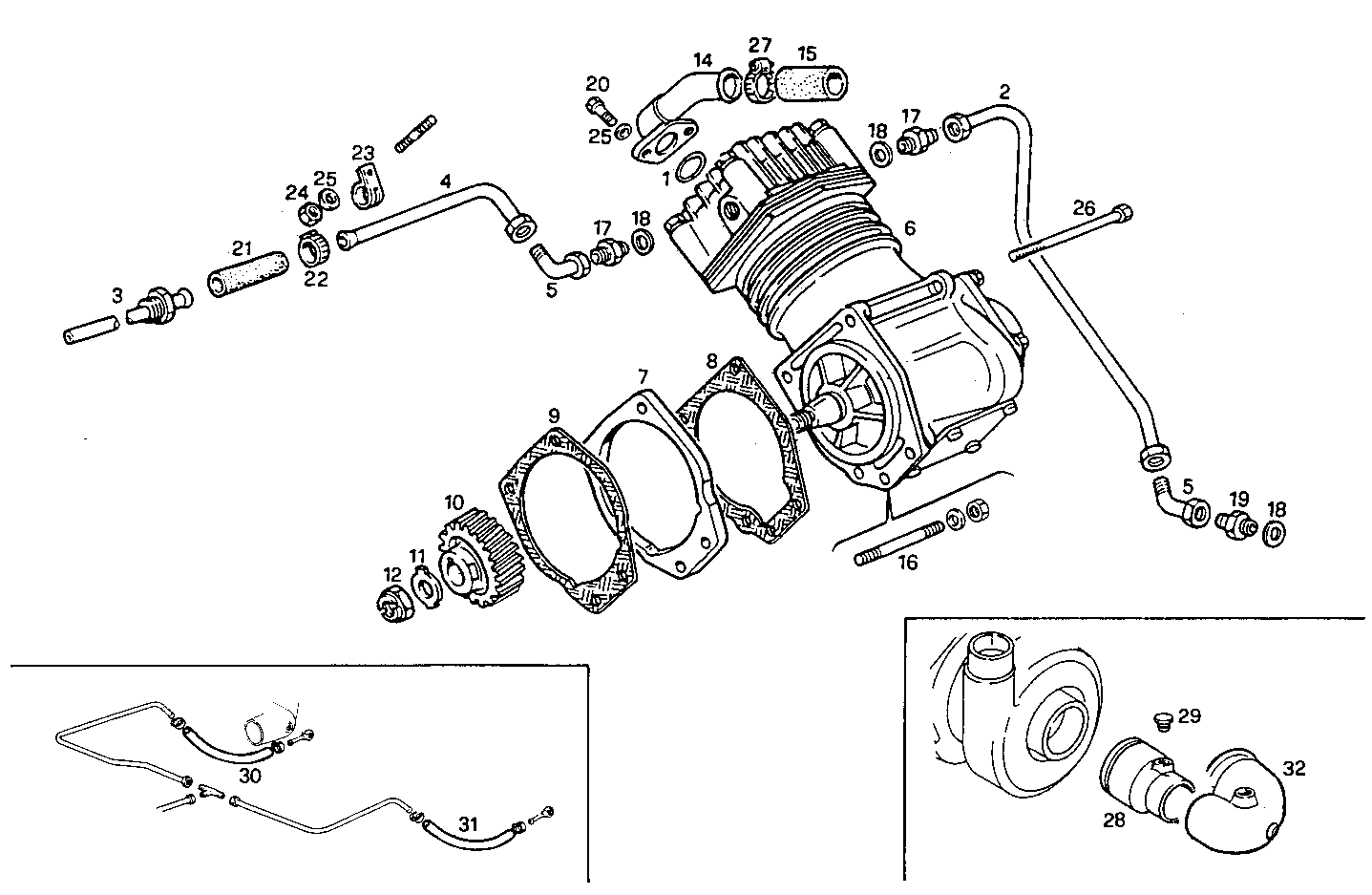

A18050011 AIR COMPRESSOR - 250cc MARELLI
| Item | Part number | Description |
|---|---|---|
| 1 | 619376 | FLAT ENGINE GASKET |
| 2 | 8007459 | WATER PIPE |
| 3 | 4685280 | THREADED UNION |
| 4 | 8007471 | WATER PIPE |
| 5 | 16512111 | PIPE SOCKET |
| 6 | 98421107 | AIR COMPRESSOR ASSY |
| 7 | 4672628 | SPACING BAR |
| 8 | 4864032 | FLAT ENGINE GASKET |
| 9 | 4715152 | FLAT ENGINE GASKET |
| 10 | 4688638 | COMP. DRIVE GEAR |
| 11 | 4709364 | LOCKING PLATE |
| 12 | 4709365 | HEXAGON NUT |
| 14 | 4609413 | AIR PIPE/DUCT |
| 15 | 4722197 | RUBBER SLEEVE |
| 16 | 13546721 | STUD M10X1,25X40 |
| 17 | 4802309 | PIPE SOCKET |
| 18 | 10257060 | SEAL GASKET Ø16X22 MM SP=1,5 MM |
| 19 | 4741602 | THREADED UNION LEFT |
| 20 | 16043521 | SCREW M8X22 |
| 21 | 10141486 | RUBBER SLEEVE Ø15 MM |
| 22 | 12173790 | CLIP Ø18-28 MM |
| 23 | 10450490 | PIPE CLIP Ø16 MM |
| 24 | 17037931 | HEXAGON NUT M8X1,25 |
| 25 | 11193871 | WASHER Ø8X16X1,4 MM |
| 26 | 15969921 | SCREW |
| 27 | 12173890 | CLIP Ø25/40 MM |
| 28 | 8109384 | SPACING BAR |
| 29 | 8105144 | PLUG |
| 30 | 19062987 | AIR HOSE L=300 MM |
| 31 | 19063487 | HOSE L=400 MM |
| 32 | 42051703 | RUBBER SLEEVE |
