8281Si10.00

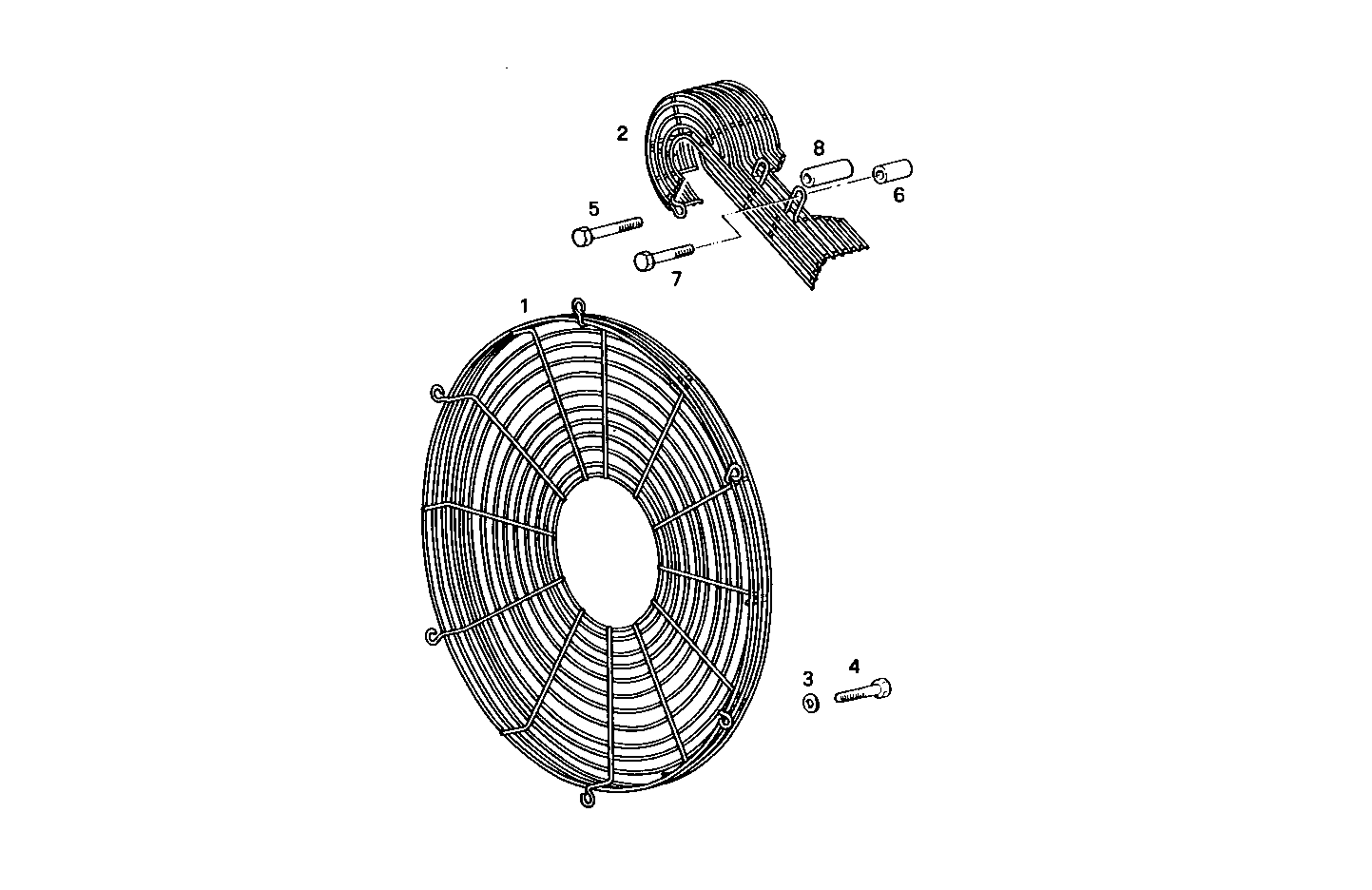

A48010006 GUARD - for fan and belts
| Item | Part number | Description |
|---|---|---|
| 1 | 8101181 | PROTECTION |
| 2 | 8101182 | PROTECTION |
| 3 | 11193971 | SPRING WASHER Ø8,4 MM |
| 4 | 16043221 | HEXAGON BOLT M8X16 MM |
| 5 | 16242124 | HEXAGON BOLT M12X1,25X200 MM |
| 6 | 4930712 | SPACING BAR |
| 7 | 15888721 | HEXAGON BOLT M10X1,25X55 MM |
| 8 | 8106580 | SPACING BAR |
