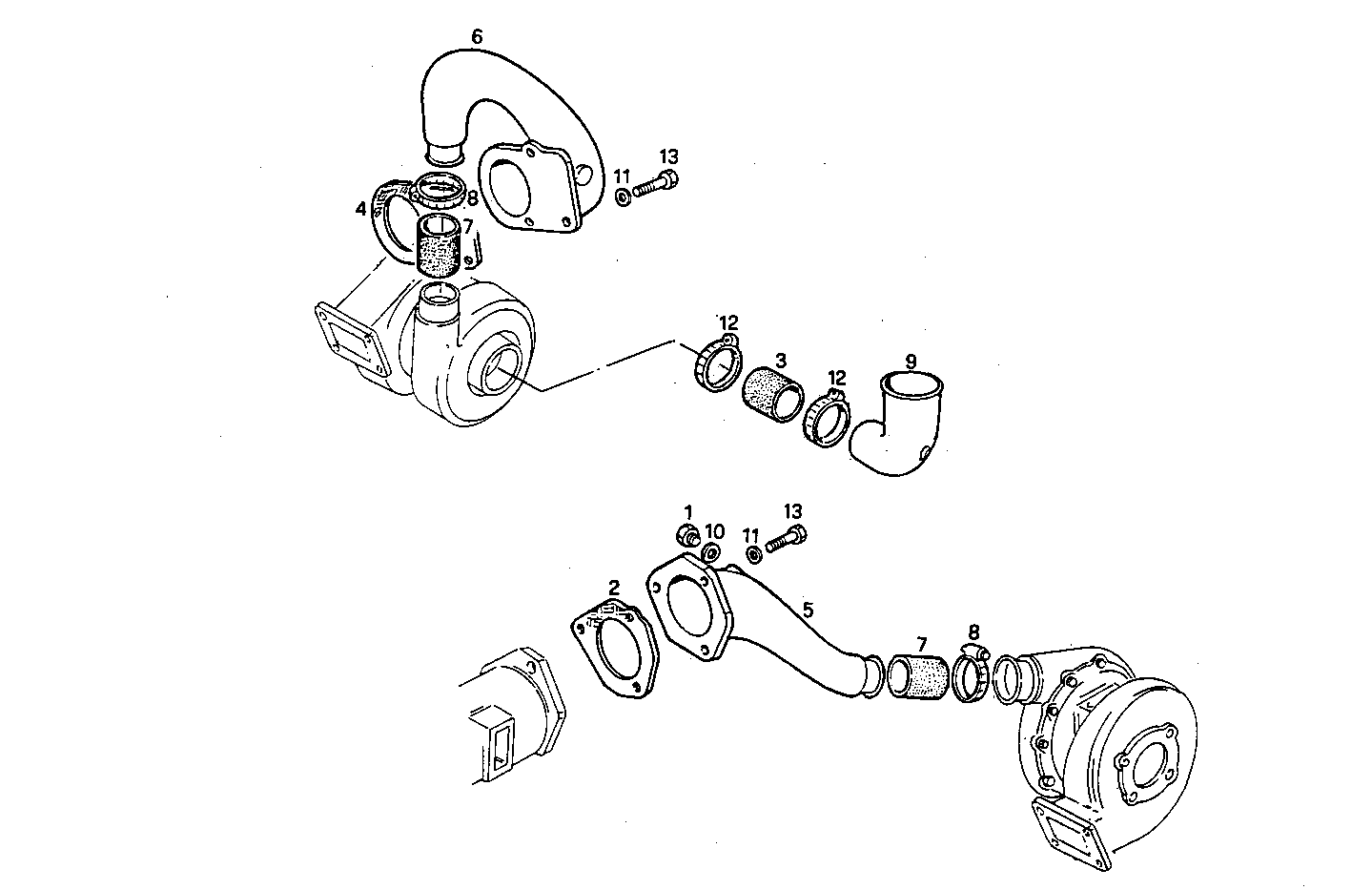

2420.034 SUPERCHARGING LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 4577310 | THREADED PLUG |
| 2 | 500301319 | INTAKE ELBOW GASK. |
| 3 | 8101505 | RUBBER SLEEVE |
| 4 | 4731275 | FLAT ENGINE GASKET |
| 5 | 4764413 | INTAKE ELBOW |
| 6 | 4765058 | INTAKE ELBOW |
| 7 | 98420479 | WATER HOSE |
| 8 | 17764891 | CLIP Ø40/60 MM |
| 9 | 8109999 | INTAKE ELBOW |
| 10 | 16508460 | WASHER 22x27x1,5 |
| 11 | 17089934 | WASHER |
| 12 | 17765192 | HOSE CLIP Ø70-90 MM |
| 13 | 16625734 | HEXAGON BOLT M8X35 |
