8281Si15.00A500

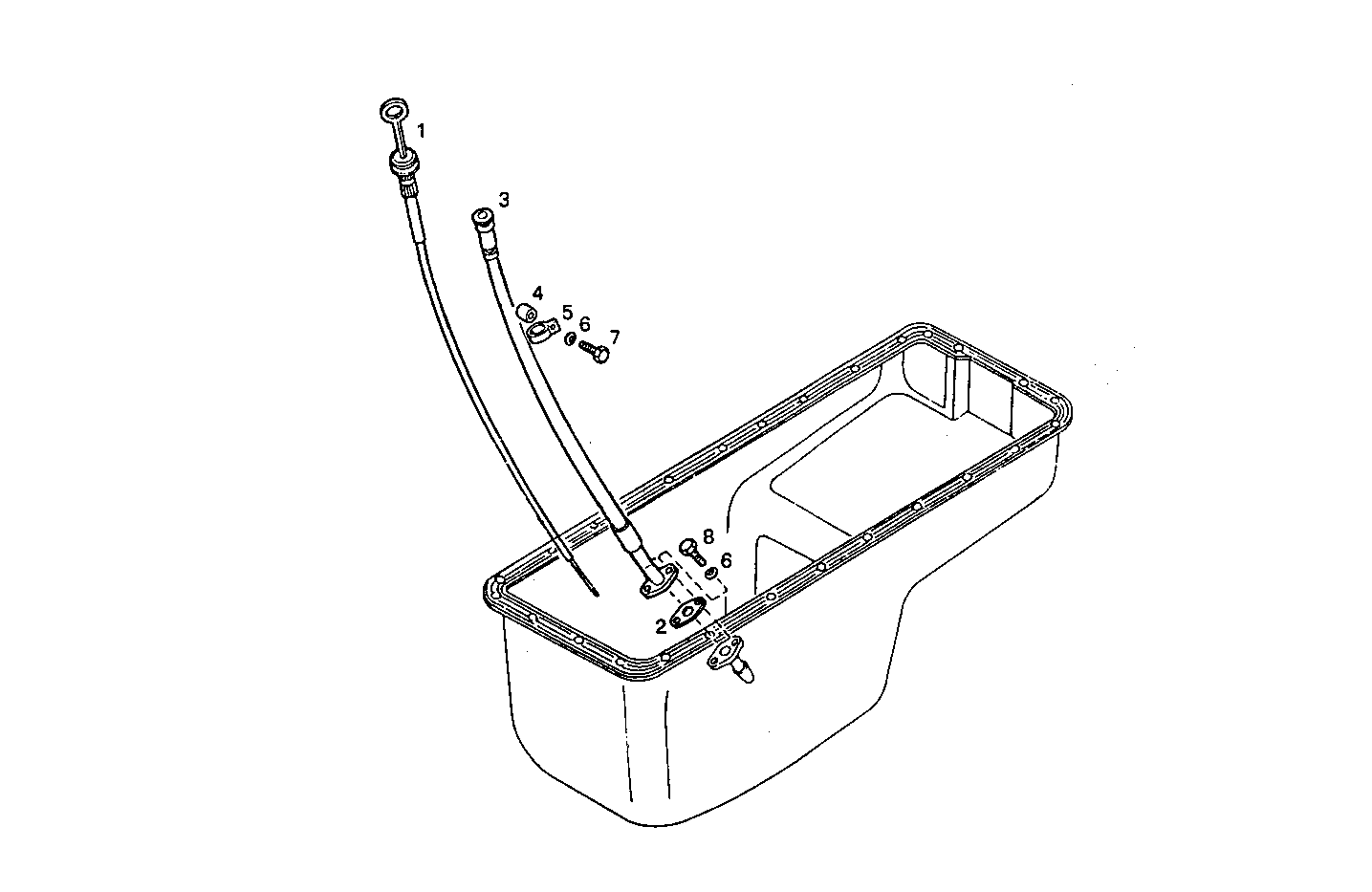

2710.008 OIL DIPSTICK
| Item | Part number | Description |
|---|---|---|
| 1 | 4696147 | OIL DIPSTICK |
| 2 | 98401052 | FLAT ENGINE GASKET |
| 3 | 4696150 | ROD GUIDE |
| 4 | 13605911 | SPACER SP=8,5 MM |
| 5 | 10450390 | PIPE CLIP Ø20X26 MM SP=1,5 MM |
| 6 | 17089574 | WASHER Ø8X16 MM |
| 7 | 16605734 | HEXAGON BOLT M8X30 MM |
| 8 | 16605524 | HEXAGON BOLT M8X20 MM |
