8281Si15.00A500

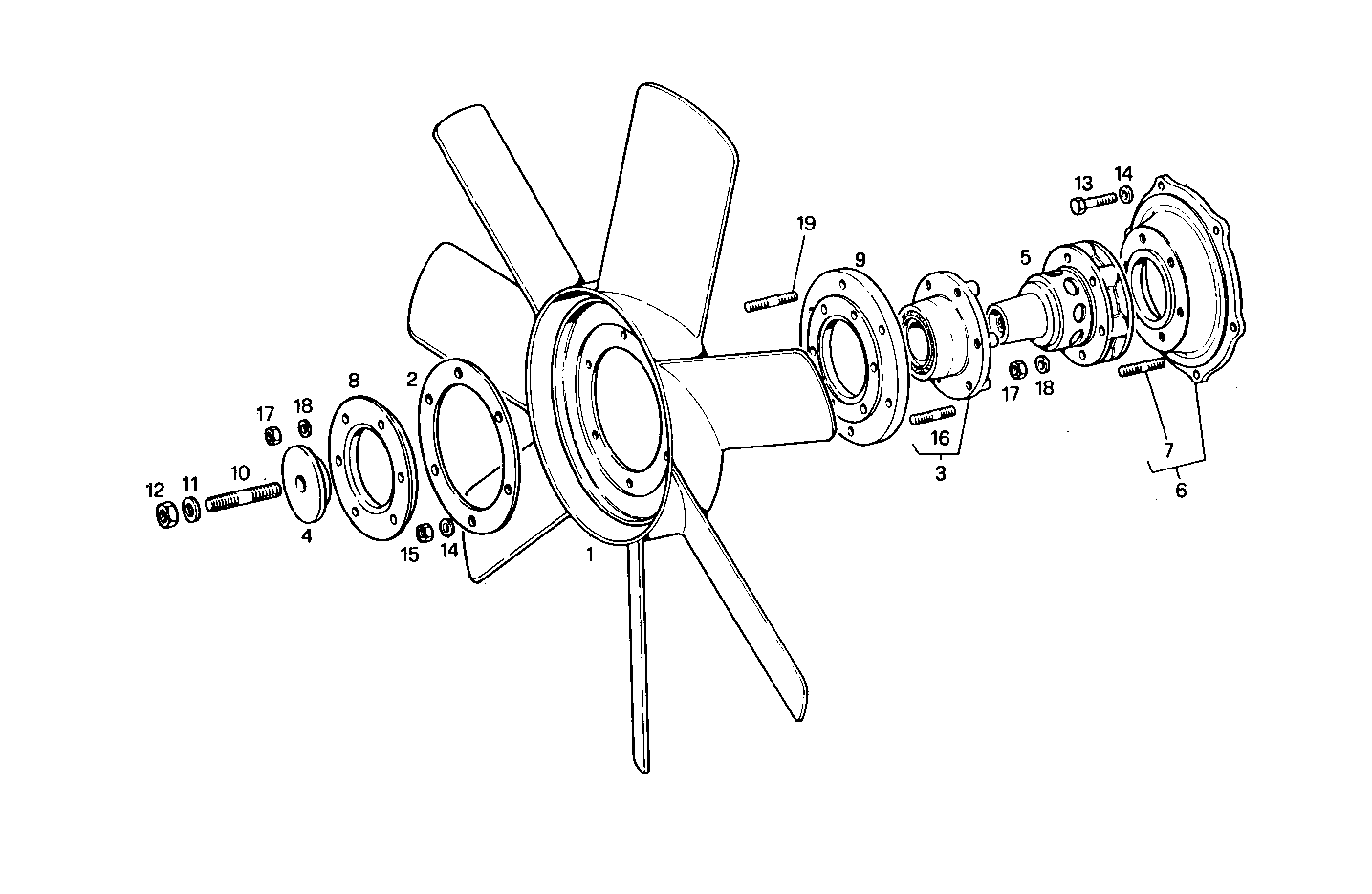

A08010021 PUSHER FAN - on engine axis
| Item | Part number | Description |
|---|---|---|
| 1 | 8021733 | FAN �700 MM |
| 2 | 4933279 | RING |
| 3 | 61586274 | FLEXIBLE COUPLING ASSY |
| 4 | 61586262 | WASHER |
| 5 | 4772997 | HUB |
| 6 | 8106697 | SPACING BAR ASSY |
| 7 | 13546821 | STUD M10X1,25X20X45 MM |
| 8 | 8104130 | SPACING BAR |
| 9 | 8104329 | RING |
| 10 | 13561721 | STUD |
| 11 | 11200279 | SPRING WASHER �17 MM |
| 12 | 12164111 | HEXAGON NUT M16X1,5 |
| 13 | 16043621 | HEXAGON BOLT M8X25 MM |
| 14 | 11193879 | SPRING WASHER �8X16 MM |
| 15 | 17037931 | HEXAGON NUT M8X1,25 |
| 16 | 13546621 | STUD M10X1,25X20X35 MM |
| 17 | 12164711 | HEXAGON NUT M10X1,25 |
| 18 | 11190579 | SPRING WASHER �10X20 MM SP=2,3 |
| 19 | 16746524 | STUD M8X16X16 |
