8281Si15.00A580

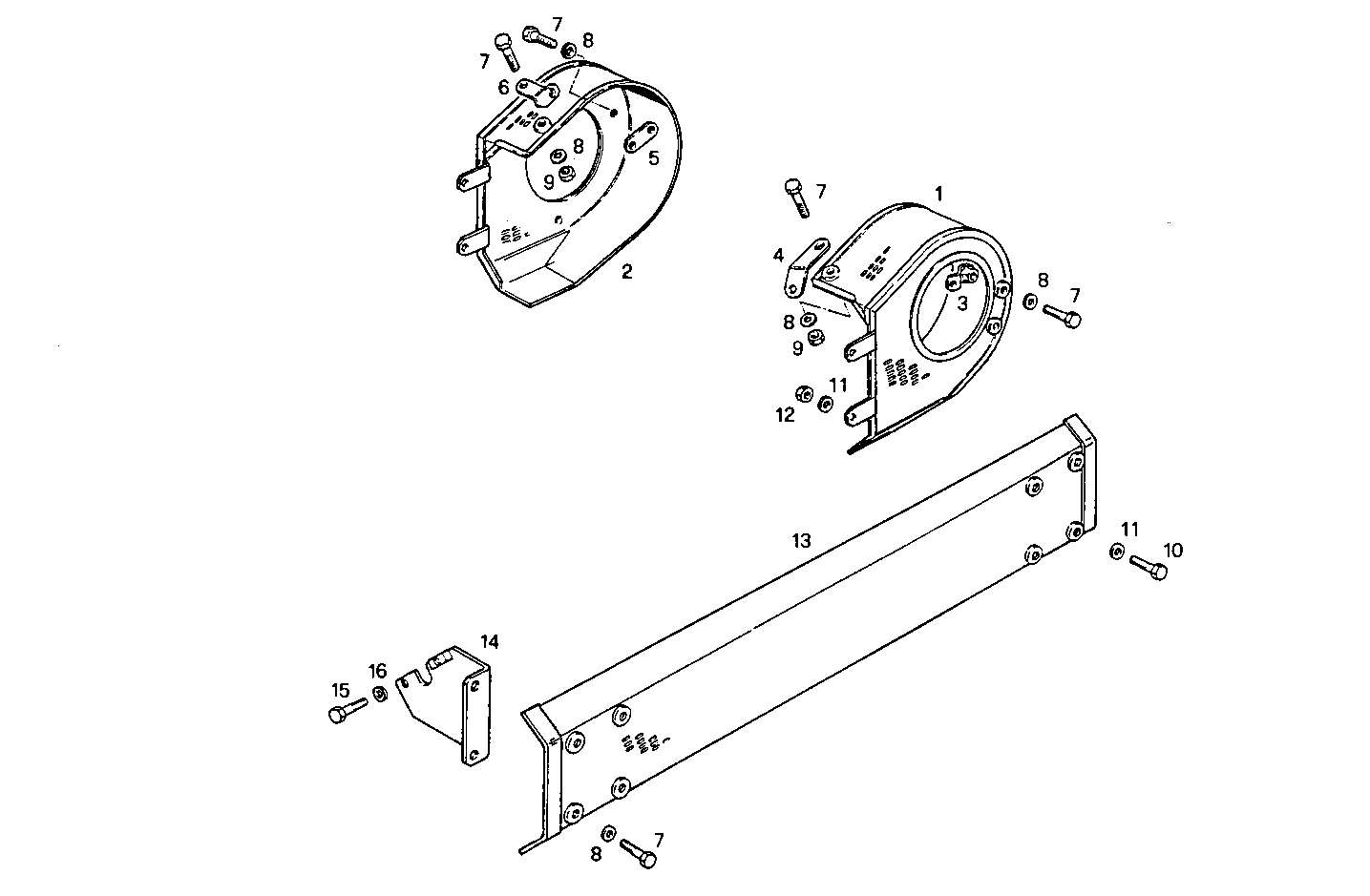

5770.012 SHIELDS
| Item | Part number | Description |
|---|---|---|
| 1 | 8107194 | PROTECTION |
| 2 | 8107195 | PROTECTION |
| 3 | 8107203 | RETAINER |
| 4 | 8008962 | RETAINER |
| 5 | 8107204 | RETAINER |
| 6 | 8107409 | RETAINER |
| 7 | 16043221 | HEXAGON BOLT M8X16 MM |
| 8 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 9 | 17037931 | HEXAGON NUT M8X1,25 |
| 10 | 15970521 | HEXAGON BOLT M10X20 MM |
| 11 | 11190579 | SPRING WASHER Ø10X20 MM SP=2,3 |
| 12 | 17038221 | HEXAGON NUT M10 |
| 13 | 8106560 | PROTECTION |
| 14 | 8106561 | RETAINER |
| 15 | 10902821 | HEXAGON BOLT M6X30 MM |
| 16 | 17088474 | WASHER Ø6X12 MM |
