8281Si15.00A580

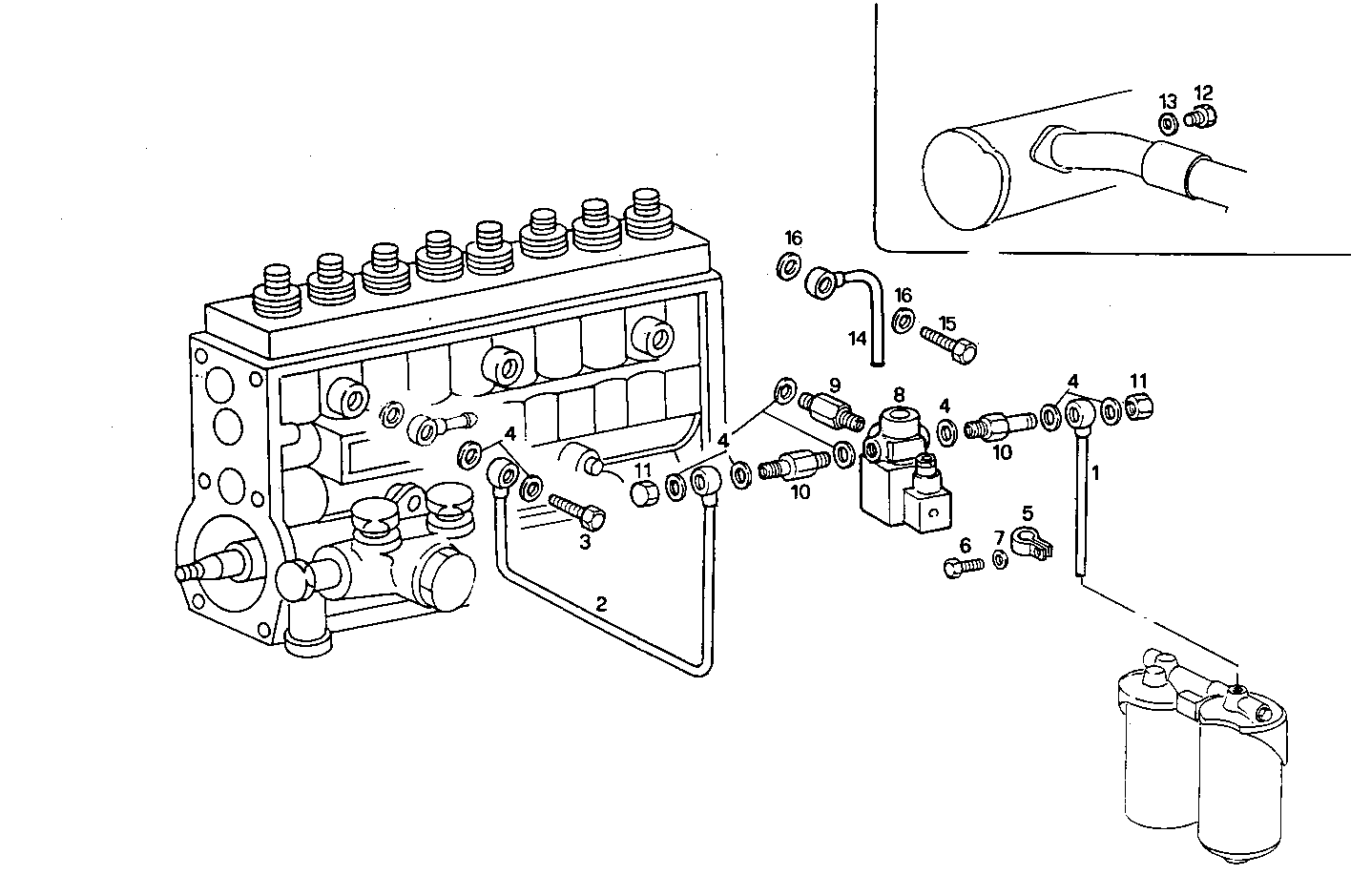

A28010021/03 ELECTRONIC GOVERNOR WOODWARD - 24V
| Item | Part number | Description |
|---|---|---|
| 1 | 8012546 | FUEL LINE |
| 2 | 8108943 | FUEL LINE |
| 3 | 4936577 | SCREW CONNECTOR |
| 4 | 10280060 | WASHER Ø14X20 MM SP=1,5 MM |
| 5 | 17314890 | CLIP |
| 6 | 16603524 | SCREW M6X12 MM (8.8) |
| 7 | 17088474 | WASHER Ø6X12 MM |
| 8 | 8108944 | ELECTROVALVE |
| 9 | 4929626 | PIPE SOCKET |
| 10 | 4929627 | PIPE SOCKET |
| 11 | 10182817 | LOCK PLUG |
| 12 | 10300571 | PLUG M12X1,5 |
| 13 | 10296160 | SEAL GASKET Ø12X18 MM SP=1 MM |
| 14 | 8012556 | FUEL LINE |
| 15 | 61320123 | SCREW CONNECTOR |
| 16 | 98474308 | SEAL GASKET Ø14X22 MM |
