8281SM32.10

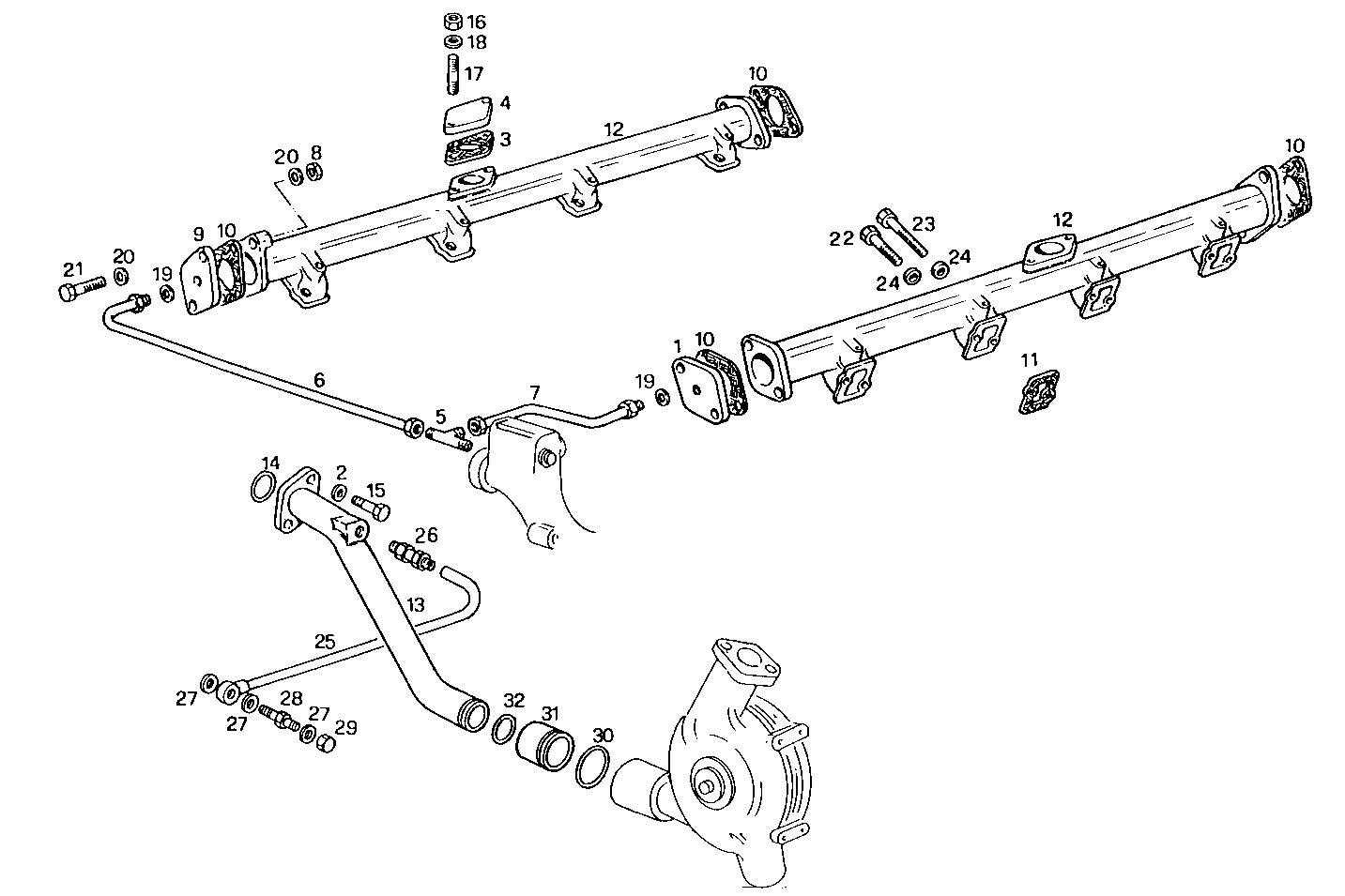

3210.027/01 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 8112000 COVER
2 17089774 SPRING WASHER Ø8,4X22 MM SP=2,4 MM
3 4863540 GASKET
4 4721125 COVER
5 8112120 PIPE SOCKET
6 8112007 WATER PIPE
7 8112006 WATER PIPE
8 17038221 HEXAGON NUT M10
9 8112001 COVER
10 4863528 GASKET
11 98418857 FLAT ENGINE GASKET
12 4717500 INTAKE ELBOW
13 8109617 WATER PIPE
14 17284281 O-RING Ø55,24X2,62 MM
15 16605624 HEXAGON BOLT M8X25 MM (8.8)
16 17037931 HEXAGON NUT M8X1,25
17 16746724 STUD M8X25 MM
18 17089574 WASHER Ø8X16 MM
19 8024645 O-RING Ø4 MM
20 17090274 WASHER Ø10X20 MM
21 11306921 SCREW M10X1,25X30
22 16046124 SCREW
23 16606424 HEXAGON BOLT M8X65 MM
24 12646721 WASHER Ø8X20 MM
25 8014558 WATER PIPE
26 8111316 PIPE SOCKET
27 4858605 WASHER Ø8X12 MM
28 11901611 PIPE SOCKET
29 11902017 LOCK PLUG M8
30 17289781 O-RING Ø47,22 MM SP=3,55 MM
31 8109615 CONNECTOR SLEEVE
32 17283481 O-RING Ø42,5 MM SP=2,6 MM
