8281SRE10.00

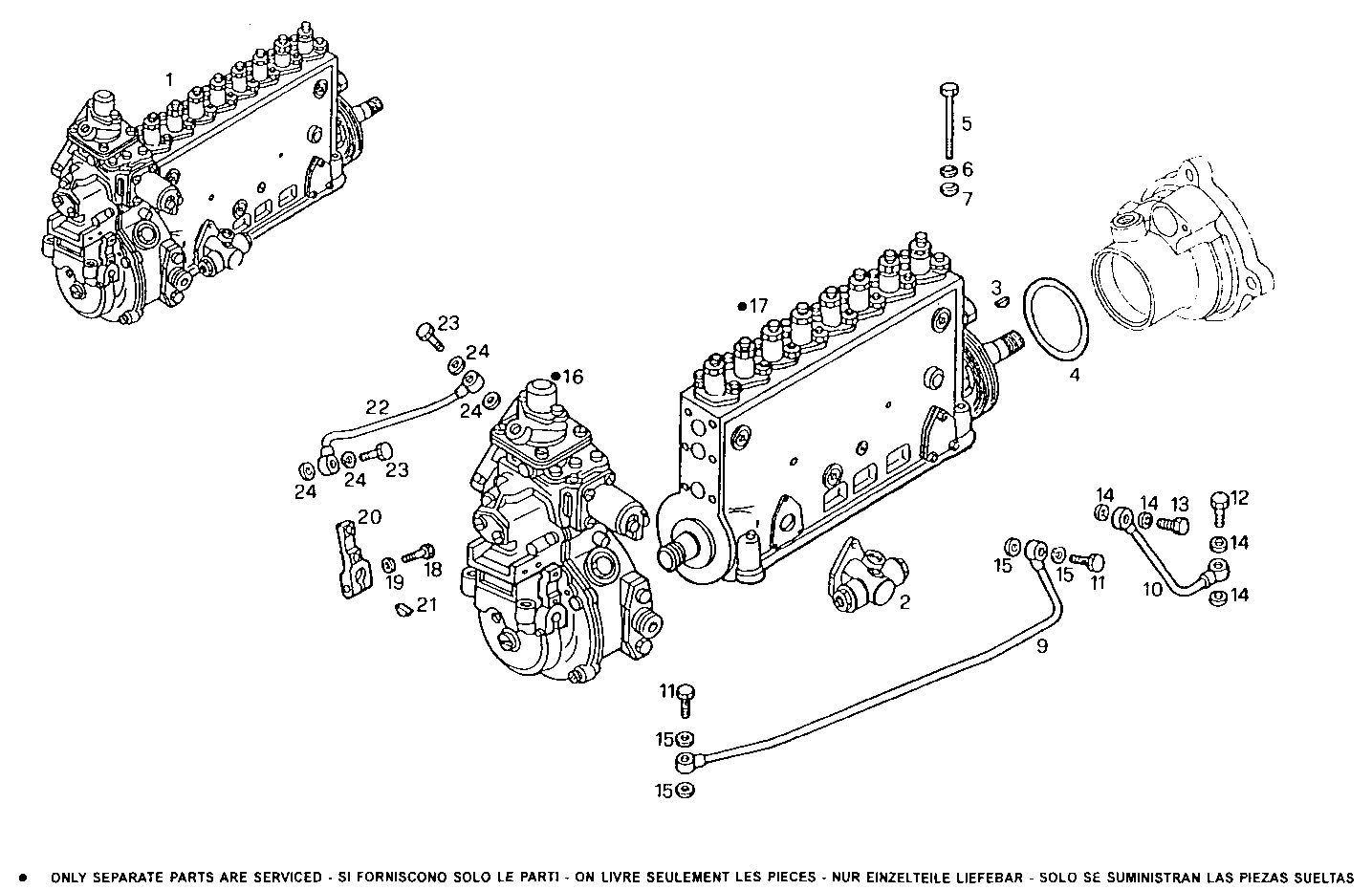

1400.223 INJECTION PUMP ASSY
| Item | Part number | Description |
|---|---|---|
| 1 | 8027317 | INLINE INJECT.PUMP ASSY |
| 2 | 93160510 | FUEL PUMP OPT. |
| 3 | 10205720 | KEY 3X5 MM |
| 4 | 61317062 | O-RING |
| 5 | 15971330 | HEXAGON BOLT M10X75 MM |
| 6 | 17090274 | WASHER Ø10X20 MM |
| 7 | 756671 | WASHER |
| 9 | 98420456 | OIL LINE |
| 10 | 98420453 | OIL LINE |
| 11 | 4864083 | SCREW CONNECTOR M14X1,5X30 MM |
| 12 | 4864080 | SCREW CONNECTOR M10X1,25 |
| 13 | 4864079 | SCREW CONNECTOR M10X1 |
| 14 | 98474305 | WASHER Ø10X17 MM SP=2,3 |
| 15 | 98474308 | SEAL GASKET Ø14X22 MM |
| 18 | 10902221 | HEXAGON BOLT M6X16 MM |
| 19 | 17088474 | WASHER Ø6X12 MM |
| 20 | 93190091 | ARM ASSY |
| 22 | 98485351 | PIPE LDA |
| 23 | 4864082 | BANJO BOLT M12X1,5X25 MM |
| 24 | 98474306 | WASHER Ø12X20 MM SP=1,9 MM |
