8281SRE10.00

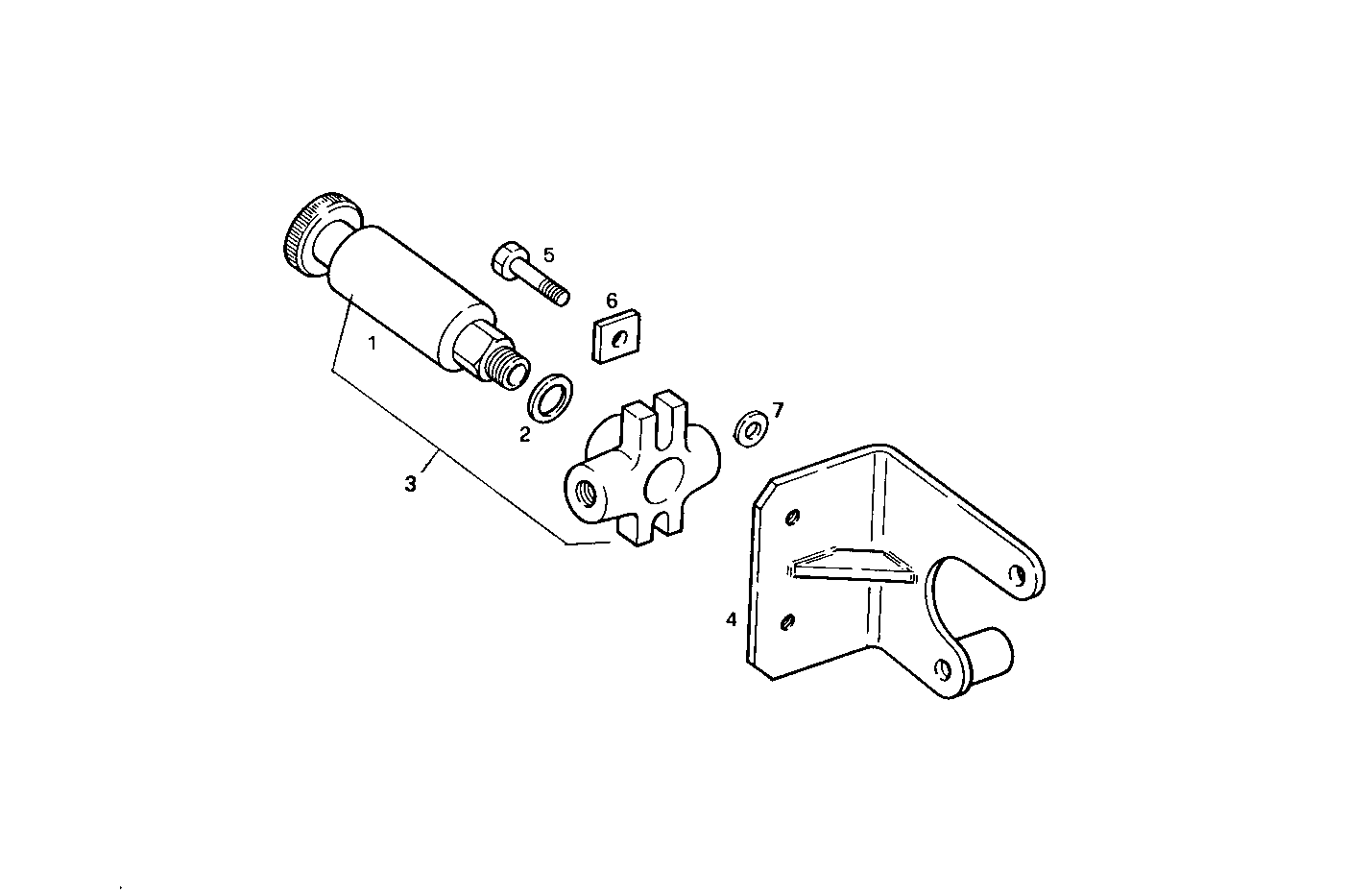

2010.017 FUEL PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 771388 | AUX.FUEL PUMP |
| 2 | 98474309 | WASHER Ø16X24 MM SP=1,9 MM |
| 3 | 4797319 | HAND PUMP ASSY |
| 4 | 8022427 | RETAINER |
| 5 | 16603824 | SCREW M6X25 |
| 6 | 7300648 | LOCKING PLATE |
| 7 | 16665404 | WASHER Ø6X12X1,6 MM |
