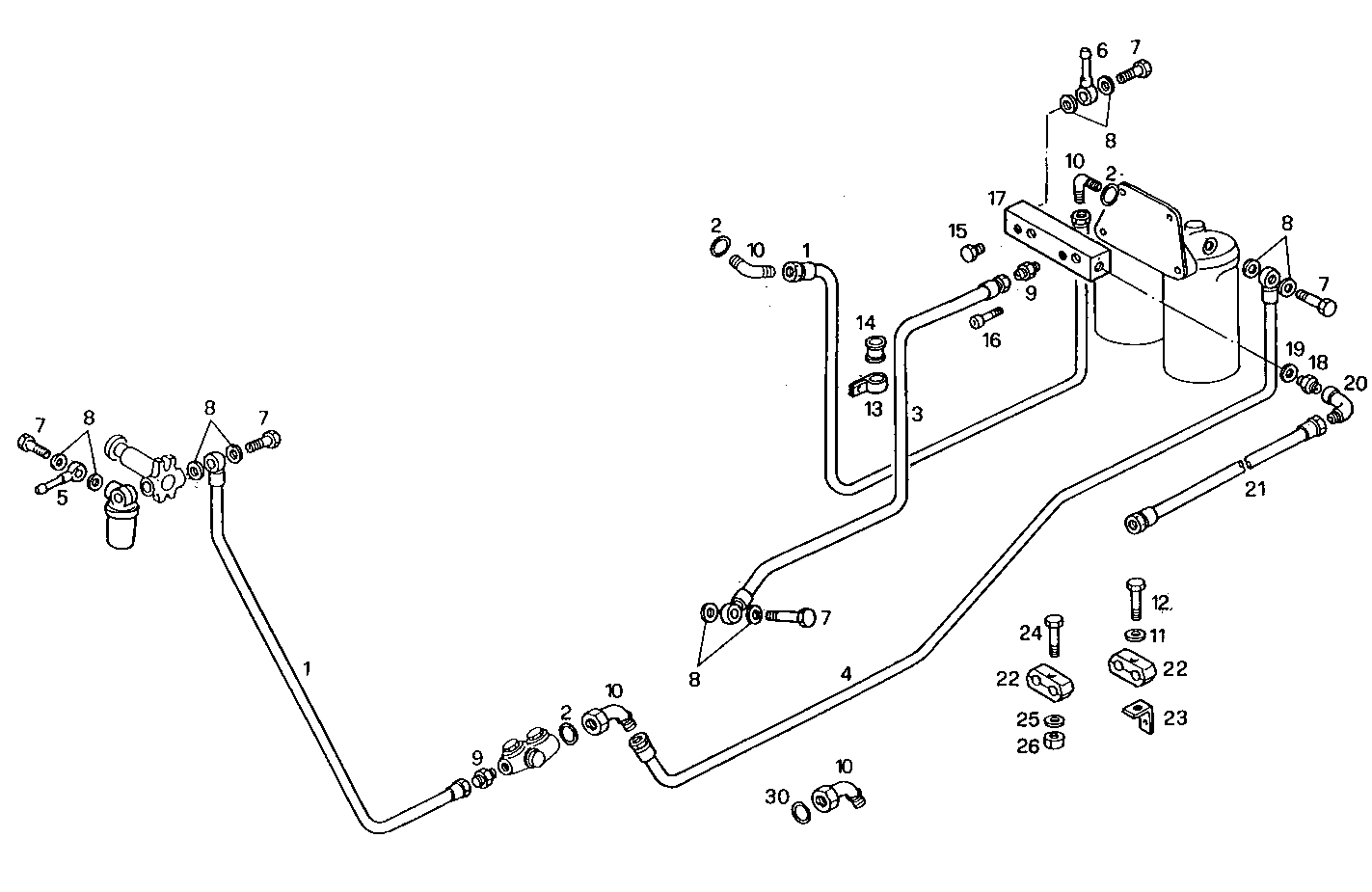

| Item |
Part number |
Description |
|
1 |
8019052 |
FLEXIBLE FUEL PIPE L=1000 MM |
|
2 |
17281581 |
O-RING Ø12,37X2,62 MM |
|
3 |
8022762 |
FUEL LINE |
|
4 |
8019777 |
FUEL LINE |
|
5 |
98404882 |
PIPE SOCKET Ø8 MM |
|
6 |
98413896 |
PIPE SOCKET Ø8 MM |
|
7 |
4864083 |
SCREW CONNECTOR M14X1,5X30 MM |
|
8 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
|
9 |
16500214 |
THREADED UNION M14X1,5/M16X1,5 |
|
10 |
8025927 |
ELBOW COUPLING |
|
10 |
16603921 |
HEXAGON BOLT M6X30 MM |
|
11 |
17088974 |
SPRING WASHER Ø6X18X1,4 MM |
|
13 |
8019420 |
CLIP |
|
14 |
4757122 |
RUBBER PAD |
|
15 |
16992311 |
LOCK PLUG M14X1,5 |
|
16 |
16691224 |
CYLIND-HEAD SCREW M8X55 MM |
|
17 |
8019035 |
DISTRIBUTOR |
|
18 |
16500011 |
PIPE SOCKET |
|
19 |
4858606 |
GASKET Ø10X14X1 MM |
|
20 |
16503811 |
ELBOW COUPLING |
|
21 |
8022761 |
FUEL LINE |
|
22 |
8010505 |
CLAMP Ø16 MM |
|
23 |
8110499 |
RETAINER |
|
24 |
16605824 |
HEXAGON BOLT M8X35 MM |
|
25 |
17094914 |
WASHER 8x16 |
|
26 |
17037931 |
HEXAGON NUT M8X1,25 |
