8281SRE10.00

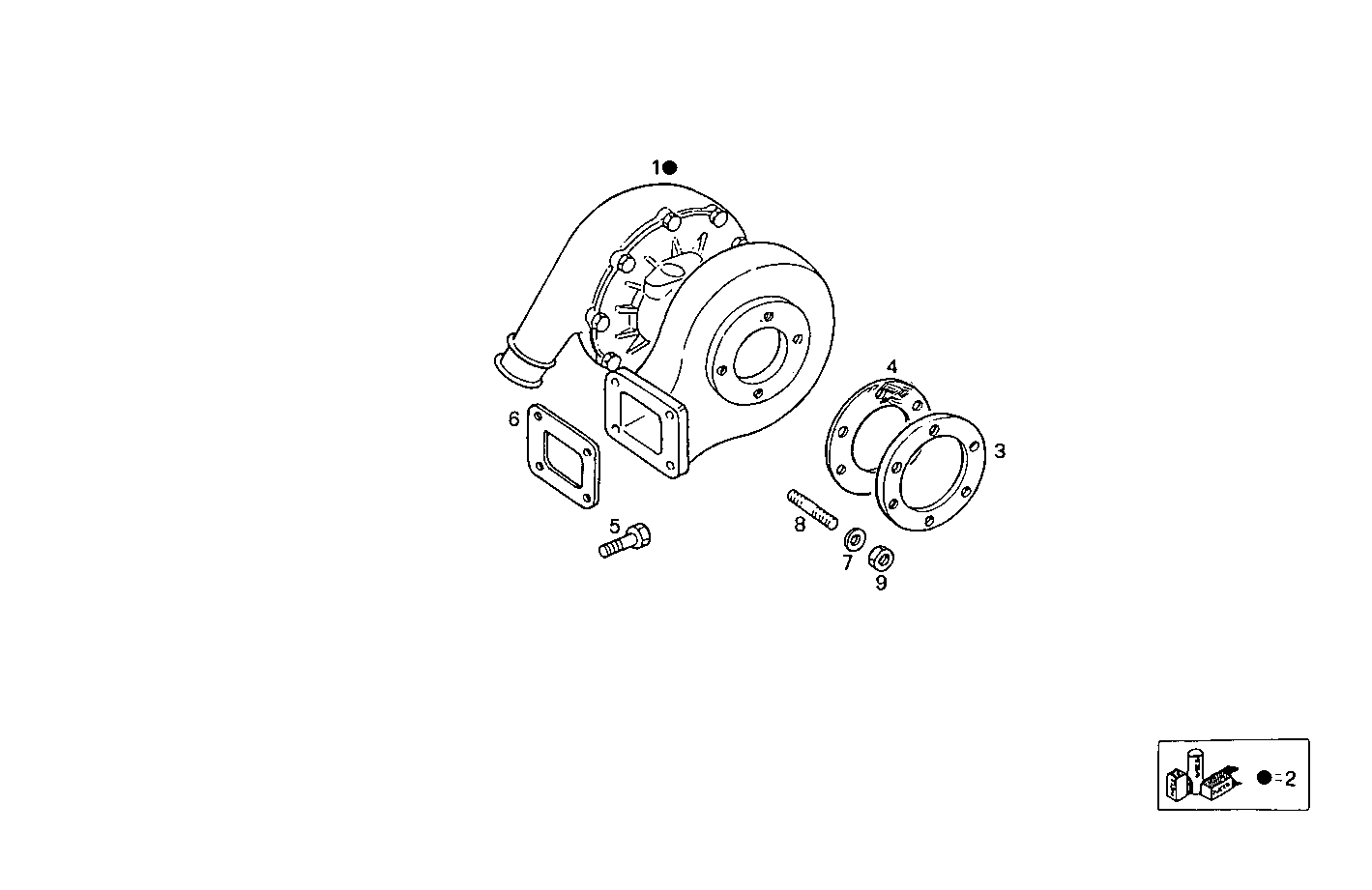

2400.124 TURBOCHARGER
| Item | Part number | Description |
|---|---|---|
| 1 | 98435386 | TURBOCHARGER ASSY GARRETT - LEFT |
| 2 | 93161431 | KIT-TURBOCHARGER |
| 3 | 8113659 | FLANGE |
| 4 | 4729026 | GASKET |
| 5 | 4830633 | HEXAGON BOLT M10X28 MM |
| 6 | 4632123 | GASKET |
| 7 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 8 | 16729534 | STUD M8X30 MM |
| 9 | 17037931 | HEXAGON NUT M8X1,25 |
