8281SRE10.00

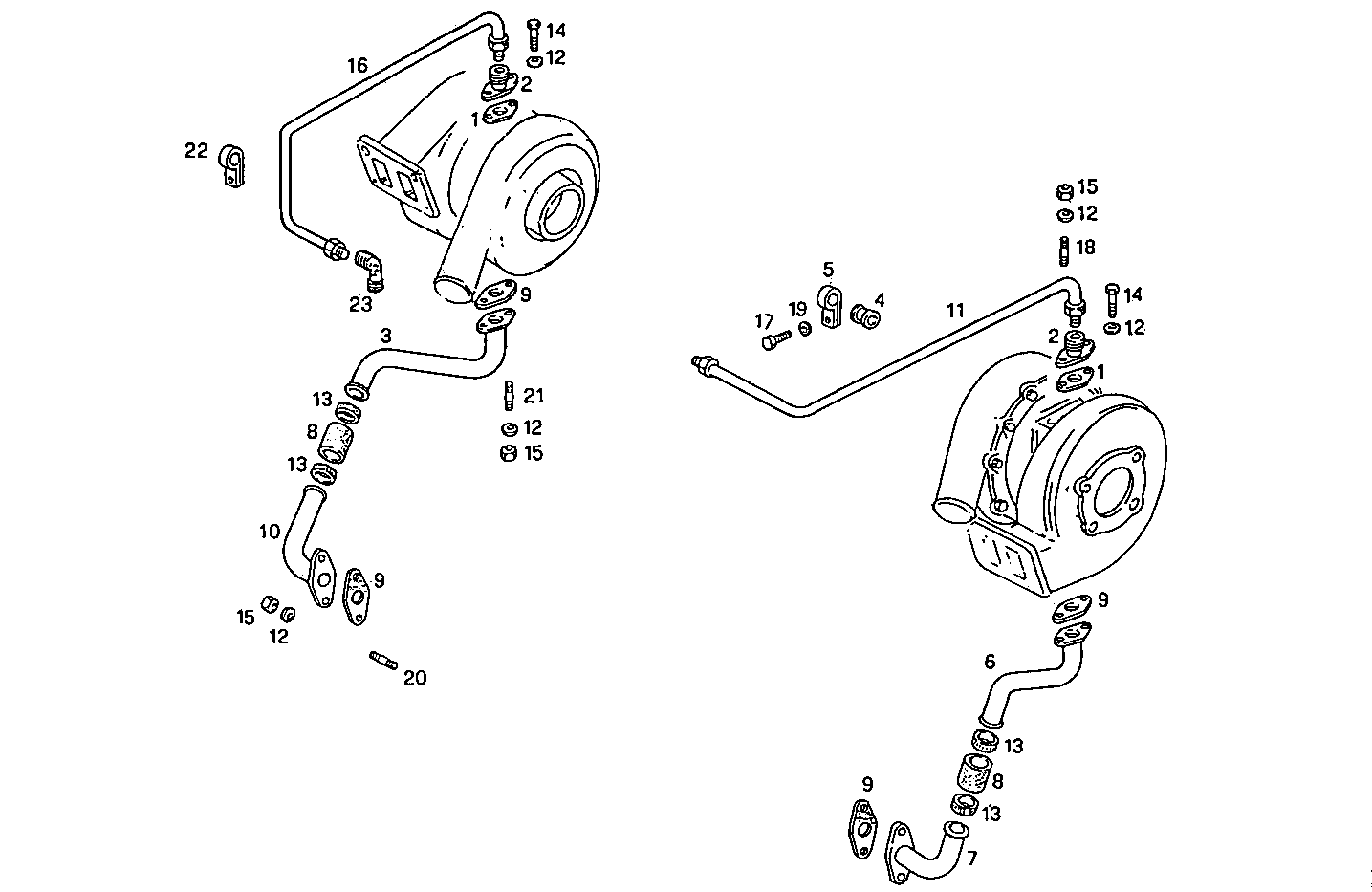

3010.118 LUBE OIL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 98415922 | FLAT ENGINE GASKET |
| 2 | 4764795 | THREADED UNION |
| 3 | 98427651 | OIL LINE RIGHT |
| 4 | 4755964 | RUBBER PAD |
| 5 | 4755963 | FASTENING BRACKET |
| 6 | 98427652 | OIL LINE LEFT |
| 7 | 98427654 | OIL LINE LEFT |
| 8 | 98420478 | RUBBER SLEEVE |
| 9 | 98415923 | FLAT ENGINE GASKET |
| 10 | 98427653 | OIL LINE RIGHT |
| 11 | 98436050 | OIL LINE [up to 307842] |
| 12 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 13 | 17764691 | CLIP Ø25/40 MM |
| 14 | 16605524 | HEXAGON BOLT M8X20 MM |
| 15 | 17037931 | HEXAGON NUT M8X1,25 |
| 16 | 8022464 | OIL LINE |
| 17 | 16603524 | SCREW M6X12 MM (8.8) |
| 18 | 16746924 | STUD M8X35 MM |
| 19 | 17088974 | SPRING WASHER Ø6X18X1,4 MM |
| 20 | 16729424 | STUD M8X1,25X25 |
| 21 | 16729224 | STUD M8X16 MM |
| 22 | 4934319 | RETAINER |
| 23 | 16504111 | ELBOW COUPLING M18X1,5 |
