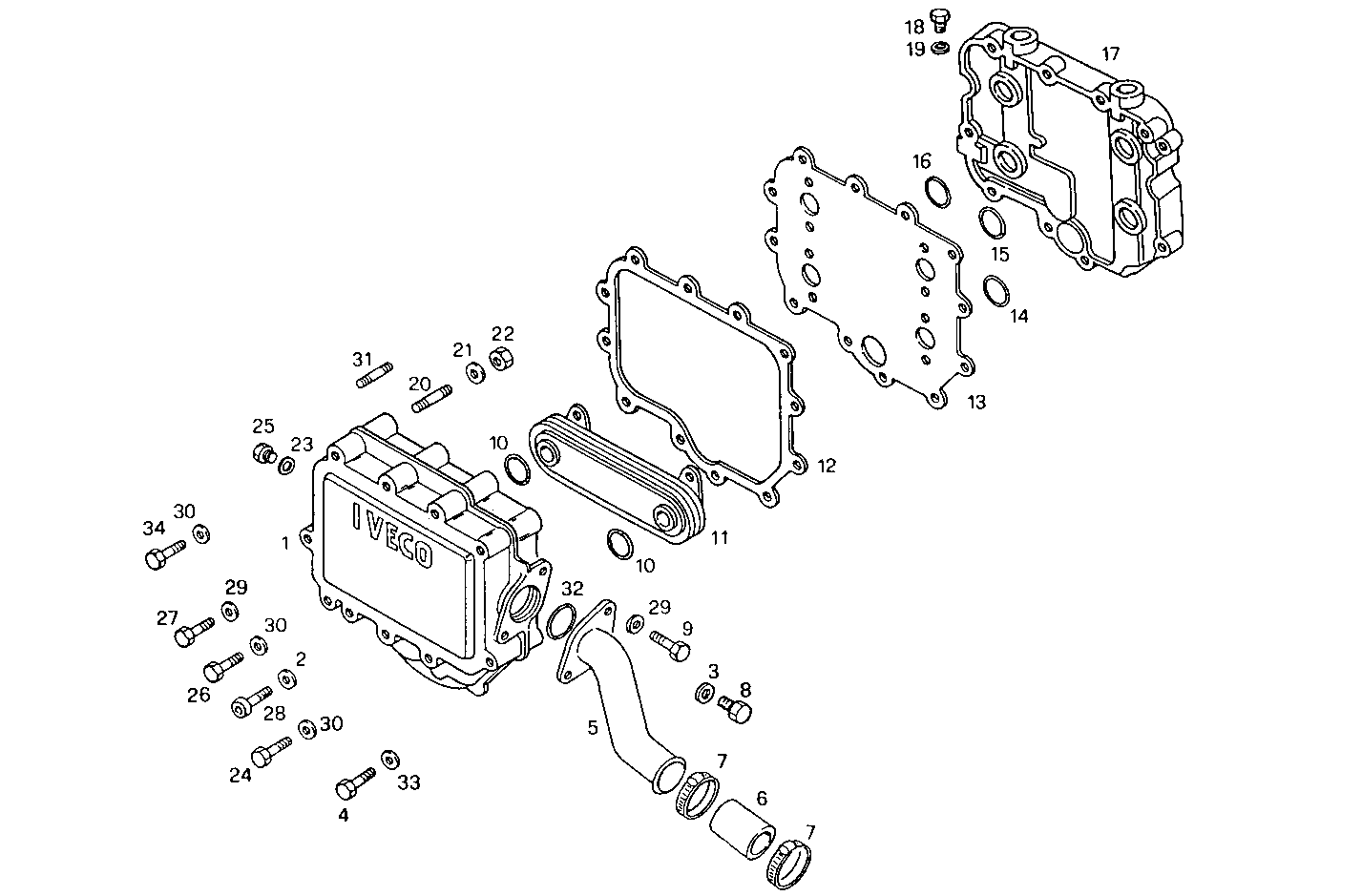

| Item |
Part number |
Description |
|
1 |
4799546 |
HEAT EXANGER BODY |
|
2 |
4760498 |
GASKET Ø8,65X14,35 MM |
|
3 |
11903211 |
LOCK PLUG M12X1,25 |
|
4 |
11343821 |
HEXAGON BOLT M10X1,25X50 MM |
|
5 |
4799544 |
WATER PIPE |
|
6 |
98421380 |
WATER HOSE |
|
7 |
17764992 |
CLIP Ø50-70 MM |
|
8 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
|
9 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
10 |
17283581 |
O-RING Ø44,12 MM SP=2,62 MM |
|
11 |
98415302 |
OIL COOLER |
|
12 |
98419012 |
FLAT ENGINE GASKET |
|
13 |
4799548 |
HEAT EXCHANG.COVER |
|
14 |
17283980 |
O-RING Ø50,47 MM SP=2,62 MM |
|
15 |
17282781 |
O-RING Ø31,42 MM SP=2,62 MM |
|
16 |
17282981 |
O-RING 2,62x34,59 |
|
17 |
4799550 |
SUPPORT ASSY |
|
18 |
16993611 |
THREADED PLUG M32X1,5 |
|
19 |
10265060 |
SEAL GASKET Ø32X38 MM SP=1,5 MM |
|
20 |
13516621 |
STUD M8X16 MM |
|
21 |
17089574 |
WASHER Ø8X16 MM |
|
22 |
17037931 |
HEXAGON NUT M8X1,25 |
|
23 |
4858606 |
GASKET Ø10X14X1 MM |
|
24 |
16606124 |
HEXAGON BOLT M8X50 MM |
|
25 |
4753563 |
PLUG M10X1,5 |
|
26 |
16606824 |
HEXAGON BOLT M8X100 MM |
|
27 |
16606724 |
HEXAGON BOLT M8X90 MM |
|
28 |
14306221 |
SCREW M8X16 |
|
29 |
17089774 |
SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
|
30 |
17094914 |
WASHER 8x16 |
|
31 |
13517221 |
STUD M8X12X30 MM |
|
32 |
17283681 |
O-RING Ø45,6 MM SP=2,62 MM |
|
33 |
17095104 |
WASHER Ø10X21X2 MM |
|
34 |
16606924 |
SCREW M8X110 |
