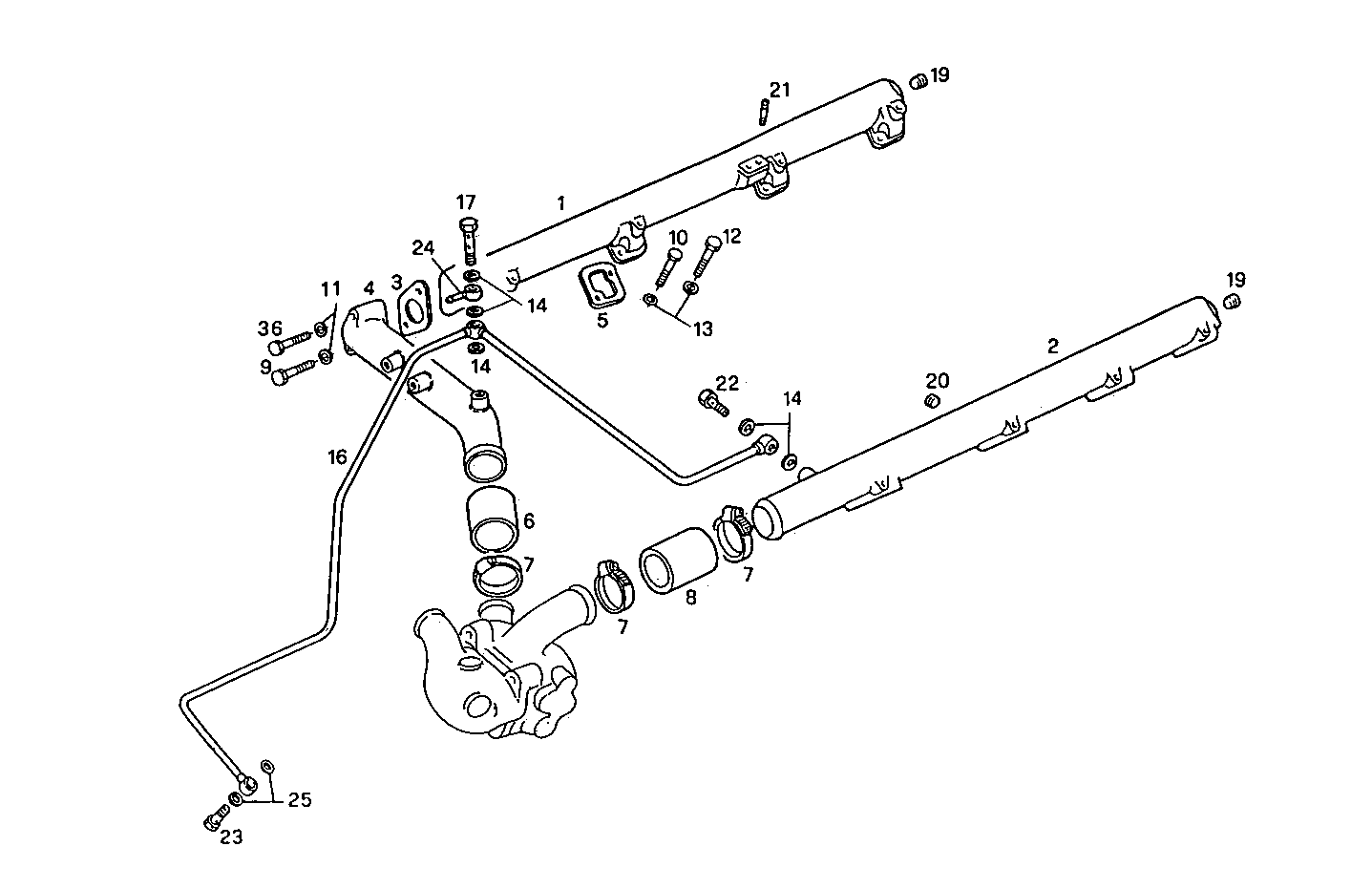

| Item |
Part number |
Description |
|
1 |
4821286 |
WATER MANIFOLD |
|
2 |
4821288 |
WATER MANIFOLD |
|
3 |
98469577 |
FLAT ENGINE GASKET |
|
4 |
4807830 |
WATER PIPE |
|
5 |
98418857 |
FLAT ENGINE GASKET |
|
6 |
98420476 |
WATER HOSE |
|
7 |
17764891 |
CLIP Ø40/60 MM |
|
8 |
98420477 |
WATER HOSE |
|
9 |
16044621 |
HEXAGON BOLT M8X70 MM |
|
10 |
16606624 |
HEXAGON BOLT M8X80 MM |
|
11 |
17089874 |
WASHER Ø8X22 MM |
|
12 |
16605924 |
SCREW M8X40 MM |
|
13 |
12646721 |
WASHER Ø8X20 MM |
|
14 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
|
16 |
8022753 |
WATER PIPE |
|
17 |
61320123 |
SCREW CONNECTOR |
|
19 |
16994950 |
PLUG M24X1,5 |
|
20 |
14325401 |
LOCK PLUG M24X1,5 |
|
21 |
13516521 |
STUD M8X12 MM |
|
22 |
4864083 |
SCREW CONNECTOR M14X1,5X30 MM |
|
23 |
4818526 |
SCREW CONNECTOR |
|
24 |
98413896 |
PIPE SOCKET Ø8 MM |
|
25 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
