8281SRE10.00

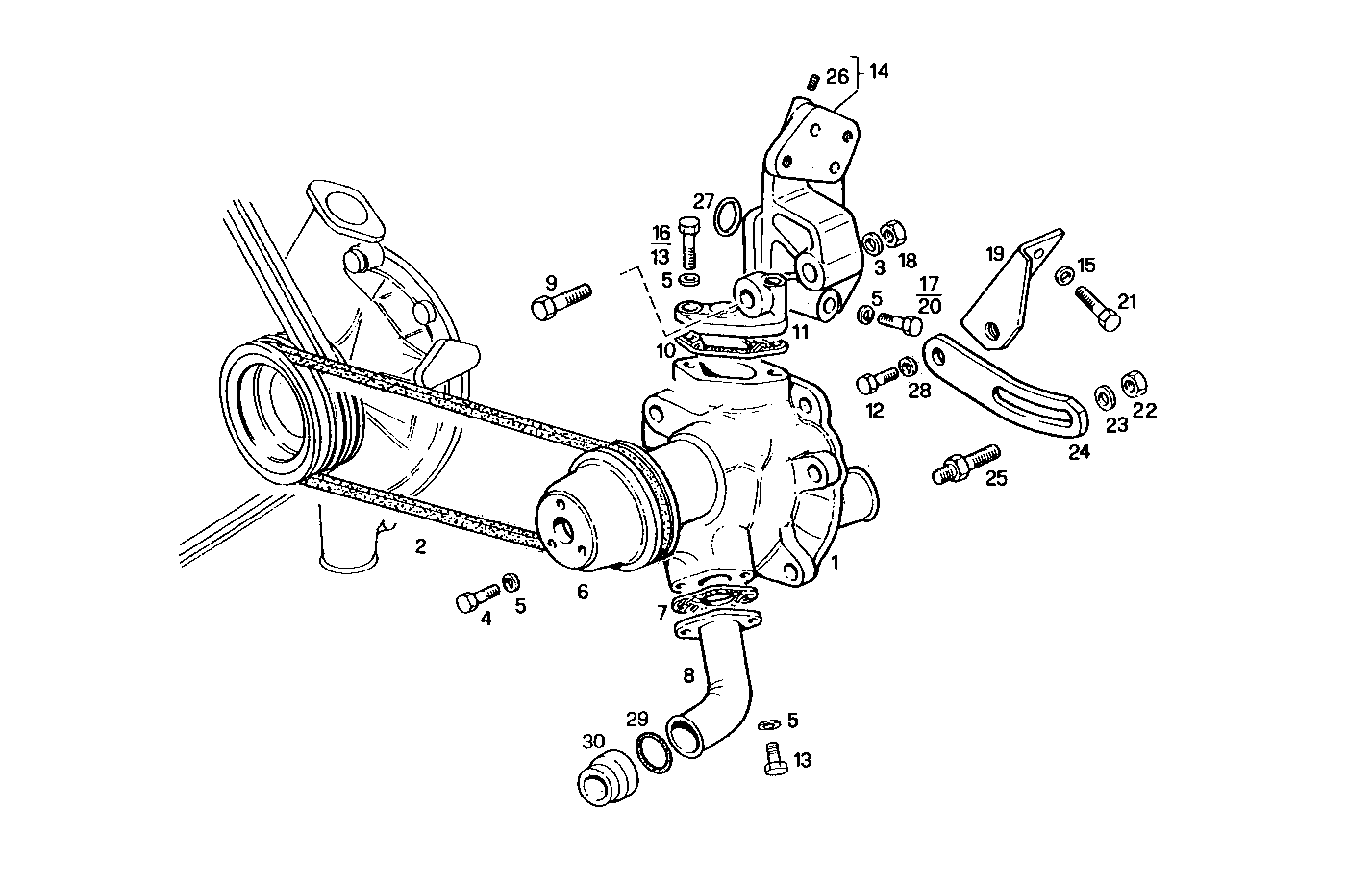

3320.006 AUXILIARY WATER PUMP

Iveco/FPT AUXILIARY WATER PUMP

Item Part number Description
1 8108385 WATER PUMP ASSY
2 4809002 WATER PUMP BELT KLEBER
3 4622654 WASHER
4 16605624 HEXAGON BOLT M8X25 MM (8.8)
5 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
6 8010795 PULLEY
7 98418621 GASKET
8 8100081 WATER PIPE
9 16611024 HEXAGON BOLT M12X1,75X100 MM
10 4767560 GASKET
11 8108706 COVER
12 16607524 HEXAGON BOLT M10X1,5X20 MM (8.8)
13 16605524 HEXAGON BOLT M8X20 MM
14 8014677 SUPPORT
15 10738101 WASHER
16 16606224 HEXAGON BOLT M8X55 MM
17 16606324 HEXAGON BOLT M8X60 MM
18 17157124 NUT M12
19 8013650 RETAINER
20 16605734 HEXAGON BOLT M8X30 MM
21 11255921 HEXAGON BOLT M14X1,5X40 MM
22 17157221 NUT M10X1,25
23 4513436 SUPPORT RING Ø10X21X2 MM
24 8108378 BELT TENSIONER
25 8108386 SPACING BAR
26 17436774 THREADED INSERT M6
27 17281981 O-RING Ø18,7 MM SP=2,6 MM
28 17090174 SPRING WASHER Ø10X20 MM
29 17764891 CLIP Ø40/60 MM
30 8813238 WATER HOSE
