8281SRE10.00

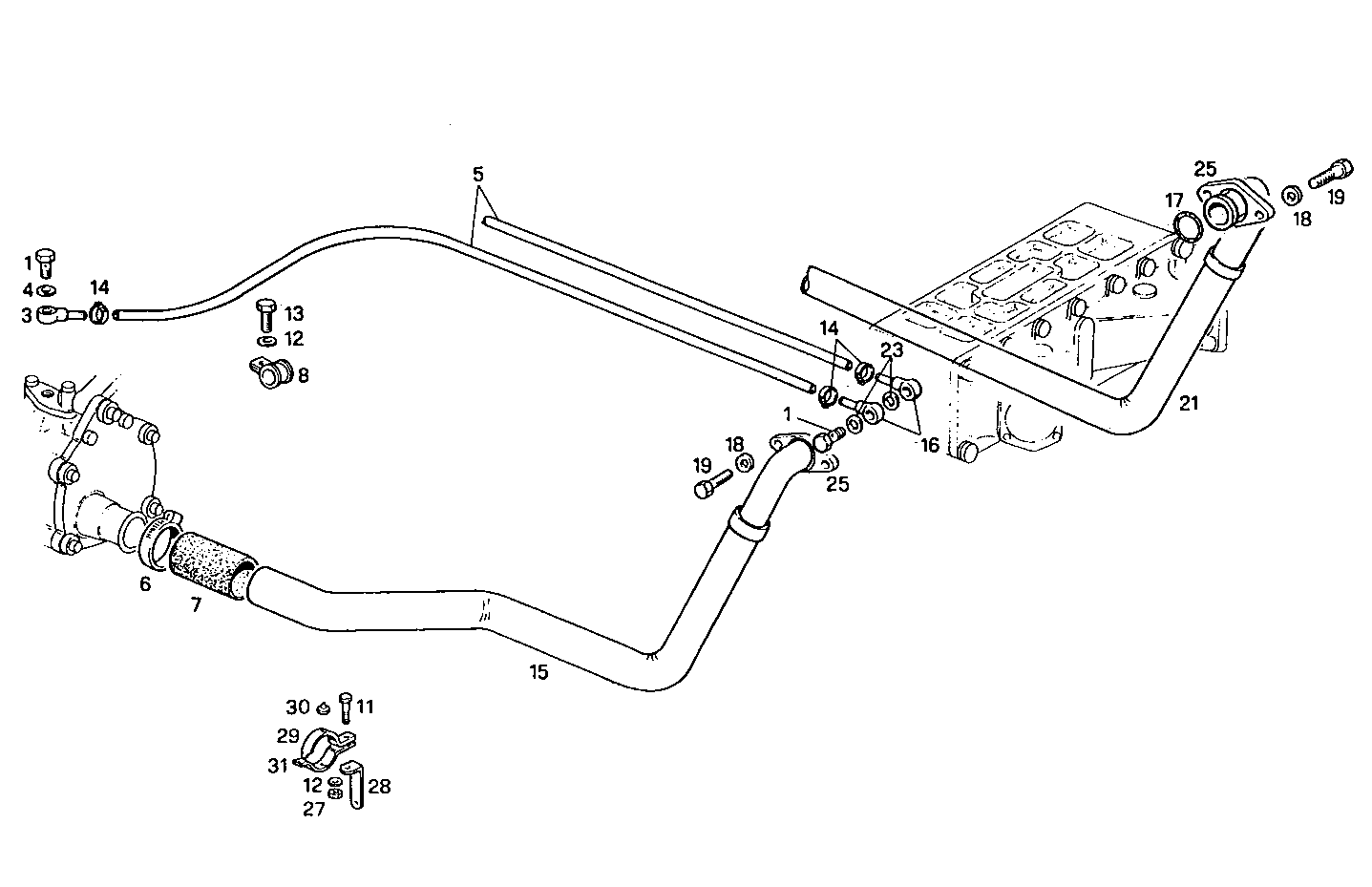

3330.007 AUXILIARY WATER LINES

Iveco/FPT AUXILIARY WATER LINES

Item Part number Description
1 8009696 SCREW CONNECTOR M12X1,5X25
3 4935134 OIL LINE
4 4858606 GASKET Ø10X14X1 MM
5 8017220 WATER HOSE
6 98490783 CLIP Ø55-65 MM
7 8106646 RUBBER SLEEVE
8 17316790 CLIP
11 16605524 HEXAGON BOLT M8X20 MM
12 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
13 16605424 SCREW M8X16 MM (8.8)
14 18053911 CLIP
15 8014621 WATER PIPE
16 98405514 PIPE SOCKET
17 17289981 O-RING Ø53,57X3,53 MM
18 17091074 WASHER Ø12X24X2,8 MM
19 17495034 SPRING WASHER M12X1,75X25
21 8022774 WATER PIPE
23 98474306 WASHER Ø12X20 MM SP=1,9 MM
25 8108682 FLANGE
27 17037931 HEXAGON NUT M8X1,25
28 8016876 RETAINER
29 8113298 CLAMP
30 1366290 RUBBER LUG
31 8113299 CLAMP
