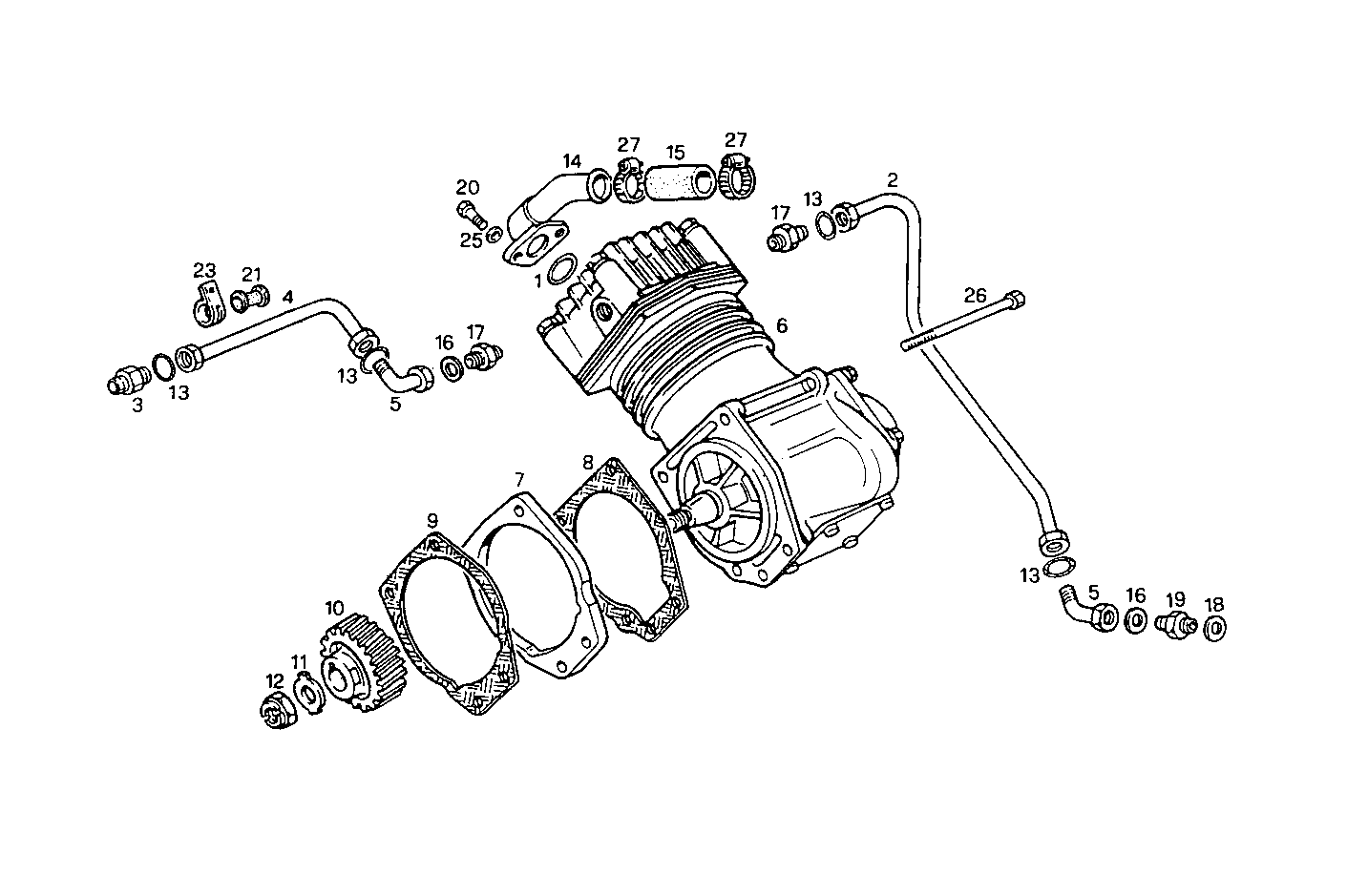

| Item |
Part number |
Description |
|
1 |
619376 |
FLAT ENGINE GASKET |
|
2 |
8027304 |
WATER PIPE |
|
3 |
4821148 |
SCREW CONNECTOR [up to 307842] |
|
4 |
8027699 |
WATER PIPE |
|
5 |
16512111 |
PIPE SOCKET |
|
6 |
99440235 |
AIR COMPRESSOR ASSY BENDIX |
|
7 |
4672628 |
SPACING BAR |
|
8 |
4864032 |
FLAT ENGINE GASKET |
|
9 |
4715152 |
FLAT ENGINE GASKET |
|
10 |
4688638 |
COMP. DRIVE GEAR |
|
11 |
4709364 |
LOCKING PLATE |
|
12 |
99471892 |
HEXAGON NUT |
|
13 |
8024648 |
O-RING Ø10 MM |
|
14 |
4609413 |
AIR PIPE/DUCT |
|
15 |
4722197 |
RUBBER SLEEVE |
|
16 |
4858609 |
WASHER Ø16X22 MM SP=1,5 MM |
|
17 |
4802309 |
PIPE SOCKET |
|
18 |
98429280 |
SEAL GASKET Ø20X26 MM SP=1,5 MM |
|
19 |
4741602 |
THREADED UNION LEFT |
|
20 |
16043521 |
SCREW M8X22 |
|
21 |
4757122 |
RUBBER PAD |
|
23 |
4774442 |
FASTENING BRACKET |
|
25 |
11193879 |
SPRING WASHER Ø8X16 MM |
|
26 |
15969921 |
SCREW |
|
27 |
12173890 |
CLIP Ø25/40 MM |
