8281SRE10.00

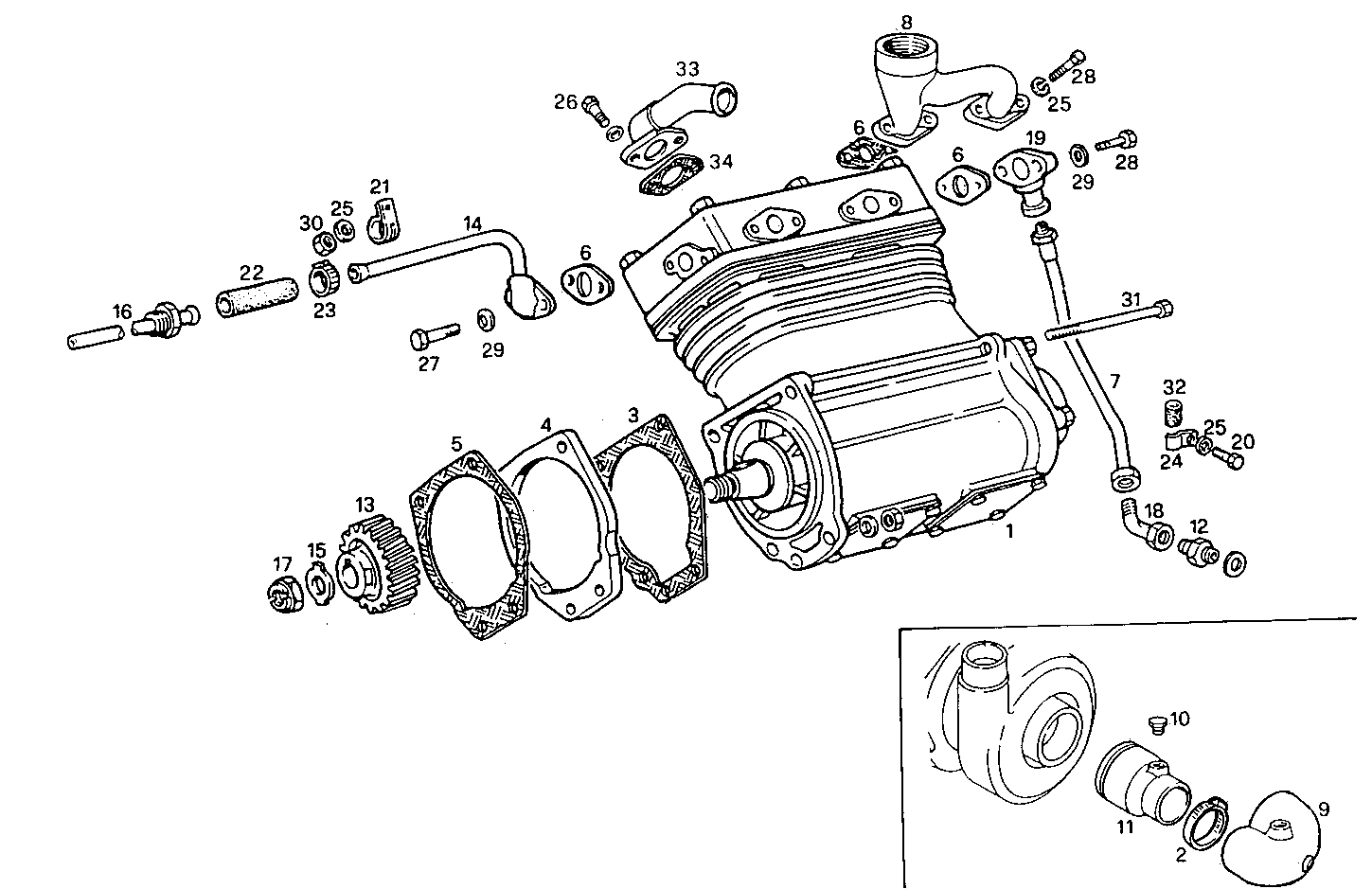

A18060007 AIR COMPRESSOR - 400cc MARELLI

Iveco/FPT AIR COMPRESSOR

Item Part number Description
1 98421114 AIR COMPRESSOR ASSY MARELLI
2 17765191 CLIP Ø70/90 MM
3 4864032 FLAT ENGINE GASKET
4 4672628 SPACING BAR
5 4715152 FLAT ENGINE GASKET
6 4644451 FLAT ENGINE GASKET
7 4740088 WATER PIPE
8 4717885 CONNECTING PIPE
9 42051703 RUBBER SLEEVE
10 8105144 PLUG
11 8109384 SPACING BAR
12 4741602 THREADED UNION LEFT
13 4688638 COMP. DRIVE GEAR
14 4765148 WATER PIPE
15 4709364 LOCKING PLATE
16 4685280 THREADED UNION
17 4709365 HEXAGON NUT
18 16512111 PIPE SOCKET
19 4765060 ELBOW COUPLING [from 307843]
20 16043221 HEXAGON BOLT M8X16 MM
21 10450490 PIPE CLIP Ø16 MM
22 4787358 WATER HOSE
23 12173690 CLIP Ø14-22 MM
24 4744442 RETAINER
25 11193879 SPRING WASHER Ø8X16 MM
26 16044021 HEXAGON BOLT M8X1,25X40 MM
27 16043424 HEXAGON BOLT M8X20 MM
28 16043621 HEXAGON BOLT M8X25 MM
30 17037931 HEXAGON NUT M8X1,25
31 16162221 HEXAGON BOLT M10X290 MM
32 4757122 RUBBER PAD
33 4774579 SUCTION LINE
34 4524448 GASKET
