8281SRE10.00

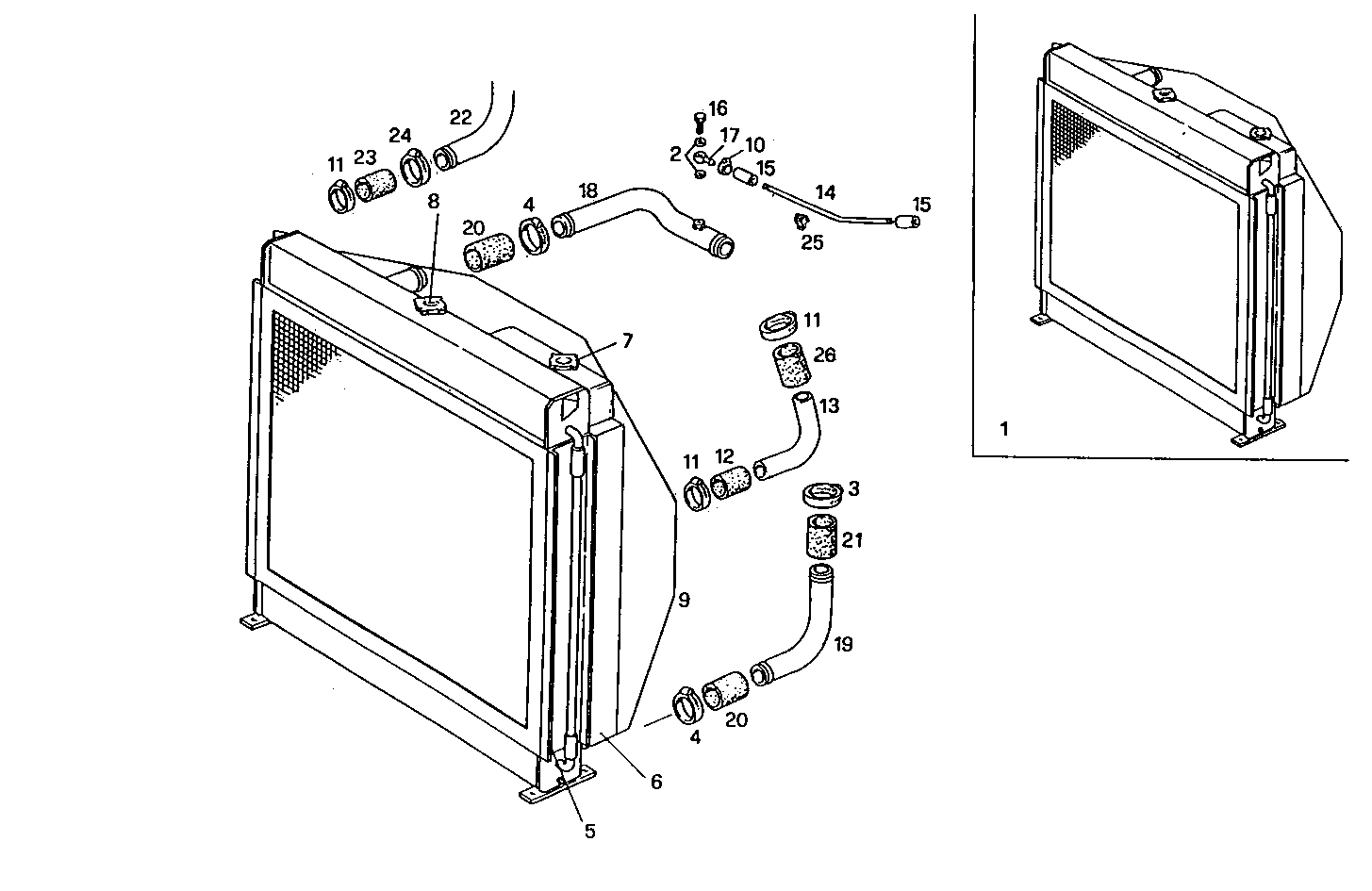

A22480005 RADIATOR 2 CIRCUITS AIR/WATER - loose
| Item | Part number | Description |
|---|---|---|
| 1 | 8032291 | WATER RADIATOR ASSY |
| 2 | 4858607 | WASHER �12X17 MM SP=1,5 MM |
| 3 | 17765191 | CLIP �70/90 MM |
| 4 | 17765091 | CLIP �60/80 MM |
| 5 | 8025192 | WATER RADIATOR RT |
| 6 | 8028279 | INTERCOOLER |
| 7 | 4927808 | PLUG 0,5 BAR |
| 8 | 8107632 | RADIATOR PLUG |
| 9 | 8032292 | AIR HOOD |
| 10 | 18087991 | CLIP �8/16 MM |
| 11 | 17764991 | CLIP �50/70 MM |
| 12 | 17743887 | RUBBER SLEEVE |
| 13 | 8032199 | WATER PIPE |
| 14 | 8008573 | AIR PIPE/DUCT |
| 15 | 4927825 | WATER HOSE |
| 16 | 8009696 | SCREW CONNECTOR M12X1,5X25 |
| 17 | 98405514 | PIPE SOCKET |
| 18 | 8029449 | WATER PIPE |
| 19 | 8029266 | WATER PIPE |
| 20 | 8107383 | RUBBER SLEEVE �60 MM |
| 21 | 8110485 | RUBBER SLEEVE |
| 22 | 8032200 | WATER PIPE |
| 23 | 8109342 | CONNECTOR SLEEVE |
| 24 | 17764891 | CLIP �40/60 MM |
| 26 | 8106646 | RUBBER SLEEVE |
