8281SRE10.00

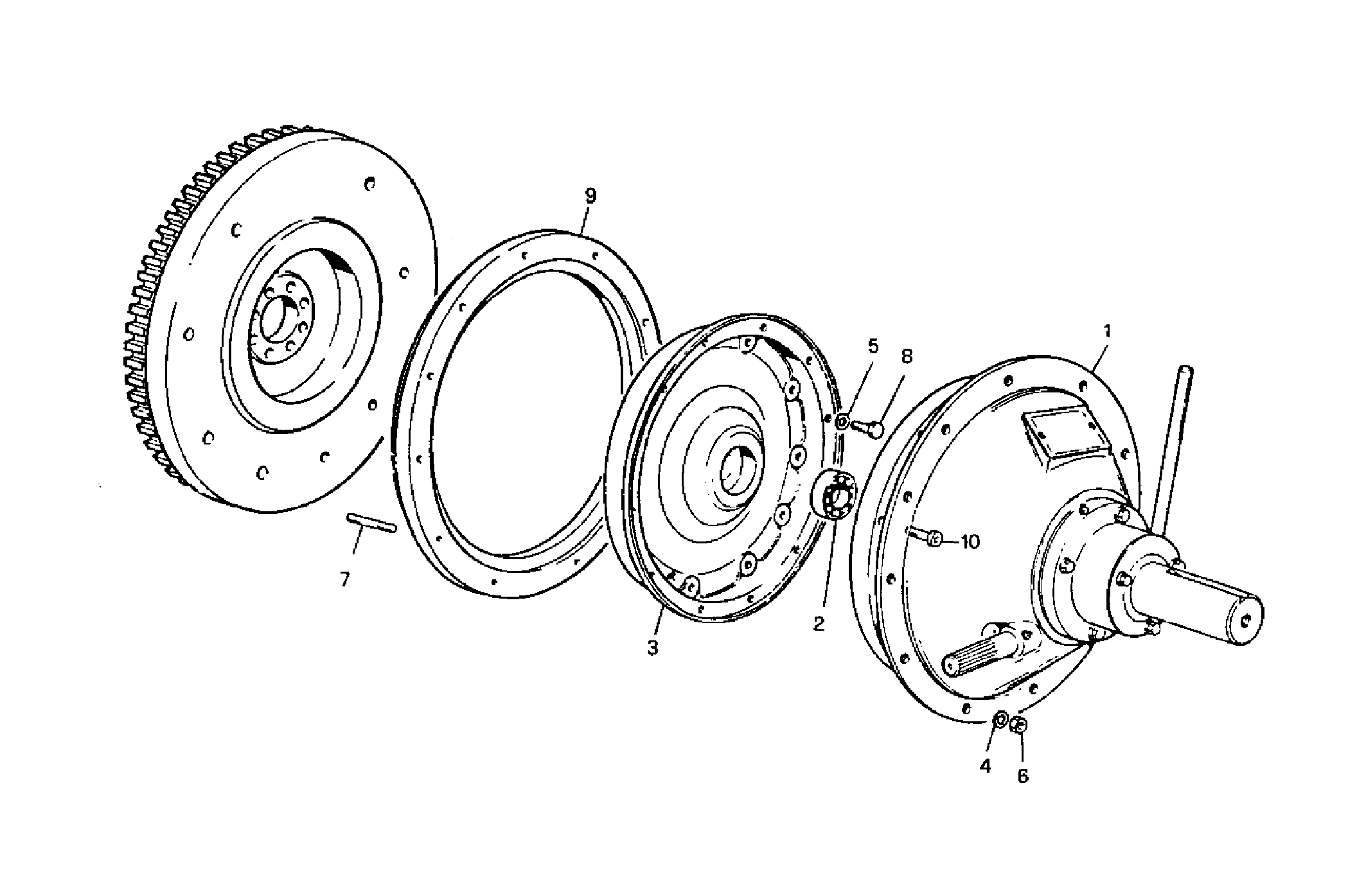

A27260010 TRIDISC INDUSTRIAL CLUTCH - TECHNODRIVE 14''
| Item | Part number | Description |
|---|---|---|
| 1 | 8015238 | CLUTCH ASSY BD 3300 / 450 - SAE 1 |
| 2 | 8005041 | DRIVE BEARING |
| 3 | 8011762 | FLANGE |
| 4 | 17090174 | SPRING WASHER Ø10X20 MM |
| 5 | 11198679 | SPRING WASHER Ø13 MM |
| 6 | 17038221 | HEXAGON NUT M10 |
| 7 | 17368824 | STUD |
| 8 | 14331321 | SCREW |
| 9 | 4931829 | SPACING BAR |
| 10 | 14332520 | SCREW |
