Catalogue Menu
8281SRE10.00

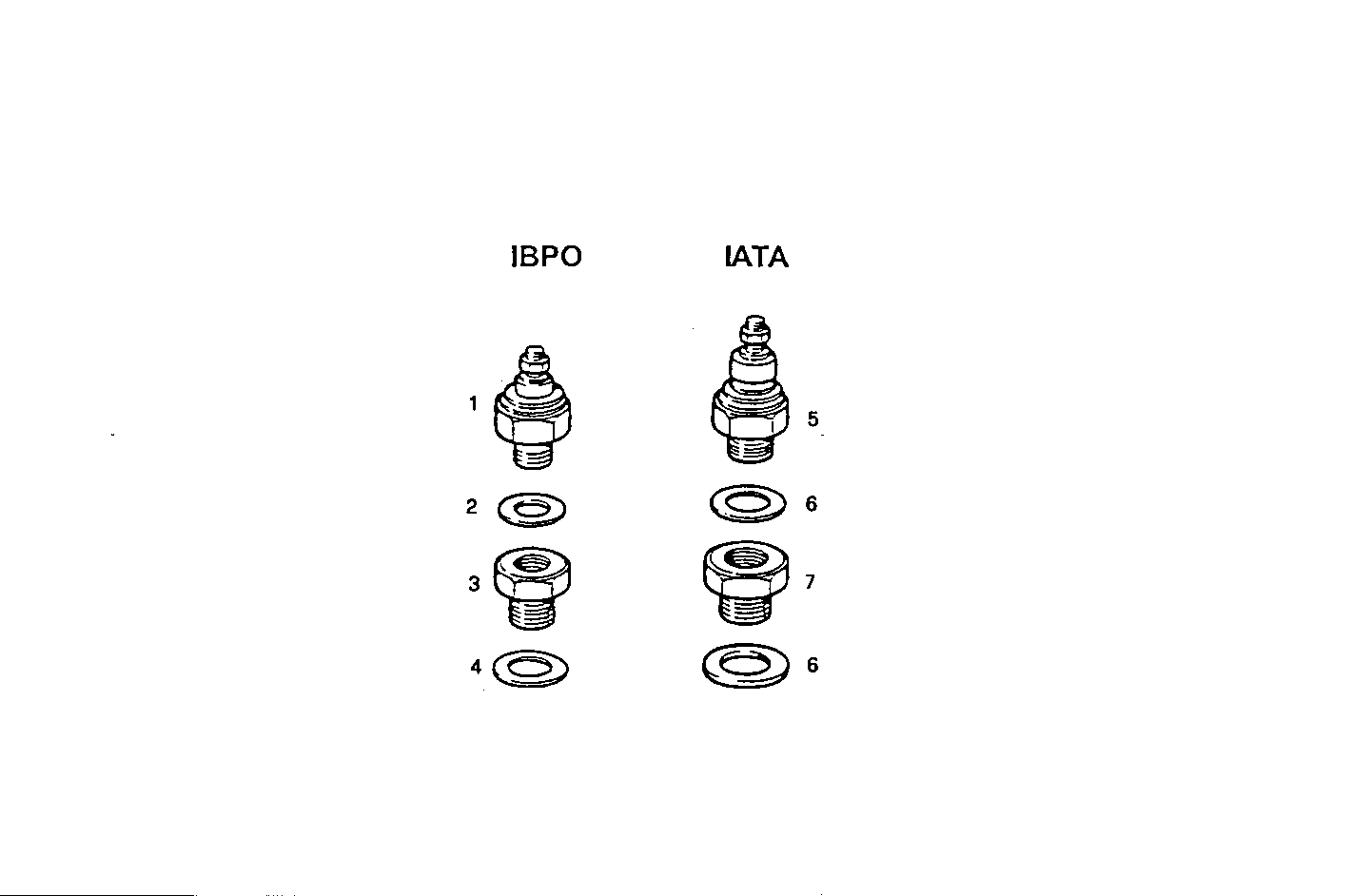

A38610010 SENDER UNITS HWT/LOP - 12/24V
| Item | Part number | Description |
|---|---|---|
| 1 | 8104141 | TRANSMITTER IATA |
| 2 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 3 | 4928330 | PIPE SOCKET M16X1,5/M14X1,5 |
| 4 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
| 5 | 8104140 | TRANSMITTER IBPO |
| 6 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 7 | 4802434 | THREADED UNION M12X1,5 |
