8281SRG75.10A500

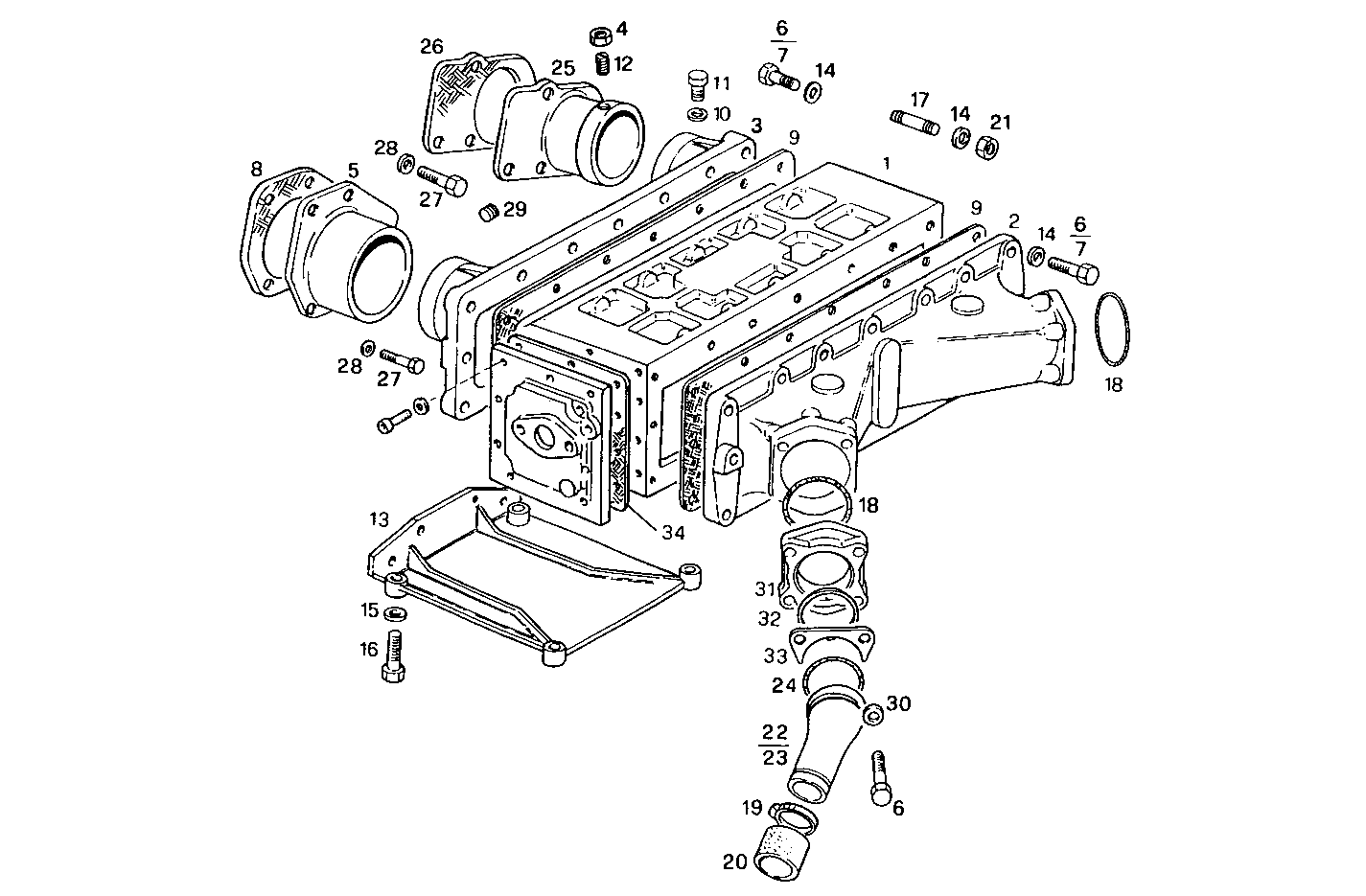

2460.034 AIR - WATER HEAT EXCHANGER

Iveco/FPT AIR - WATER HEAT EXCHANGER

Item Part number Description
1 8028717 AIR/WATER HEAT EXCHANGER
2 8105947 AIR HOOD
3 8024498 AIR HOOD
4 17037821 HEXAGON NUT M6X1
5 8108540 AIR MANIFOLD LEFT
6 16605924 SCREW M8X40 MM
7 16605624 HEXAGON BOLT M8X25 MM (8.8)
8 8013481 INTAKE ELBOW GASK.
9 8008906 GASKET
10 4858608 SEAL GASKET dia.14x19,5x1,5
11 16992311 LOCK PLUG M14X1,5
12 18040124 SCREW
13 8110254 SUPPORT
14 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
15 17090174 SPRING WASHER Ø10X20 MM
16 11307021 HEXAGON BOLT M10X40 MM
17 16730924 STUD
18 17291281 O-RING Ø94,84 MM SP=3,53 MM
19 17768191 CLIP
20 4865234 RUBBER SLEEVE
21 17037931 HEXAGON NUT M8X1,25
22 8022777 AIR PIPE/DUCT LEFT
23 8022778 BREATHER PIPE RIGHT
24 17290781 O-RING Ø78,97X3,53 MM
25 8108542 WATER PIPE RIGHT
26 8013482 INTAKE ELBOW GASK.
28 17089774 SPRING WASHER Ø8,4X22 MM SP=2,4 MM
29 4742387 PLUG
31 8105950 FLANGE
32 8105951 CIRCLIP
33 8105952 PLATE
34 8112975 GASKET
