8281SRi10.00

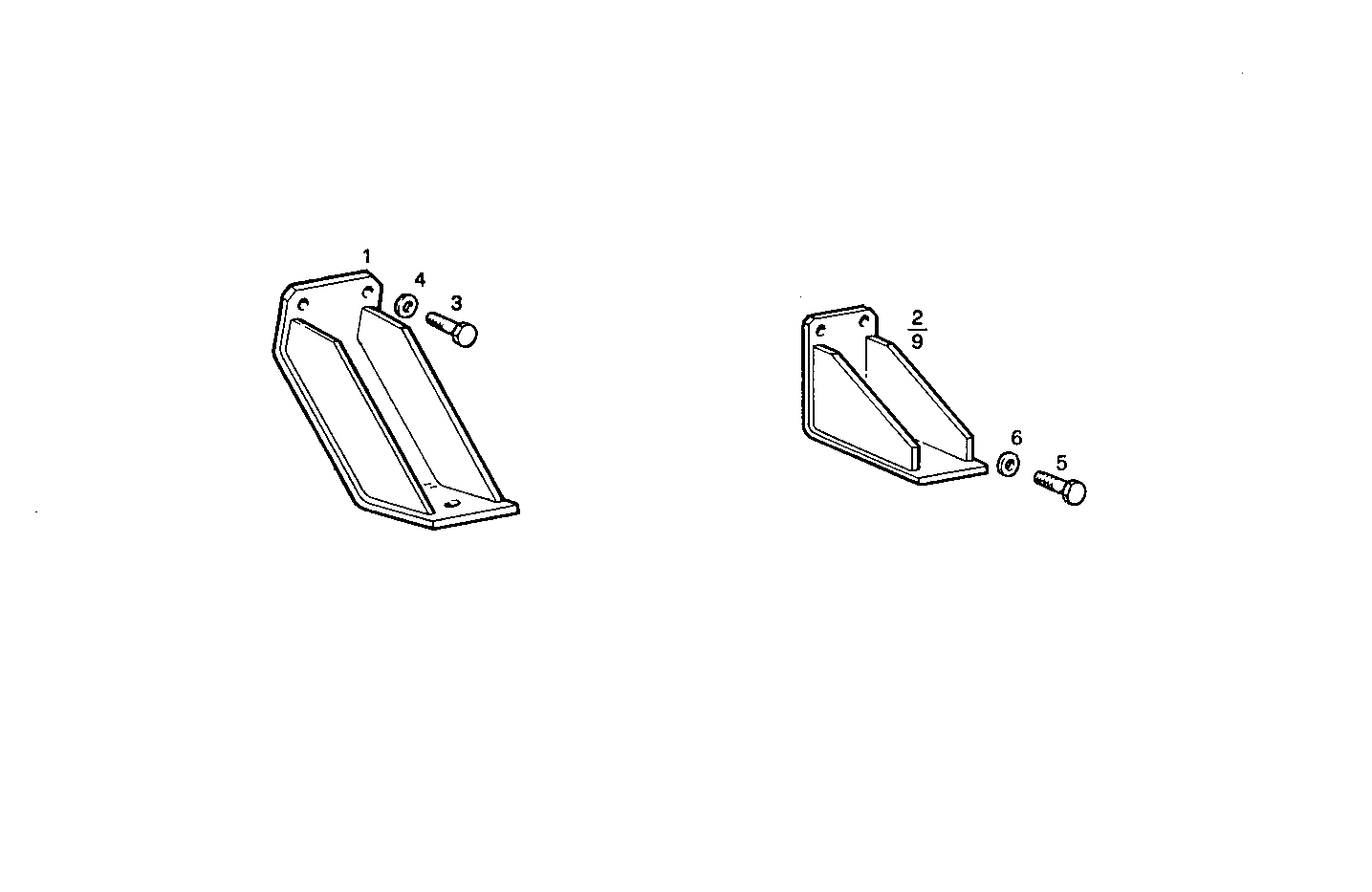

A04000021 RIGID MOUNTING - with flyweel housing with 2 starter motor seat
| Item | Part number | Description |
|---|---|---|
| 1 | 4930950 | ENGINE SUSPENSION FRONT |
| 2 | 4932611 | ENGINE SUSPENSION LEFT |
| 3 | 15540421 | SCREW M12X1,25X30 |
| 4 | 11190779 | SPRING WASHER Ø12X24 SP=2,8 MM |
| 5 | 15894121 | SCREW |
| 6 | 11191679 | SPRING WASHER Ø18X36 MM SP=4,2 MM |
| 9 | 4930951 | ENGINE SUSPENSION RIGHT |
