8281SRi10.00

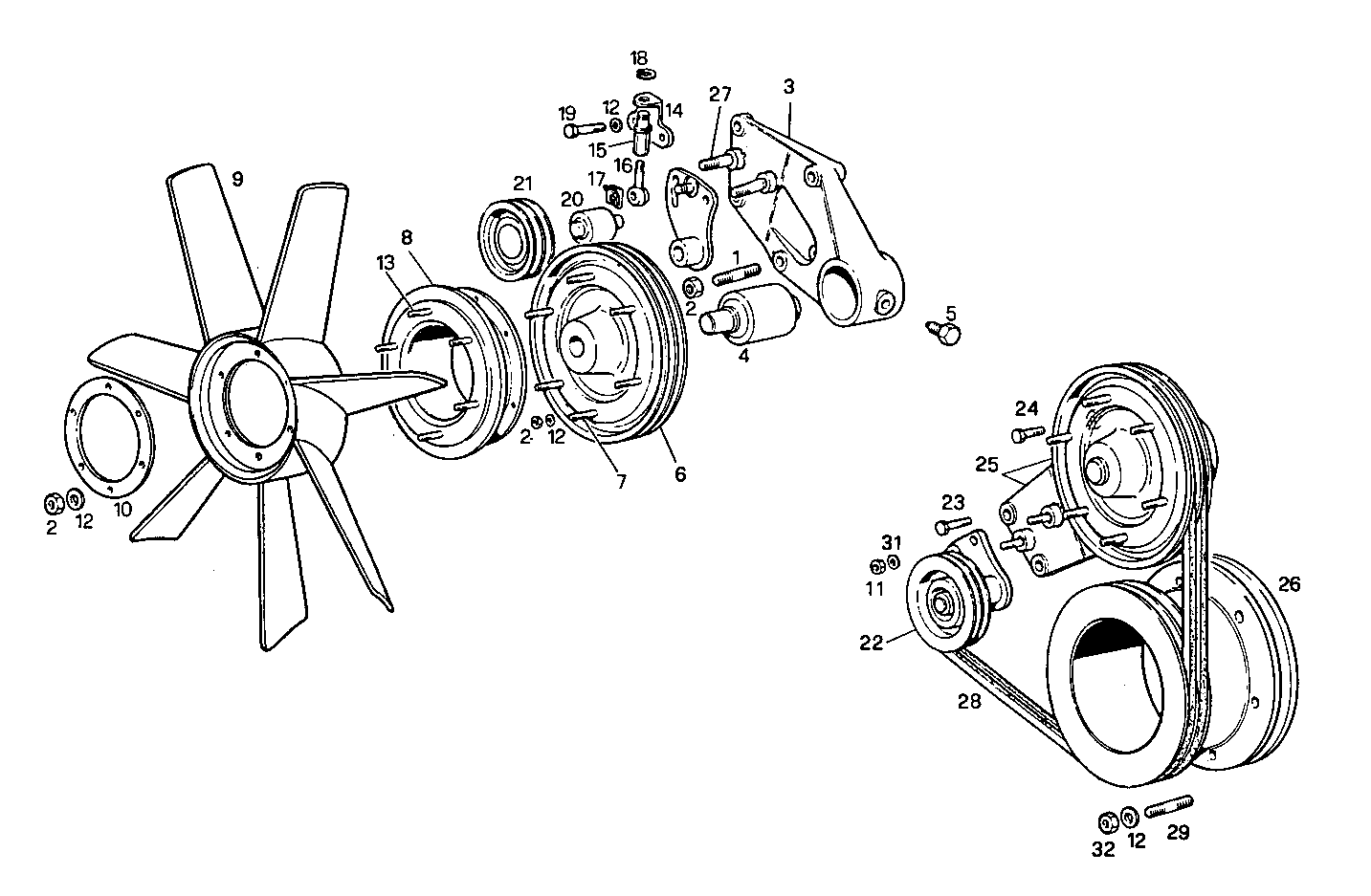

A08010027 PUSHER FAN - high position
| Item | Part number | Description |
|---|---|---|
| 1 | 16748124 | STUD |
| 2 | 17037931 | HEXAGON NUT M8X1,25 |
| 3 | 8106656 | SUPPORT |
| 4 | 4708256 | ENGINE BEARINGS |
| 5 | 4606033 | SCREW |
| 6 | 8110417 | PULLEY |
| 7 | 16729324 | STUD M8X12X20 MM |
| 8 | 4936688 | HUB |
| 9 | 8021733 | FAN Ø700 MM |
| 10 | 4933279 | RING |
| 11 | 17157221 | NUT M10X1,25 |
| 12 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 13 | 13516621 | STUD M8X16 MM |
| 14 | 4718512 | RETAINER |
| 15 | 4699000 | NUT |
| 16 | 4699001 | TIE ROD |
| 17 | 4699549 | CLIP |
| 18 | 17081976 | CIRCLIP |
| 19 | 16605524 | HEXAGON BOLT M8X20 MM |
| 20 | 4731484 | ENGINE BEARINGS |
| 21 | 4732585 | WATER PUMP PULLEY |
| 22 | 4936685 | BELT TENSIONER ASSY |
| 23 | 16045824 | SCREW M8X130 |
| 24 | 16046024 | HEXAGON BOLT |
| 25 | 8106675 | SUPPORT ASSY |
| 26 | 8010843 | PULLEY |
| 27 | 13449721 | STUD M10X15X30 |
| 28 | 8110434 | V-BELT KIT |
| 29 | 16747224 | STUD M8X1,25X50 MM |
| 31 | 4513436 | SUPPORT RING Ø10X21X2 MM |
| 32 | 17157021 | NUT M8X1,25 |
