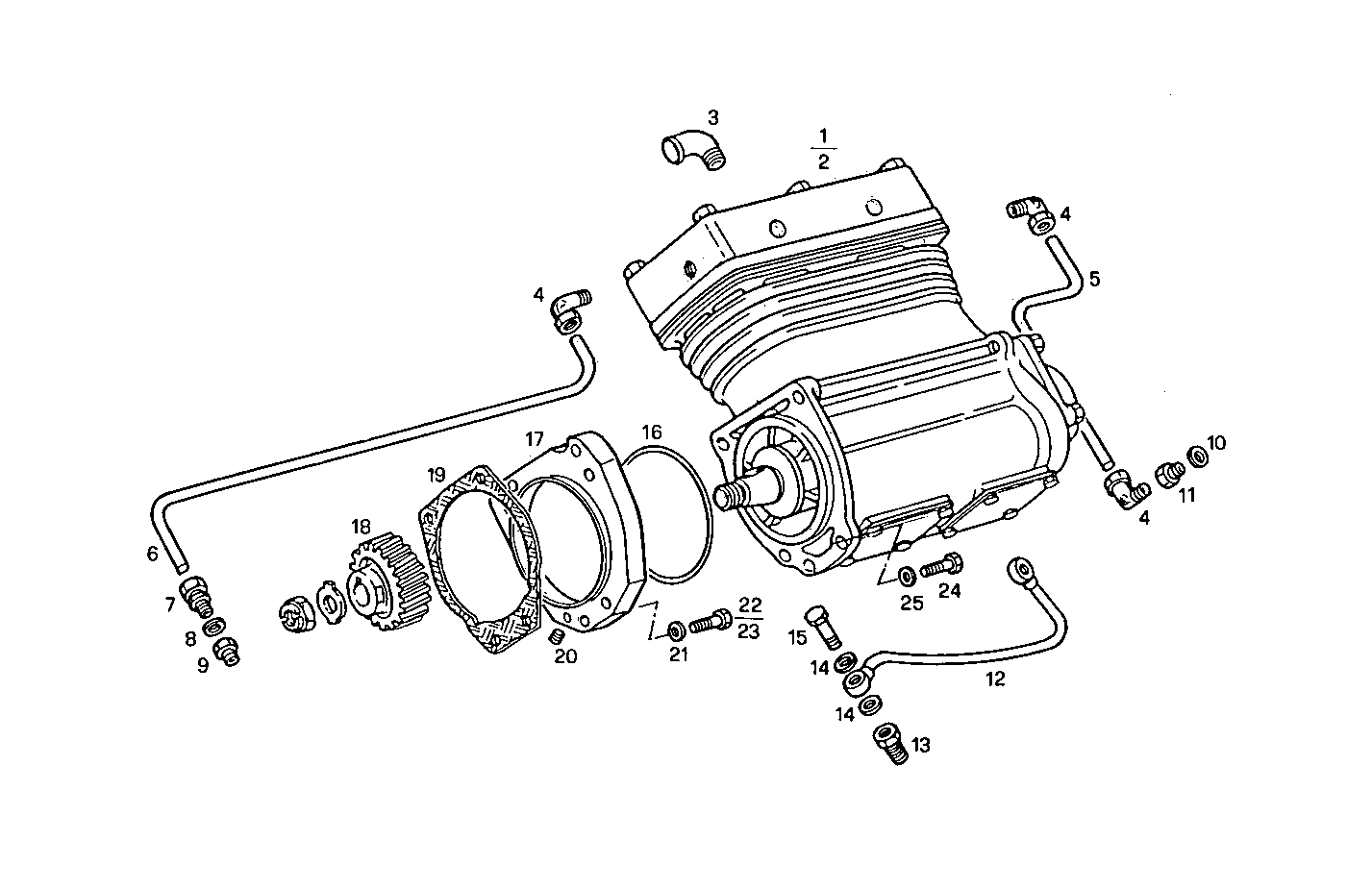

| Item |
Part number |
Description |
|
1 |
8005487 |
AIR COMPRESSOR ASSY |
|
2 |
8109451 |
AIR COMPRESSOR ASSY |
|
3 |
8110267 |
PIPE SOCKET |
|
4 |
8110268 |
PIPE SOCKET M16X1.5 |
|
5 |
8110271 |
WATER PIPE |
|
6 |
8110270 |
SUCTION LINE |
|
7 |
8110269 |
PIPE SOCKET |
|
8 |
10278660 |
SEAL GASKET Ø16X22 MM SP=1 MM |
|
9 |
4917956 |
PIPE SOCKET |
|
10 |
10263360 |
SEAL GASKET 20x26x1 |
|
11 |
4741853 |
PIPE SOCKET |
|
12 |
8014253 |
OIL LINE |
|
13 |
8110258 |
PIPE SOCKET |
|
14 |
10260130 |
GASKET |
|
15 |
4568946 |
SCREW CONNECTOR |
|
16 |
14466581 |
O-RING Ø3,53X94,84 MM |
|
17 |
8109486 |
FLANGE |
|
18 |
8109521 |
GEAR |
|
19 |
4715152 |
FLAT ENGINE GASKET |
|
20 |
10151011 |
THREADED PLUG M6X1 |
|
21 |
10571879 |
WASHER |
|
22 |
14308821 |
SCREW M10X110 |
|
23 |
14307521 |
CYLIND-HEAD SCREW M10X1,25X30 MM |
|
24 |
11343721 |
HEXAGON BOLT M10X65 MM |
|
25 |
11190579 |
SPRING WASHER Ø10X20 MM SP=2,3 |
