8281SRi10.00

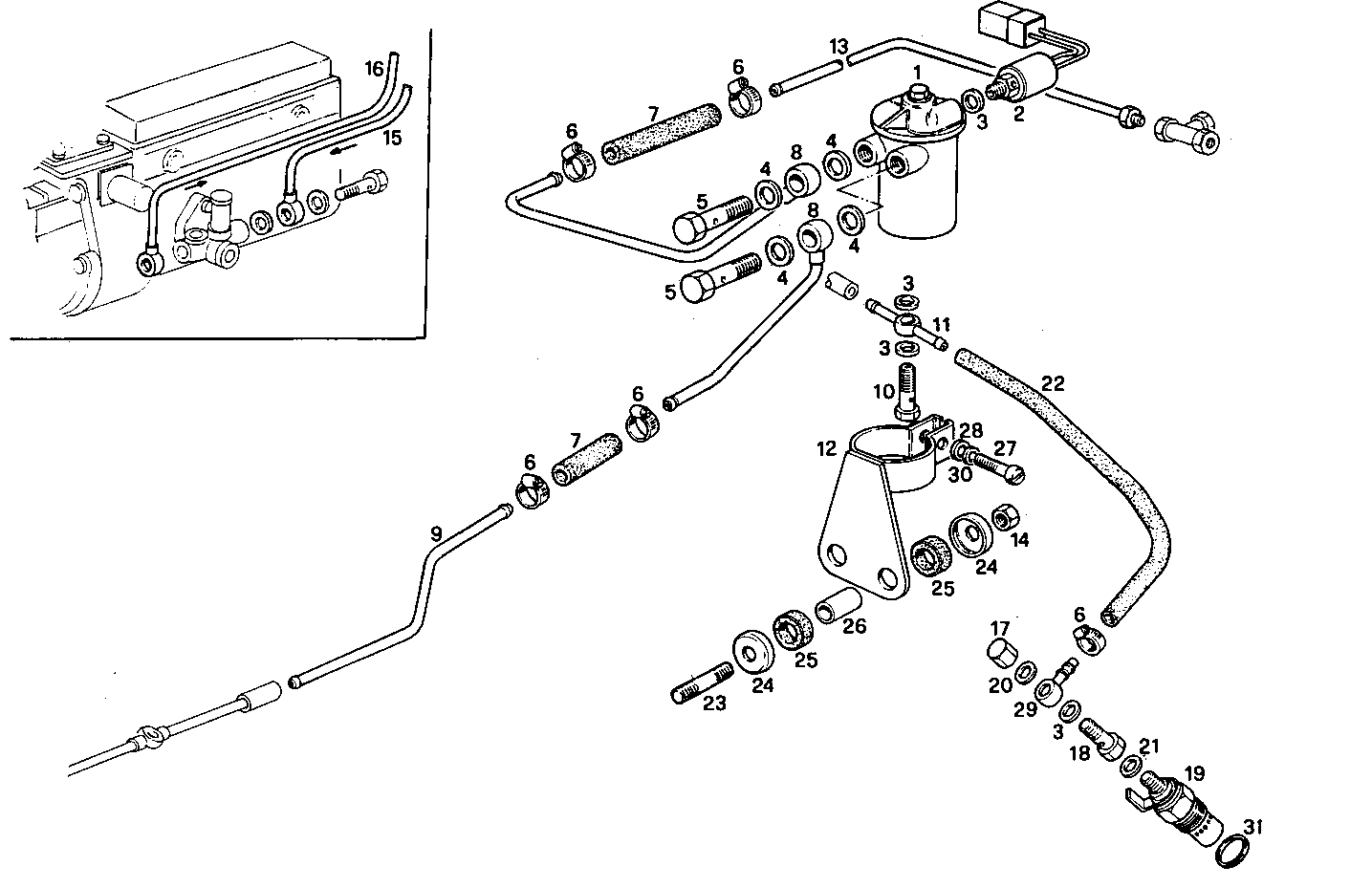

A20010017 THERMOSTARTER - 24V

Iveco/FPT THERMOSTARTER

Item Part number Description
1 4815431 TANK FOR PREHEATER
2 98414208 ELECT.V.VE.PREHEAT
3 10260060 SEAL GASKET Ø8X12X1 MM
4 10296160 SEAL GASKET Ø12X18 MM SP=1 MM
5 10181717 SCREW CONNECTOR M12X1,5X23
6 17764292 HOSE CLIP Ø10/16 MM
7 1906487 KIT WHEEL BEARINGS
8 8109997 PIPE SOCKET
9 8108689 BREATHER PIPE
10 11903717 SCREW CONNECTOR M8
11 4647659 BANJO COUPLING
12 4617260 SUPPORT
13 8109016 FUEL LINE
14 17037931 HEXAGON NUT M8X1,25
15 8005682 FUEL LINE
16 8005681 FUEL LINE
17 11902017 LOCK PLUG M8
18 4551101 SCREW CONNECTOR
19 4221168 THERMO-STARTER 24V
20 10279560 SEAL GASKET Ø22,2 MM
21 4557649 WASHER
22 19018087 HOSE
23 13517221 STUD M8X12X30 MM
24 4023904 CAP
25 4023905 DOWEL
26 4617262 SPACING BAR
27 10389911 CYLIND-HEAD SCREW M5X25 MM
28 17709971 WASHER
29 4551099 SWIVEL COUPLING
30 17094511 WASHER
31 10263460 WASHER Ø22X28X1,5 MM
