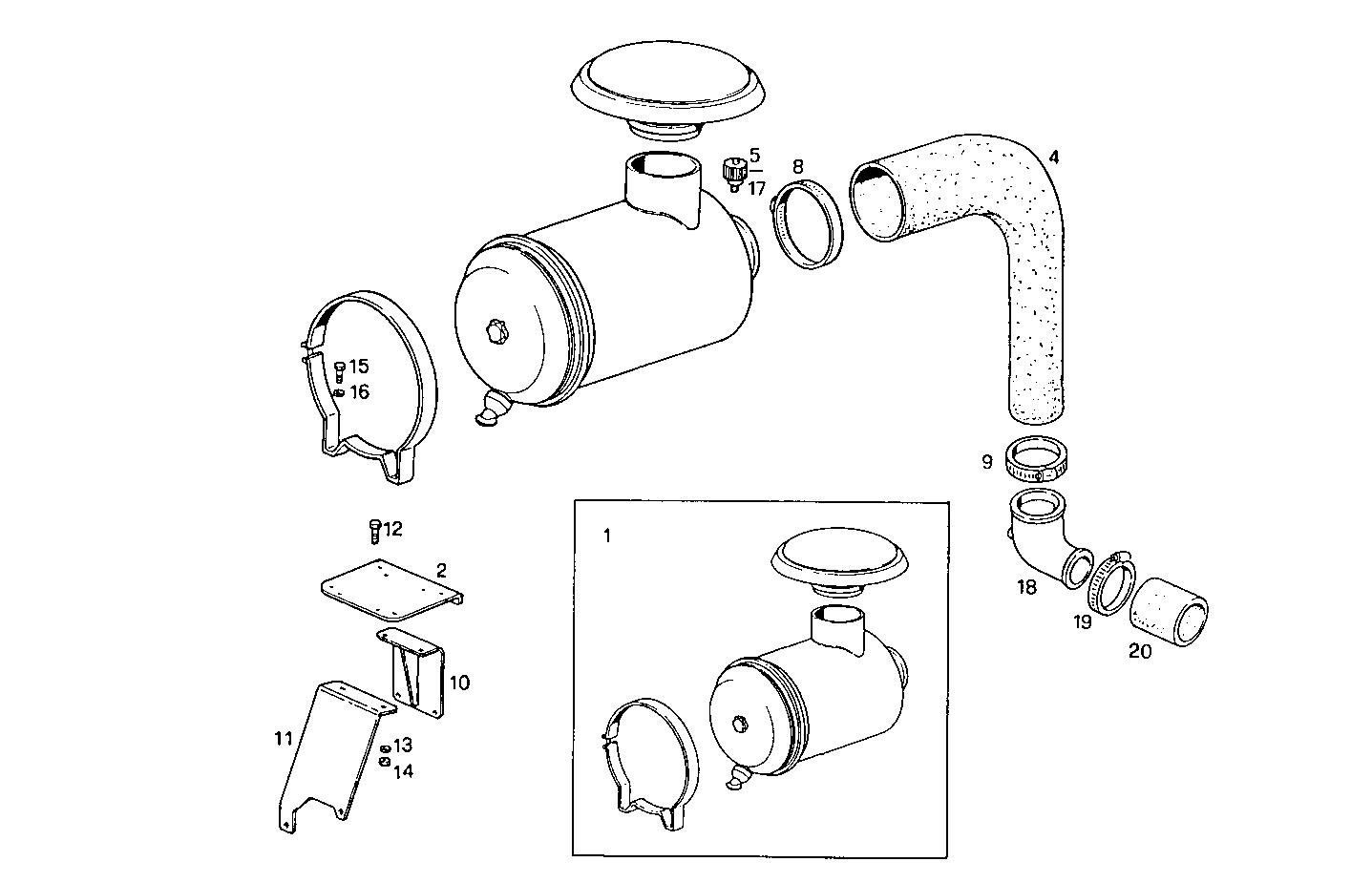

| Item |
Part number |
Description |
|
1 |
8016973 |
AIR CLEANER ASSY |
|
2 |
8018478 |
SUPPORT |
|
4 |
8018479 |
FILTER HOSE |
|
5 |
4936137 |
CHOCKED FILTER INDIC. MECHANICAL |
|
8 |
17765991 |
CLIP |
|
9 |
17765491 |
CLIP Ø70/90 MM |
|
10 |
8110061 |
RETAINER |
|
11 |
8110059 |
RETAINER |
|
12 |
16603724 |
HEXAGON BOLT M6X20 MM (8.8) |
|
13 |
17089774 |
SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
|
14 |
17037931 |
HEXAGON NUT M8X1,25 |
|
15 |
16607624 |
SCREW M10X25 |
|
16 |
17090474 |
SPRING WASHER Ø10X27 MM SP=2,5 |
|
17 |
8022540 |
CHOCKED FILTER INDIC. MECHANICAL |
|
18 |
8109999 |
INTAKE ELBOW |
|
19 |
12174990 |
CLIP Ø77-97 MM |
|
20 |
8101505 |
RUBBER SLEEVE |
